8.4. Front Wall Panels

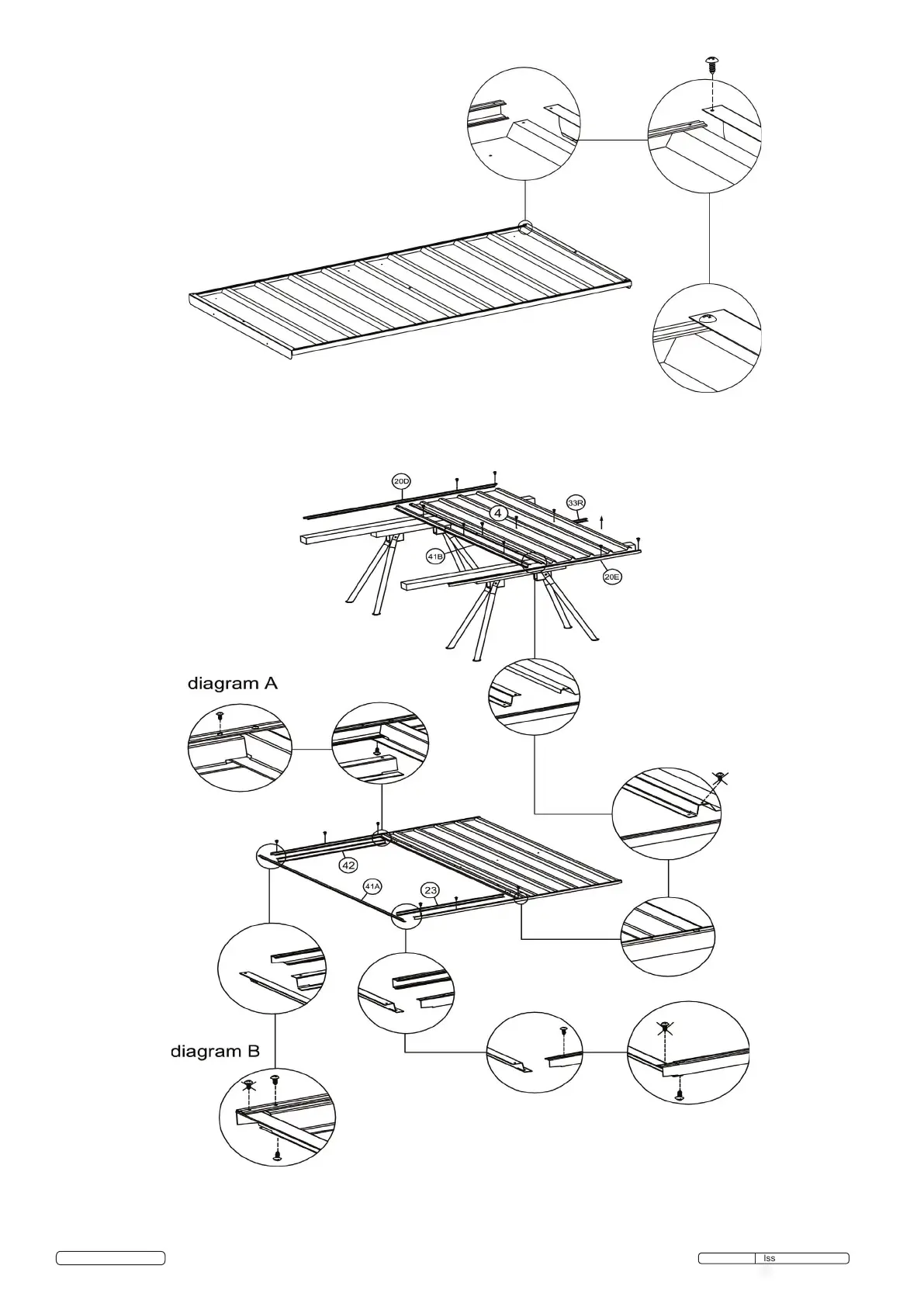

8.4.1. Place 4 the sheeting on the work table. Fit 20D the top channel, 20E the bottom channel, 41B the jamb (There are pre-drilled holes for
next step on both 4 and 41B and these must be aligned.) and 33R the mid wall channel to the sheeting and x them using the self tapping
screws. (NOT those with cross mark in this stage)
8.4.2. Fit the 41A the jamb, 42 the jamb and 23 the bottom channel and x them using the self tapping screws (NOT those with cross mark in
this stage). Be aware of the joint details per the diagrams. (DIAGRAM B IS AS THE SAME AS DIAGRAM A.)
