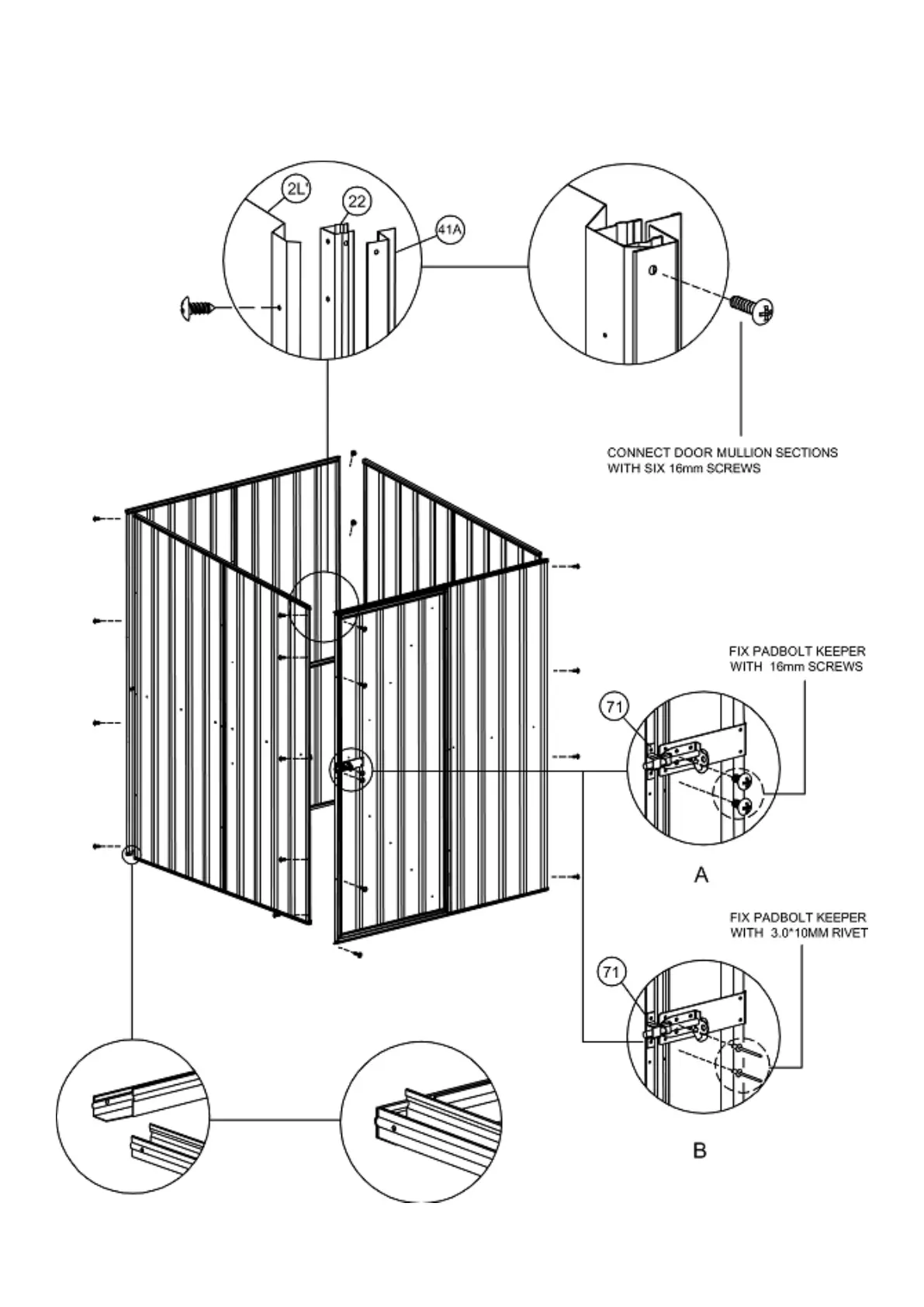

Step 7: Fit the panels together.
Attach the side walls to the back wall, then the front wall, then the roof. Fix all the components
using the self tapping screws. Fix 71 the pad bolt keeper with rivets or screws as required.
For greater security t rivets as below.
