4.1. Instructions for Models: GWC1200M, GWE1200M and GWW1200M.
 WARNING! Before using the winch ensure you read, understand and apply Section 1 safety instructions.
Note! Re-lubricate all shafts and gears before use.

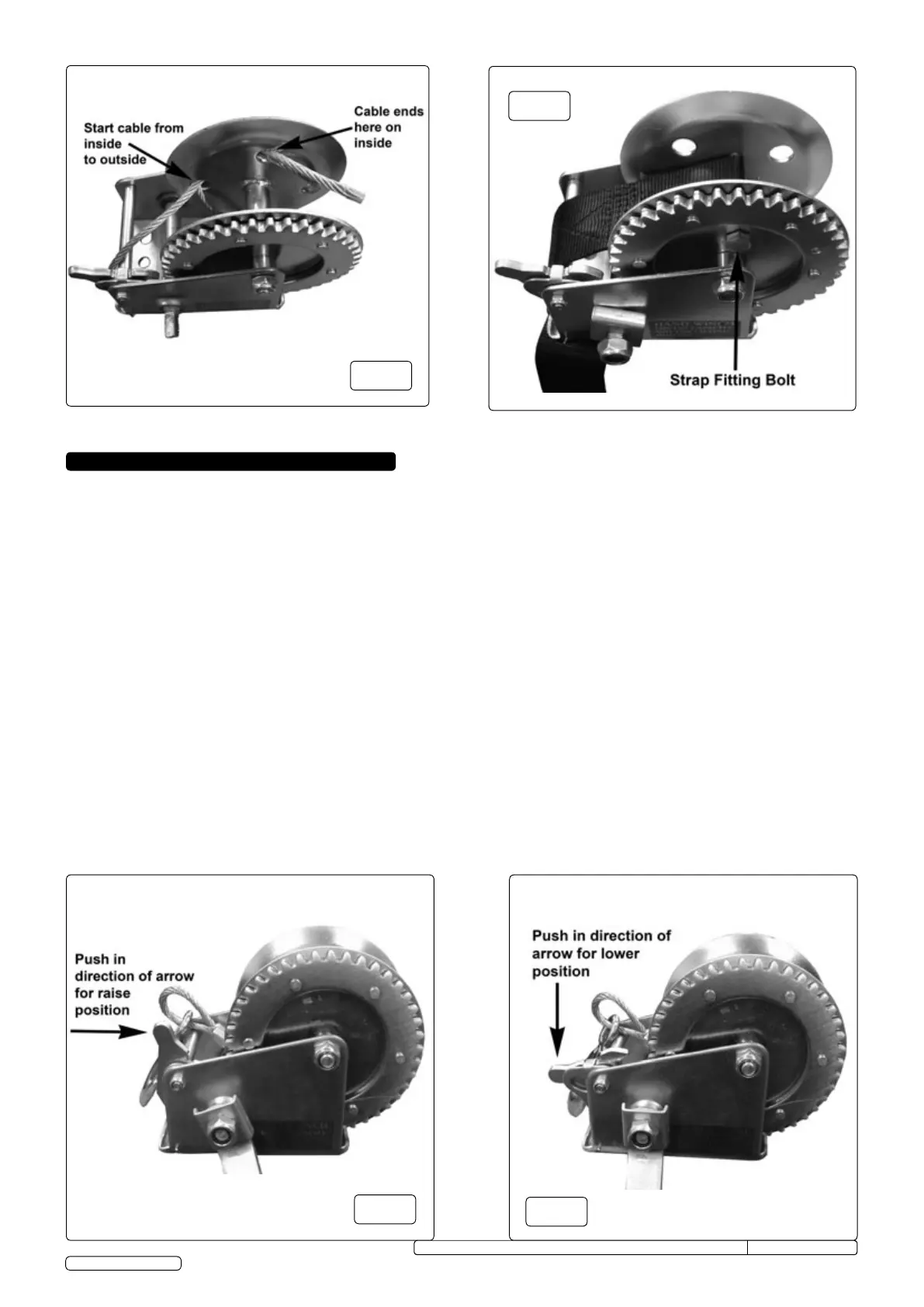

4.1.1. Fit handle and secure with lock nut and supplied washer.
4.1.2. To lift, push direction selector into position shown in fig.5 and turn handle clockwise.
4.1.3. To lower, move the direction selector to the position shown in fig.6 and turn the handle anticlockwise.
4.1.4. To activate the free spool function, move the direction selector to the middle position, see fig.7.
4.2 Instructions for Models: GWC2000M, GWE2000M and GWW2000M.
4.2.1. Fit handle to desired ratio shaft and secure with washer and lock nut.
4.2.2. Refer to fig.8 for lower and lift directions.
4.2.3. Free wheel is selected by putting the direction selector in the middle position.
 WARNING! Beware of injury caused by the spinning handle in free spool mode.
 WARNING! Never fully extend the cable or strap when under load.
 WARNING! Load capacity is reduced as layers build up on the drum.
