Sears 917.253721 - Page 17

~.
•
•
'
i
I

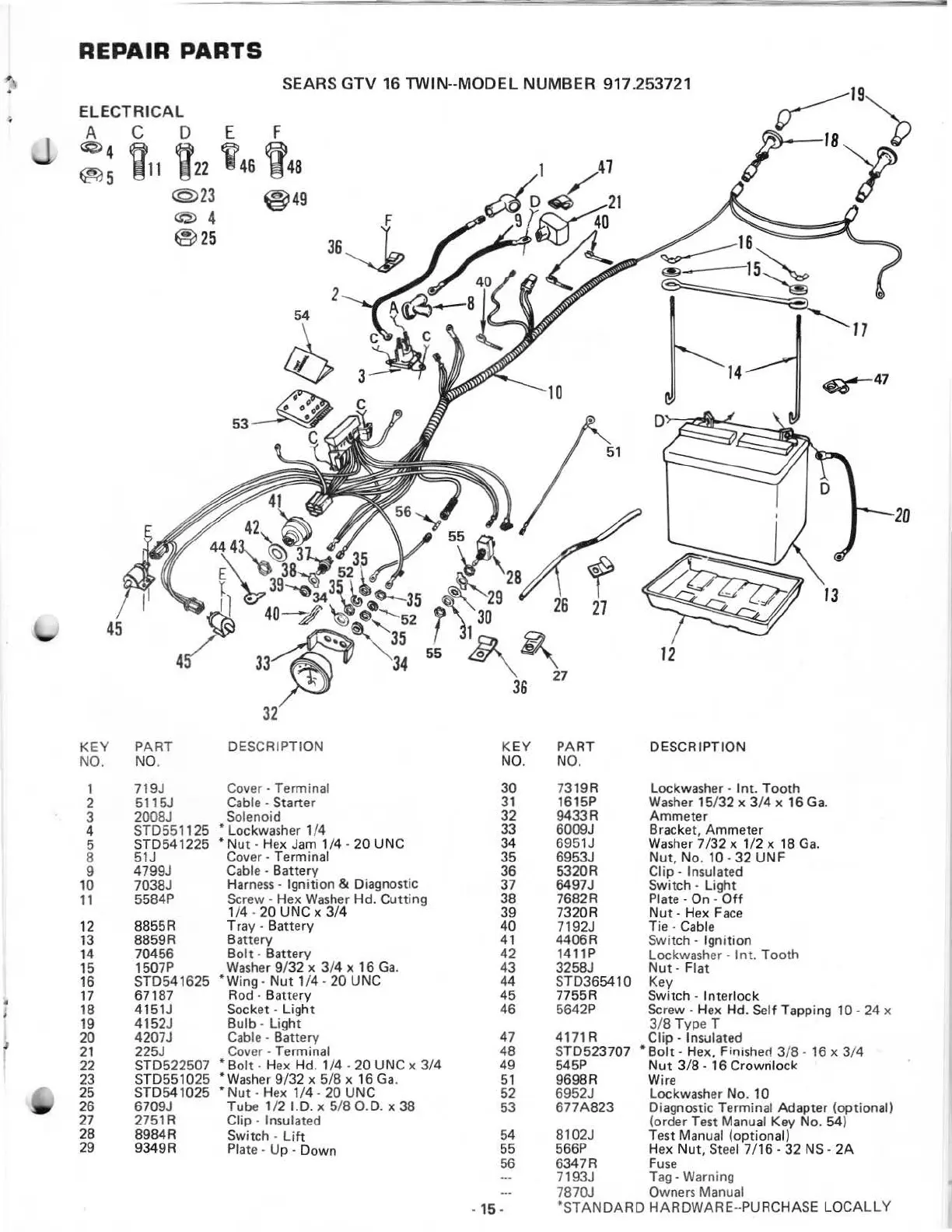

REPAIR PARTS
SEARS G TV 16 TWIN--MODEL NUMBER 917.253721
ELECTRICAL
A C D E F
:: ill i22 ,46 ~ 48
45
KEY
NO.
1
2
3
4
5
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
@23
@ 4
@25
PART
NO.
719J
5115J
2008J
STD551125
STD541225
51J
4799J
7038J
5584P
8855R
8859R
70456
1507P
STD541625
671 87
4151J
4152J
4207J
225J
STD522507
STD551025
STD541025
6709J
2751R
8984R
9349R
~ 49
32
DESCRIPTION
Cover·
Terminal
Cable · Starter
So lenoid
* Lockwasher 1/4
*Nu t- Hex Jam 1 /4 · 20 UNC
Cover- Terminal
Cable - Battery
Harness - Ignition & Diagnostic
Screw - Hex
Washer Hd. Cutting
1
/4 · 20 UNC x 3/4
Tray· Battery
Battery
Bolt· Battery
Washer 9 /32 x 3/4 x 16 Ga.
*Wing- Nut 1/4- 20 UNC
Rod - Batte ry
Socket · Light
Bulb · Light
Cable · Battery
Cover- Terminal
*Bolt · Hex Hd. 1/4 · 20 UNC x 3/4
*Washer 9/32 x 5/8 x 16 Ga.
*Nut · Hex 1/4 · 20 UNC
Tube 1/2 I.D. X 5/8 O.D. X 38
Clip - Insulated
Switch ·
Lift
Plate · Up - Down
~47
12
KEY PART
DESCRIPTION
NO. NO.
30 7319R Lockwasher · Int. Tooth
31
1615P
Washer 15/32 x 3/4 x 16 Ga.
32 9433R Ammeter
33
6009J Brack et, Ammeter
34 6951J
Washer7/32x 1/2x 18Ga.
35
6953J
Nut, No. 10- 32 UNF
36
5320R Clip - Insulated
37 6497J Switch · Light
38 7682R Plate-
On - Off
39 7320R
Nut· Hex Face
40
7192J Tie- Cable
41 4406R Sw itch · Ig nition
42 1411P
Lockwasher
· Int. Tooth
43 3258J
Nut· Flat
44
STD365410 Key
45 7755R
Switch · Interlock
46 5642P
Screw· Hex Hd. Self Tapping 10- 24 x
3/8 Typ e T
47 4171 R
Clip - Insulated
48 STD523707
*Bolt - Hex. Finisherl3/8- 16 x 3/4
49
545P Nut 3/8- 16 Crowrilock
51 9698R Wire
52 6952J Lockwasher No. 10
53
677A823 Diagnostic Terminal Adapter (optional)
(order Test Manual Key No. 54)
54
8102J Test Manual (optional)
55
566P
Hex
Nut , Steel 7/16- 32 NS- 2A
56
6347R
Fuse
7193J Tag- Warning
7870J
Owners
Manual
- 15-
* STANDARD HARDWARE--PURCHASE LOCALLY
