Sears C110 - Door Switch Function; Indicator Lights Overview

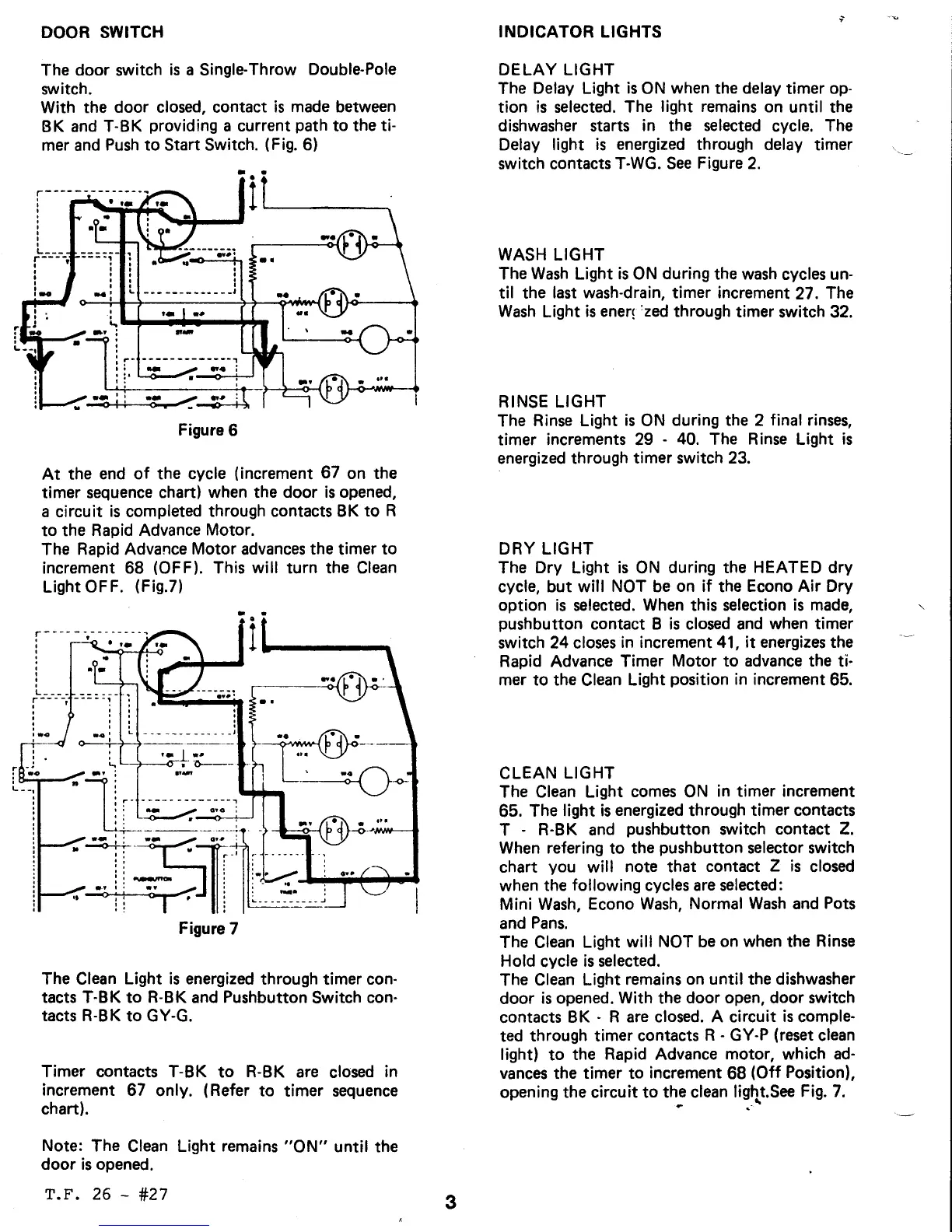

DOOR SWITCH
The door switch
is
a SingleThrow
Double-Pole
sruitch.
With the
door closed, contact
is made between
BK
and T-BK
providing
a current
path
to the
ti-
mer
and
Push to Start Switch.
(Fig.
6)
Figure
6
At
the
end of the cycle
(increment
67
on the
timer sequence
chart) when the
door is opened,
a
circuit
is
completed
through contacts BK
to R
to the
Rapid
Advance
Motor.
The
Rapid Advance
Motor
advances
the
timer
to
increment 68
(OFF).
This
will
turn the Clean
Light
OFF.
(Fig.7)
Figure
7
The Clean Light
is energized
through
timer
con-
tacts T-BK to R-BK
and
Pushbutton
Switch con-
tacts R-BK
to GY-G.
Timer contacts T-BK
to R-BK are
closed
in
increment 67
only.
(Refer
to
timer sequence
chaft).
Note:
The
Clean Light
remains
"ON"
until the
door is opened.
r.F. 26
-
#27
INDICATOR
LIGHTS
DELAY LIGHT
The
Delay Light
is
ON
when
the delay
timer
op-
tion is selected. The
light remains
on
until the
dishwasher
starts
in
the
selected
cycle.
The
Delay light
is energized through
delay timer
switch contacts
T-WG.
See
Figure
2.
WASH LIGHT
The Wash Light
is
ON
during
the wash
cycles un-
til the
last wash-drain, timer increment
27.
The
Wash
Light
is ener(
'zed
through
timer
switch 32.
RINSE LIGHT
The
Rinse Light
is
ON
during the
2
final
rinses,
timer increments 29
-
40.
The Rinse Light
is
energized through
timer switch 23.
DRY LIGHT
The
Dry
Light
is
ON
during the HEATED dry
cycle, but
will
NOT
be
on if
the
Econo Air Dry
option is
selected.
When
this
selection
is made,
pushbutton
contact B is closed and when timer
switch 24 closes
in increment 41, it energizes the
Rapid Advance
Timer
Motor to advance the
ti-
mer to the
Clean
Light
position
in
increment
65.
CLEAN
LIGHT
The Clean Light
comes
ON
in timer increment
65.
The
light is
energized
through
timer contacts
T
-
R-BK
and
pushbutton
switch
contact Z.
When
refering
to
the
pushbutton
selector switch
chart
you
will
note that
contact
Z is
closed
when
the
following
cycles are selected:
Mini Wash,
Econo Wash,
Normal Wash and
Pots
and
Pans.
The Clean
Light
will NOT be
on when
the
Rinse
Hold
cycle
is selected.
The Clean
Light
remains
on until the dishwasher
door
is opened. With the
door open, door switch
contacts
BK
-
R are closed. A circuit
is
comple-
ted
through timer
contacts
R
-
GY-P
(reset
clean
light)
to
the
Rapid
Advance
motor,
which ad-
vances
the
timer to
increment
68
(Off
Position),
opening
the circuit to th€ clean
ligtlt.See
Fig. 7.
3
