Seastar Solutions OPTIMUS EPS Supplement Instructions

Copy Part# 682147, Rev. C Page 2 of 8
Date: 02/2017
© 2015 Marine Canada Acquisition Inc. DBA SEASTAR SOLUTIONS 3831 No. 6 Road, Richmond, B.C. Canada V6V 1P6 Fax: 604.270.7172 Web: www.seastarsolutions.com
SUPPLEMENT INSTRUCTIONS

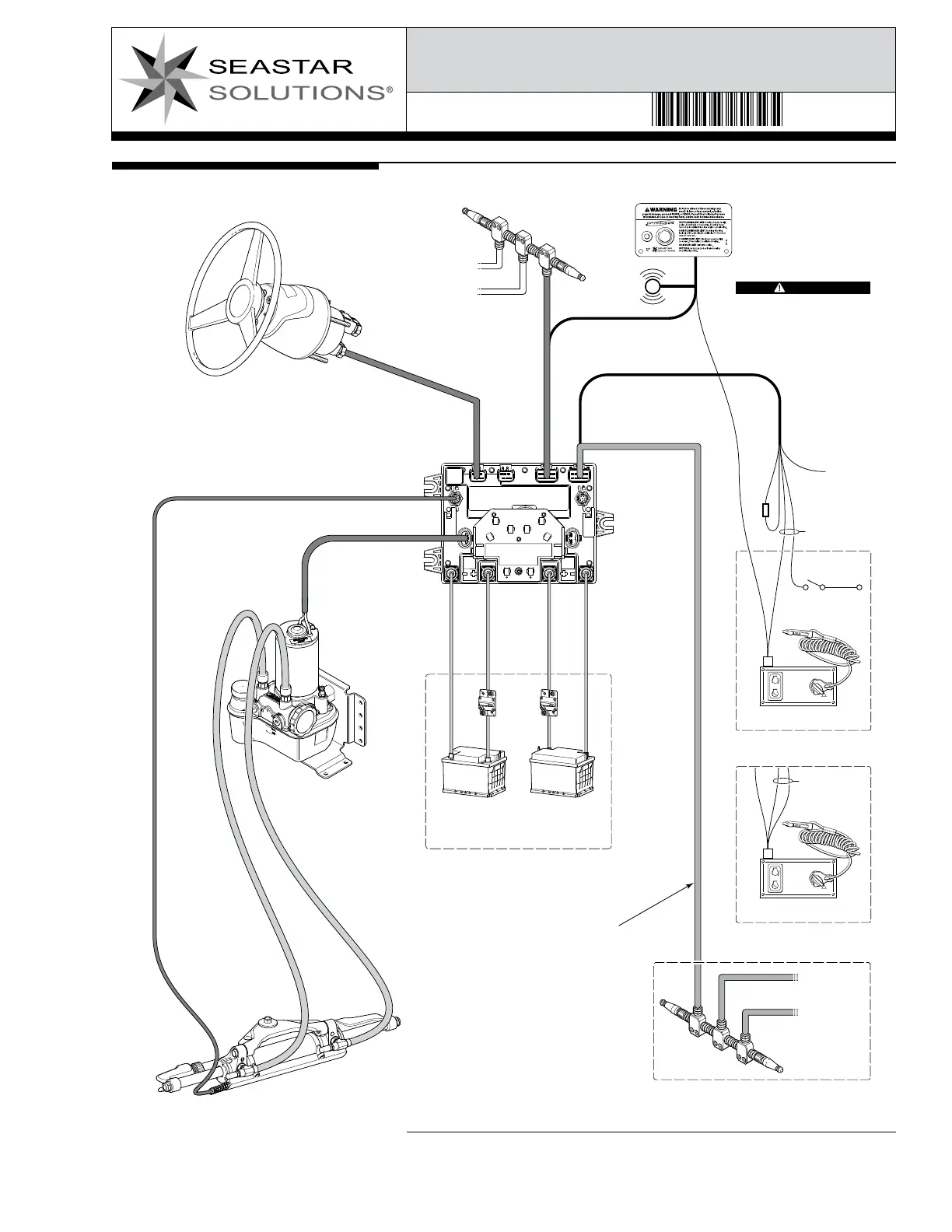

Figure B. Optimus EPS system diagram, single station, single engine, with dash panel.
RUN
OFF
RUN
OFF
CAN1
NETWORK
CAN2
NETWORK
PCM
HELM
DASH
PANEL
BUZZER
ENGINE GATEWAY
12 VOLT POWER
CAN3 NETWORK
NMEA2000
POWER
STEERING
PUMP
HYDRAULIC
HOSE
SWITCH PANEL
AUXILIARY
SWITCH
+12V
SOURCE
SWITCH PANEL
SMART
CYLINDER
BLACK
GREY
PURPLE
2 x PURPLE
IGNITION WIRE
2 x PURPLE
IGNITION WIRE
PURPLE
RED
COMPONENTS NOT SUPPLIED
BY SEASTAR SOLUTIONS
HARNESS OPTIONS:
WITH A/P CONNECTION: CM20304
WITHOUT A/P CONNECTION: CM20032
WITH AUXILIARY SWITCH*
WITHOUT AUXILIARY SWITCH
BREAKERS
ENGINE
BATTERY
HOUSE
BATTERY
SERVICE
PORT
AUTOPILOT
CCU
OPTIONAL
THE AUXILIARY POWER SWITCH
PROVIDES BACKUP POWER TO THE
STEERING SYSTEM AND SHOULD ONLY
BE USED IN EMERGENCY SITUATIONS.
THE DASH PANEL WARNING LAMP
AND BUZZER ARE DISABLED WHEN
THIS SWITCH IS USED.
*
WARNING
