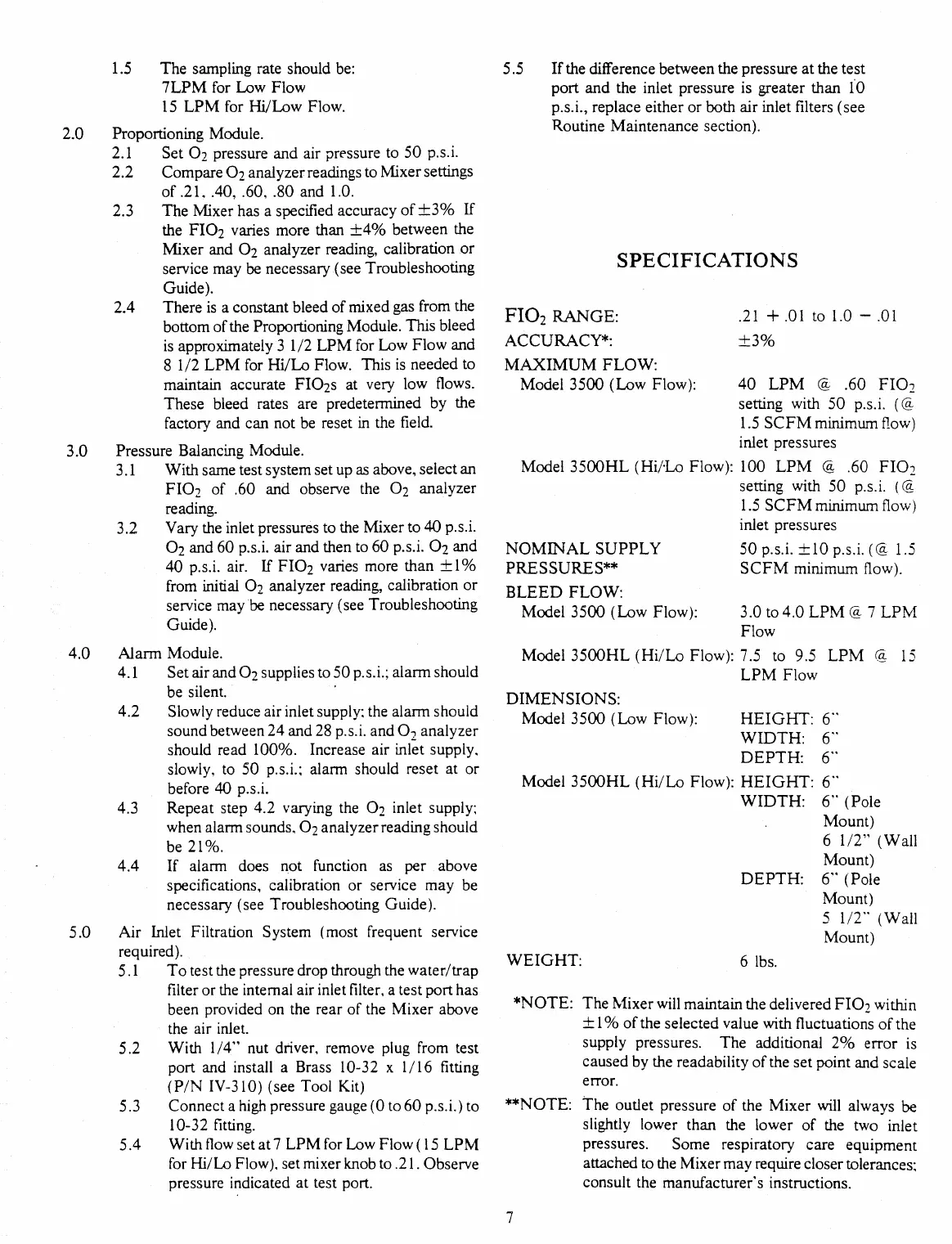

The sampling
rate
should
be:
7LPM
for
Low
Flow
15
LPM
for
Hi/Low
Flow.
Proportioning
Module.
2.1
Set
O;
pressure
and
air
pressure
to
50
p.s.i.
2.2
Compare
O>
analyzer
readings
to
Mixer
settings
of
.21,
.40,
.60,
.80
and
1.0.
2.3
The
Mixer
has
a
specified
accuracy
of
13%
If
the
FIO>
varies
more
than
+4%
between
the
Mixer
and
analyzer
reading,
calibration
or
service
may
be
necessary
(see
Troubleshooting
Guide).
2.4
There
is
a
constant
bleed
of
mixed
gas
from
the
bottom
of
the
Proportioning
Module.
This
bleed
is
approximately
3
1/2
LPM
for
Low
Flow
and
8
1/2
LPM
for
Hi/Lo
Flow.
This
is
needed
to
maintain
accurate
FIO
s
at
very
low
flows.
These
bleed
rates
are
predetermined
by
the
factory
and
can
not
be
reset
in
the
field.
Pressure
Balancing
Module.
3.1
With
same
test
system
set
up
as
above,
select
an
FIO
of
.60
and
observe
the
O2
analyzer
reading.
3.2
Vary
the
inlet
pressures
to
the
Mixer
to
40
p.s.i.
O;
and
60
p.s.i.
air
and
then
to
60
p.s.i.
Oz
and
40
p.s.i.
air.
If
FIO2
varies
more
than
+1%
from
initial
O
analyzer
reading,
calibration
or
service
may
be
necessary
(see
Troubleshooting
Guide).
Alarm
Module.
4.1
Set
air
and
O2
supplies
to
50
p.s.i.;
alarm
should
be
silent.
'
4.2
Slowly
reduce
air
inlet
supply;
the
alarm
should
sound
between
24
and
28
p.s.i.
and
O
analyzer
should
read
100%.
Increase
air
inlet
supply,
slowly,
to
50
p.s.i.;
alarm
should
reset
at
or
before
40
p.s.i.
4.3
Repeat
step
4.2
varying
the
O2
inlet
supply;
when
alarm
sounds,
O;
analyzer
reading
should
be
21%.
4.4
If
alarm
does
not
function
as
per
above
specifications,
calibration
or
service
may
be
necessary
(see
Troubleshooting
Guide).
Air
Inlet
Filtration
System
(most
frequent
service
required).
5.1
Totestthe
pressure
drop
through
the
water/trap
filter
or
the
internal
air
inlet
filter,
a
test
port
has
been
provided
on
the
rear
of
the
Mixer
above
the
air
inlet.
5.2
With
1/4"
nut
driver,
remove
plug
from
test
port
and
install
a
Brass
10-32
x
1/16
fitting
(P/N
IV-310)
(see
Tool
Kit)
5.3
Connect
a
high
pressure
gauge
(0
to
60
p.s.i.)
to
10-32
fitting.
54
With
flow
set
at
7
LPM
for
Low
Flow(15
LPM
for
Hi/Lo
Flow),
set
mixer
knob
to
.21.
Observe
pressure
indicated
at
test
port.
5.5
FIO;
RANGE:
ACCURACYY:
If
the
difference
between
the
pressure
at
the
test
port
and
the
inlet
pressure
is
greater
than
10
p.s.i.,
replace
either
or
both
air
inlet
filters
(see
Routine
Maintenance
section).
SPECIFICATIONS
.21
+.01
to
1.0
.01
13%
MAXIMUM
FLOW:
Model
3500
(Low
Flow):
40
LPM
@
«60
FIO,
setting
with
50
p.s.i.
(@
1.5
SCFM
minimum
flow)
inlet
pressures
Model
3500HL
(Hi/Lo
Flow):
100
LPM
@
.60
FIO,»
NOMINAL
SUPPLY
setting
with
50
p.s.i.
(@
1.5
SCFM
minimum
flow)
inlet
pressures
50
p.s.i.
£10
p.s.i.
(@
1.5
PRESSURES**
SCFM
minimum
flow).
BLEED
FLOW:
Model
3500
(Low
Flow):
3.0
to
4.0
LPM
@
7
LPM
Flow
Model
3500HL
(Hi/Lo
Flow):
7.5
to
9.5
LPM
@
15
LPM
Flow
DIMENSIONS:
Model
3500
(Low
Flow):
HEIGHT:
WIDTH:
DEPTH:
Model
3500HL
(Hi/Lo
Flow):
HEIGHT:
WEIGHT:
WIDTH:
6”
(Pole
Mount)
6
1/2”
(Wall
Mount)
6"
(Pole
Mount)
5
1/2"
(Wall
Mount)
DEPTH:
6
lbs.
*NOTE:
The
Mixer
will
maintain
the
delivered
FIO)
within
+1%
of
the
selected
value
with
fluctuations
of
the
supply
pressures.
The
additional
2%
error
is
caused
by
the
readability
of
the
set
point
and
scale
error.
**NOTE:
The
outlet
pressure
of
the
Mixer
will
always
be
slightly
lower
than
the
lower
of
the
two
inlet
pressures.
Some
respiratory
care
equipment
attached
to
the
Mixer
may
require
closer
tolerances:
consult
the
manufacturer's
instructions.
