Secutron MR-2100

MR-2100/MR-2200 Installation Manual
13
29"
(740 mm)
14-1/2" (368 mm)
27-1/2"
(699 mm)
1-1/4"
(32 mm)
Battery shelf
21-3/4"
(552 mm)
8-1/2"
(216 mm)
7/8" (23 mm)
lip each side
3/4" (19 mm) lip
top and bottom
5-1/2"
(140 mm)
16-1/8" (410 mm)
26-1/2"
(673 mm)
3" (76 mm)

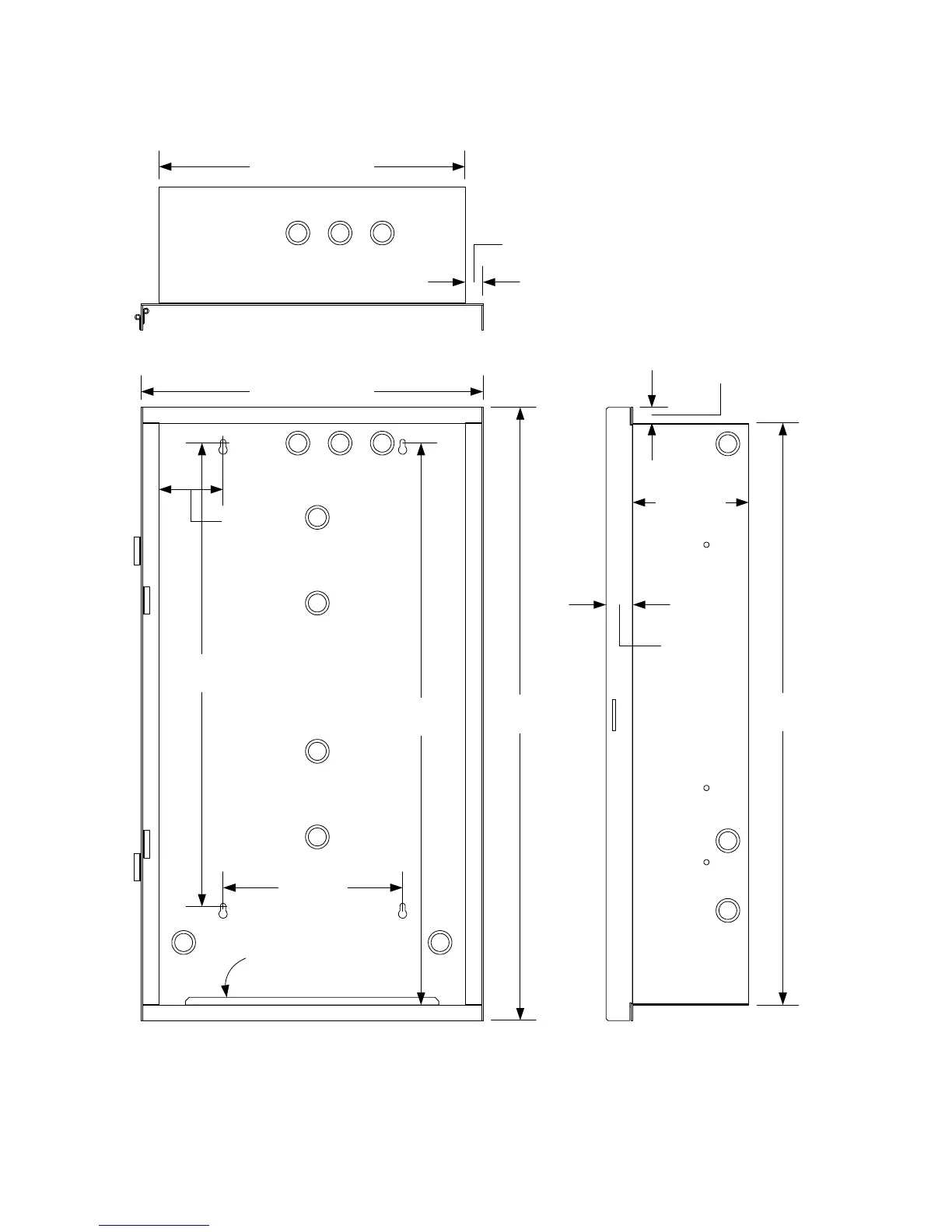

Figure 1: Knockouts and Mounting Holes
