Guardian Field Support Manual

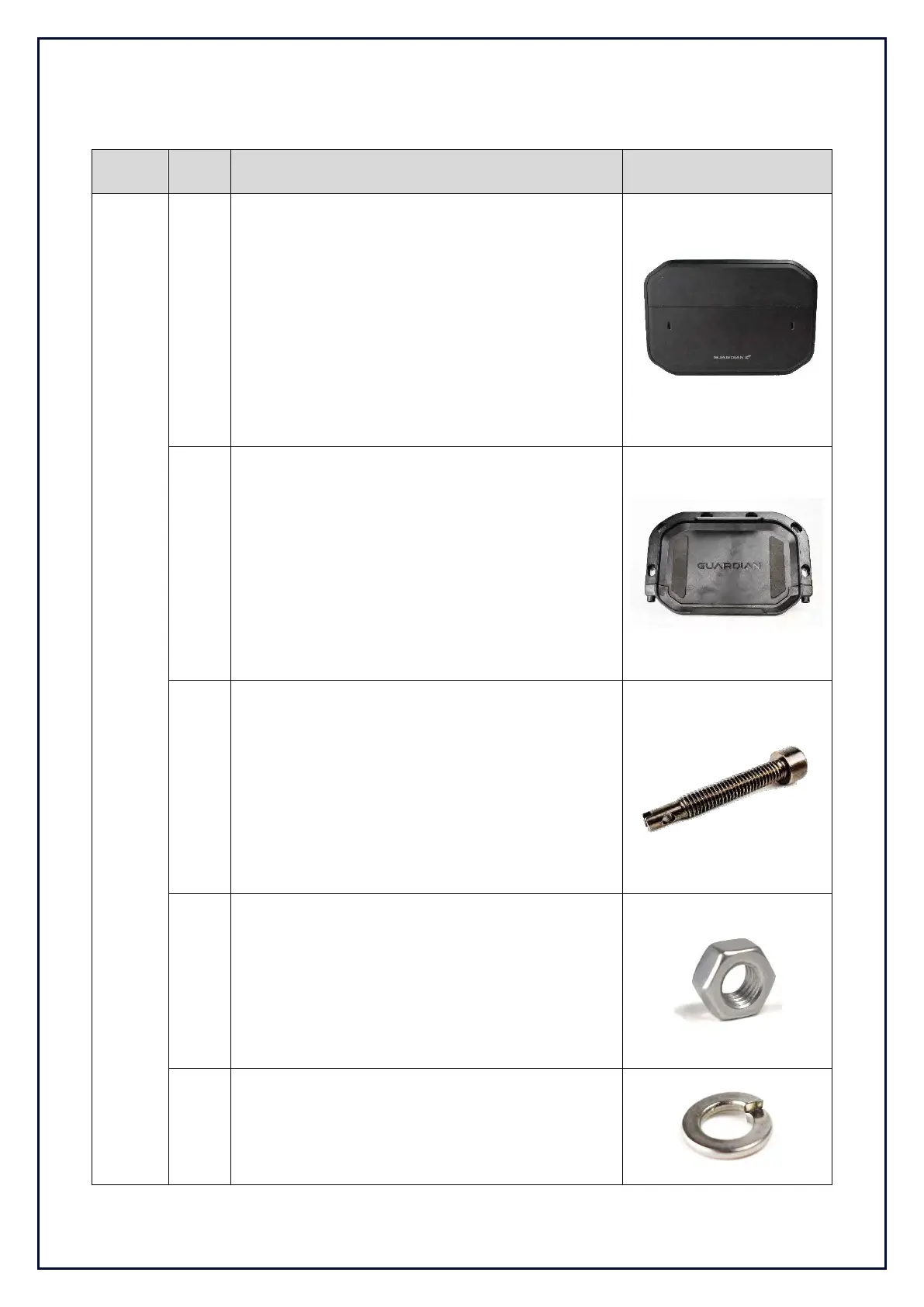

6. STANDARD COMPONENTS
Controller Unit Hardware:
Connection: This is the main processing unit, all
components connect to this unit
Size: 182x124x43mm
Adjustment: Input voltage: 10 to 30V DC (at the
Controller)
Function: This is the Processor of the system
which runs the entire system. It is rated at IP50
and is not waterproof. The temperature rating is
-40C to 65C.
Controller Mounting Pan:
Connection: Holds the Controller to a wall or
other stable fixture
Size: 218x146x54mm (Controller inside)
Adjustment: Comes in 2 parts, to release the
controller with a T20 driver
Function: Provides easy access to house the
Controller in a universal location for quick
removal
Fastener – Custom Bolt:
Connection: To fasten Mounting Pan to the
vehicle
Size: M6x30 cap hex head 5mm with side hole
Adjustment: Can be tightened from one side of
the truck
Function: Designed to enable one installer to
tighten the bolt when two people are required
Fastener - Nut:
Connection: To fasten Mounting Pan to the
vehicle
Size: M6 SS Hex Nut
Adjustment: To be used with a 10mm socket
Function: To tighten bolt
Fastener – Split Washer:
Connection: To fasten Mounting Pan to the
vehicle
Size: M6 OD 11.8 SS Split Washer
