3.2 Relay output contacts

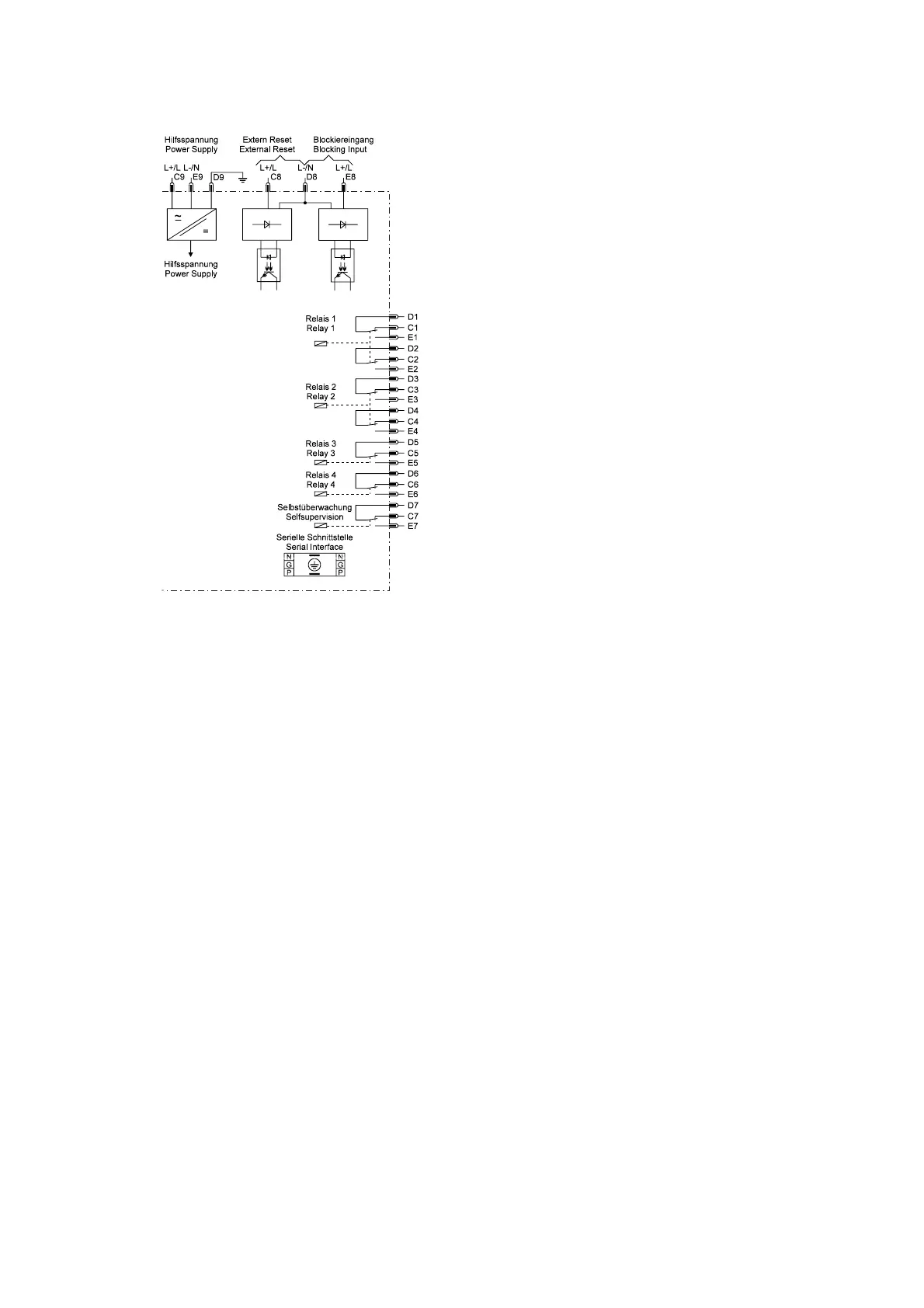

Figure 3.6
Contacts at MRI1:
To prevent that the C.B. trip coil circuit is interrupted
by the MRI1 first, i.e. before interruption by the C.B.
auxiliary contact, a dwell time is fixed.
This setting ensures that the MRI1 remains in self hold-
ing for 200ms after the fault current is interrupted.
