Sega Let's Go Jungle User Manual

22

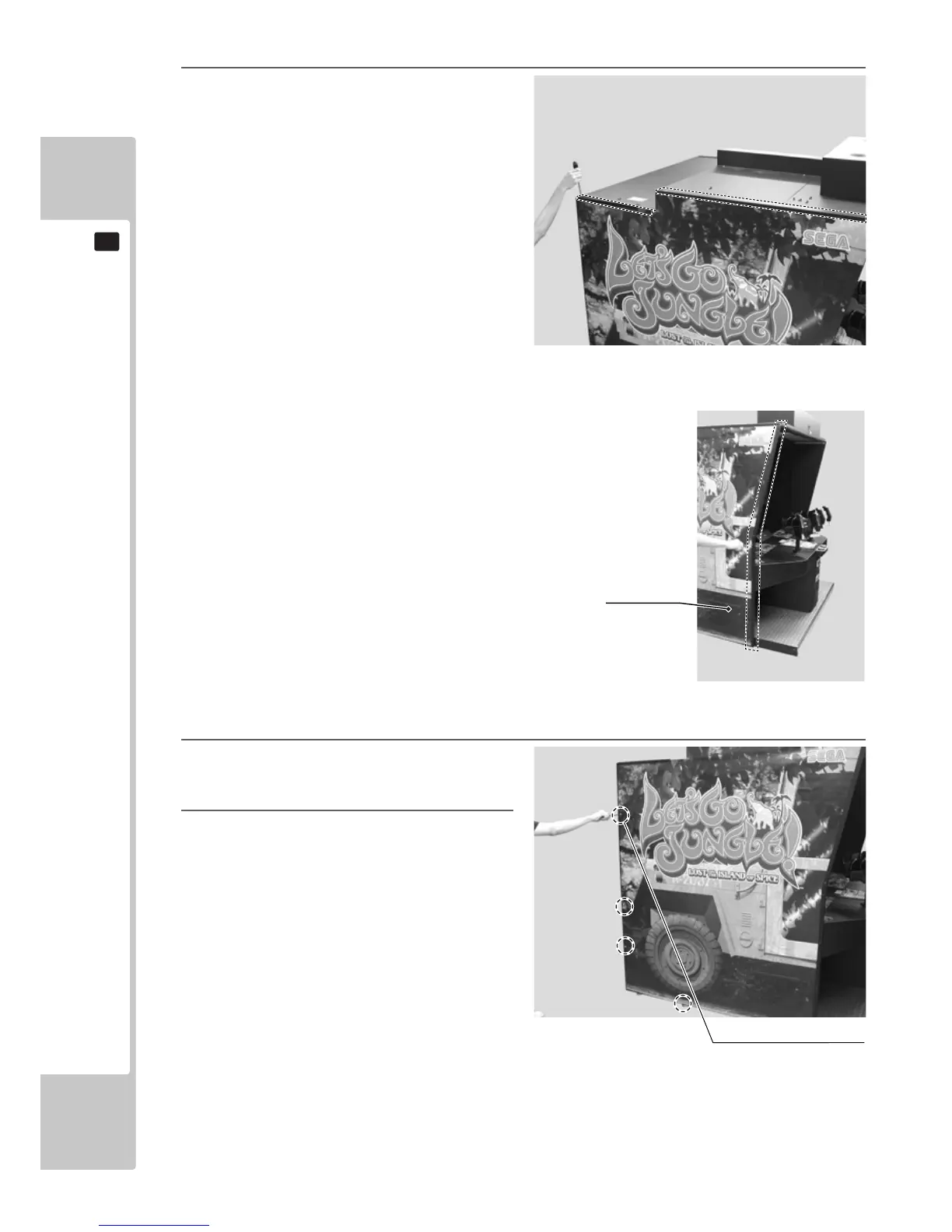

ASSEMBLY AND INSTALLATION
6
4
UsetrussscrewstoxtheSideClothinplace
through the eyelets in the DLP back and lower
sides of the Side Cloth.
5
Attach Side Cloth R in the same fashion on the
other side.
FIG. 6-2e
3
Attach the Side Cloth using the parts removed
in the above steps.
Thetrussscrewsxingeachpartwillcontinue
to be used. Pass them through the eyelets in the
edge of the Side Cloth.
FIG. 6-2c
FIG. 6-2d
SIDE CLOTH L
TRUSS SCREW (9 ea.), black
M4x16
