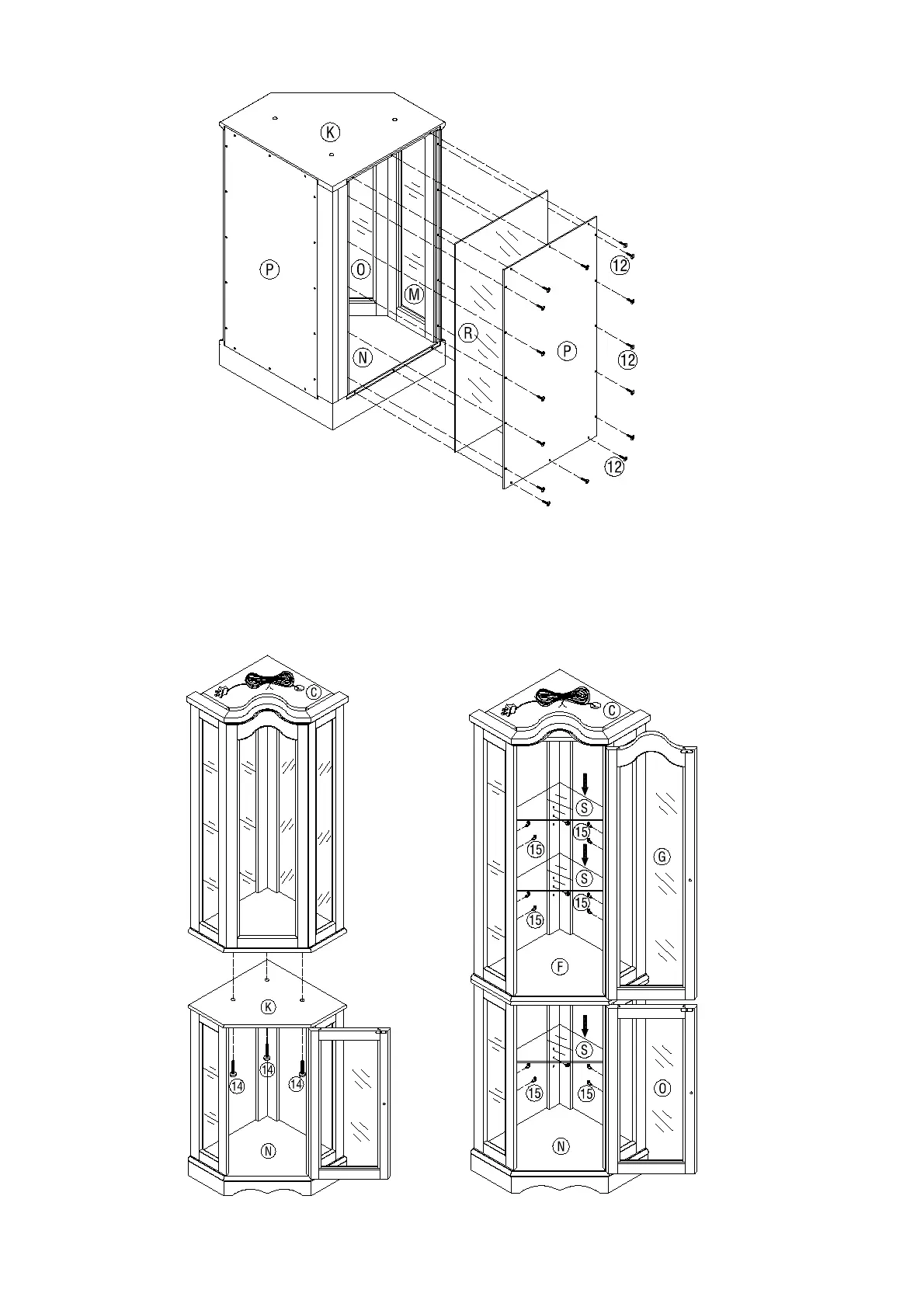

FIGURE 10
11. WITH AN ASSISTANT, PLACE UPPER CABINET ONTO LOWER CABINET, AND TIGHTEN LARGE
MACHINE SCREWS (14) THROUGH PREDRILLED HOLES ON LOWER SHELF (K) INTO THREADED
HOLES ON UNDERSIDE OF UPPER SHELF (F). AS SHOWN IN FIGURE 11.
12. FIT SHELF SUPPORTS (15) INTO PREDRILLED HOLES ON INSIDE OF PARTS (A, B, D, E, I, J, L, M),
AND PUT GLASS SHELVES (S) ON EACH SHELF SUPPORTS (15). AS SHOWN IN FIGURE 12.
FIGURE 11 FIGURE 12
