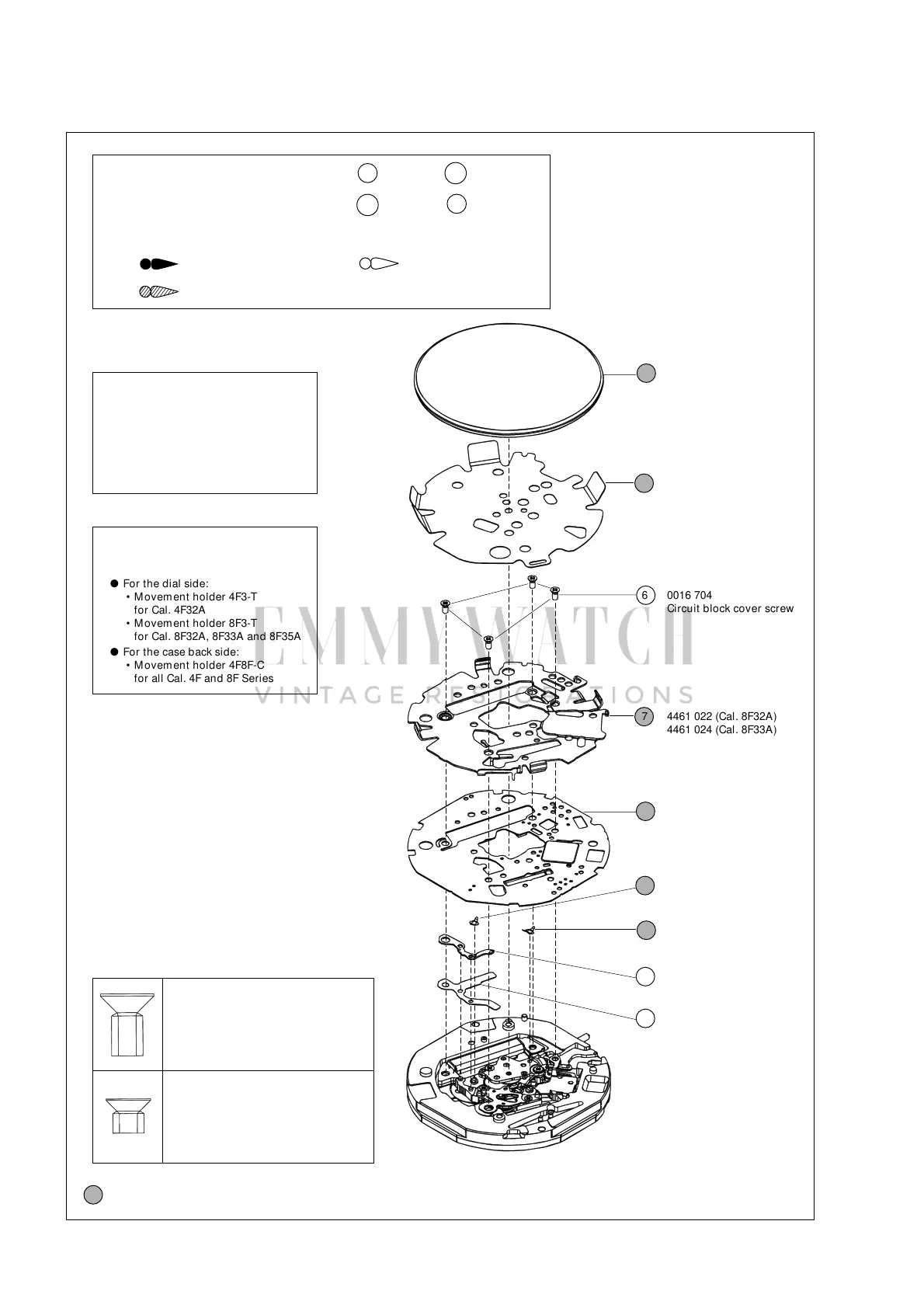

PARTS CATALOGUE
Disassem bling procedures Figs. : 1 → 43
Reassembling procedures Figs. : 43 ← 1
Lubricating: Types of oil Oil quantity
Moebius A Normal quantity
Moebius F
➡➡
Please see the rem arks on the following pages.
Cal. 4F32A, 8F32A, 8F33A, 8F35A
Ex. : Cal. 8F32A
Note for Cal. 8F32A and 8F35A:
When the hands and the dial
are rem oved, the dial spacer
will come off if the m ovement
is turned over. Take care not
to lose the dial spacer.
* For disassem bling and reassem bling,
use the movem ent holder for exclusive
use w ith the respective calibres.
● For the dial side:
• M ovement holder 4F3-T
for Cal. 4F32A
• M ovement holder 8F3-T
for Cal. 8F32A, 8F33A and 8F35A
● For the case back side:
• M ovem ent holder 4F8F-C
for all Cal. 4F and 8F Series
0016 704
• Circuit block cover screw (4 pcs.)
• Train w heel bridge screw (2 pcs.)
0016 705
• Ultrasonic m otor screw (2 pcs.)
2 Battery
(See the front page)
5 4216 115 (Cal. 4F32A)
4216 117 (Cal. 8F32A,
8F33A and 8F35A)
Insulator for battery (A)
6 0016 704
Circuit block cover screw
7 4461 022 (Cal. 8F32A)
4461 024 (Cal. 8F33A)
4461 033 (Cal. 8F35A)
Circuit block cover
(For Cal. 4F32A, see page 5)
8 4403 218 (Cal. 4F32A)
4403 219 (Cal. 8F32A,
8F33A and 8F35A)
Circuit block
10 4281 118
24-hour contact point
spring
11 4270 415
Battery connection (–)
12 4216 116
Insulator for battery (B)
9 4281 115
Date driving contact
point spring
To Next Page
