Seiko 5d88A - Page 16

TECHNICAL GUIDE
Cal. 5D88A
16/51

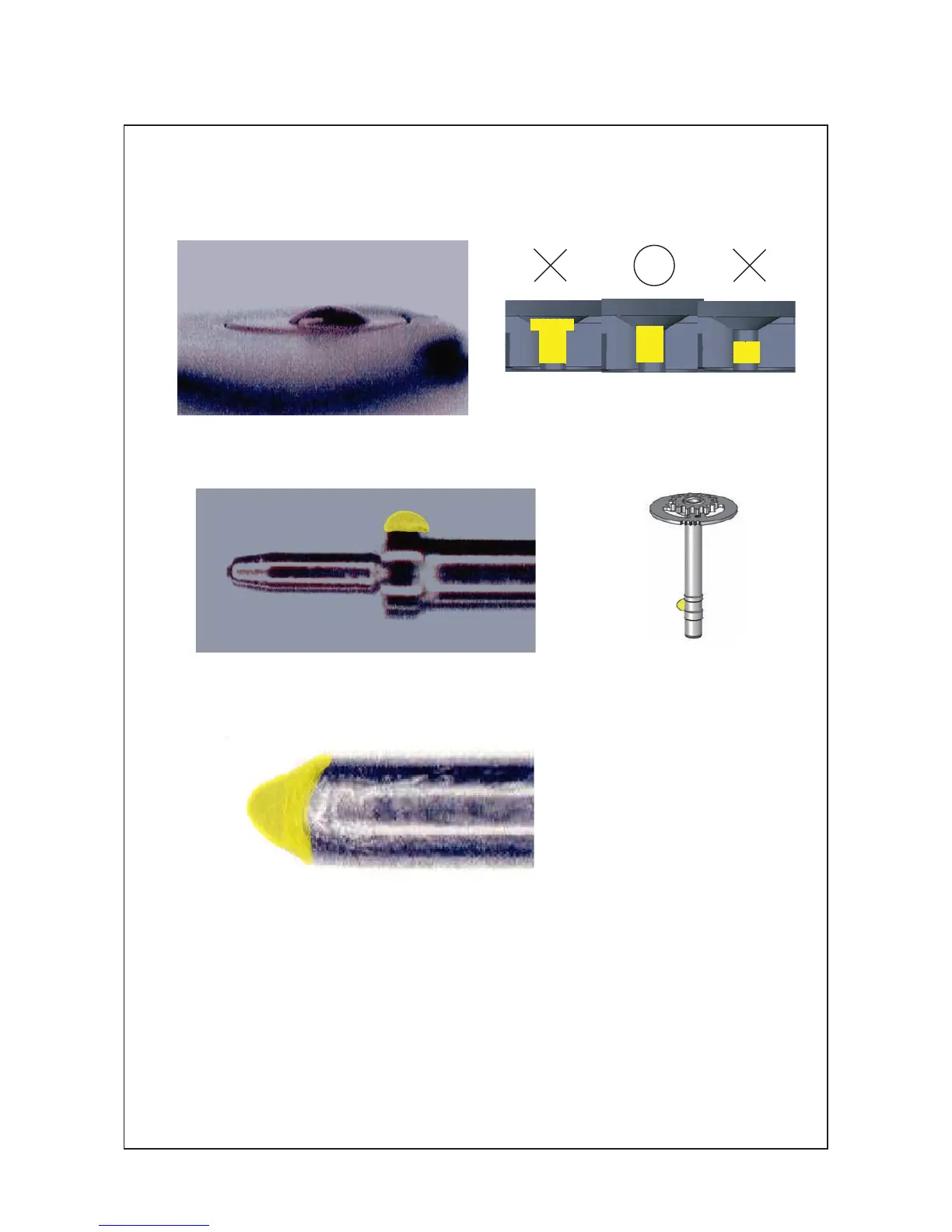

1) Pivot portions
Refer to the illustrations A and B.
1. REMARKS ON DISASSEMBLING AND REASSEMBLING
GENERAL INSTRUCTIONS FOR LUBRICATION
Illutration A
Illutration B
2) Part of axis of wheels (generally found on the center wheel and pinion and the fourth wheel.
Refer to the illustrations C and D.
3) S-6 oil on lubricating tool.
Refer to the illustrations E.
Illutration C
Illutration D
Illutration E
