Winding stem
iff
Clutch wheel
igg
Winding pinion

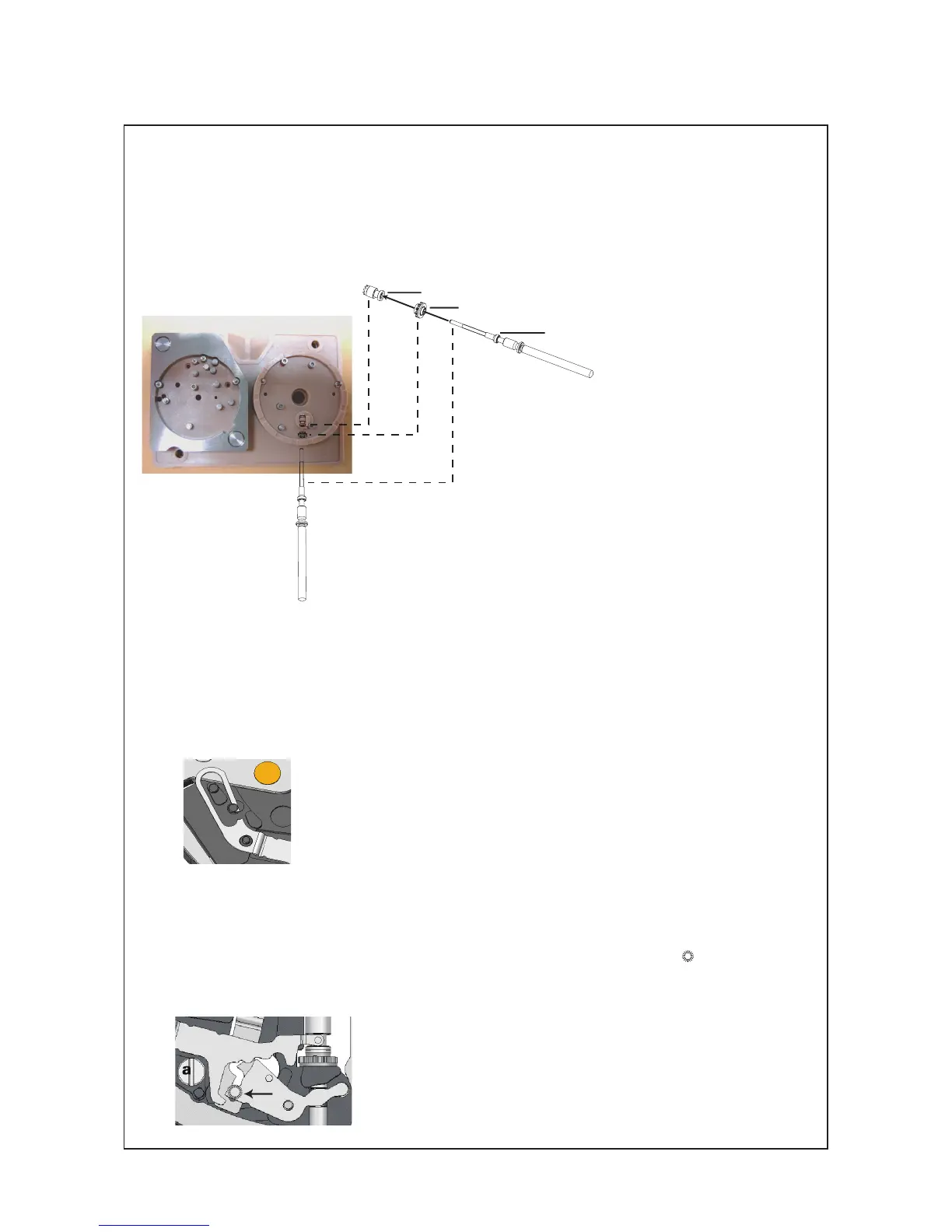

When installing the WINDING STEM
, support the WINDING PINION and the CLUTCH WHEEL by
using the movement holder as illustrated below.
ul
Yoke
Securely hook the arm of the YOKE
inside the pin of the main plate, taking care so as not to
deform the arm of the YOKE.
uk
Setting lever
uj
Setting lever jumper
uh
Setting lever jumper screw
Securely engage the pin on the backside of the SETTING LEVER
(indicated by in the illustration
below) with the guiding slit of the SWITCHING LEVER. Sliding the SWITCHING LEVER towards the
“a” portion in the illustration below will make this easier.
