Seiko SLH-2B - Needle and Bobbin Procedures; How to Set the Needle; Winding the Bobbin; Inserting and Removing the Bobbin

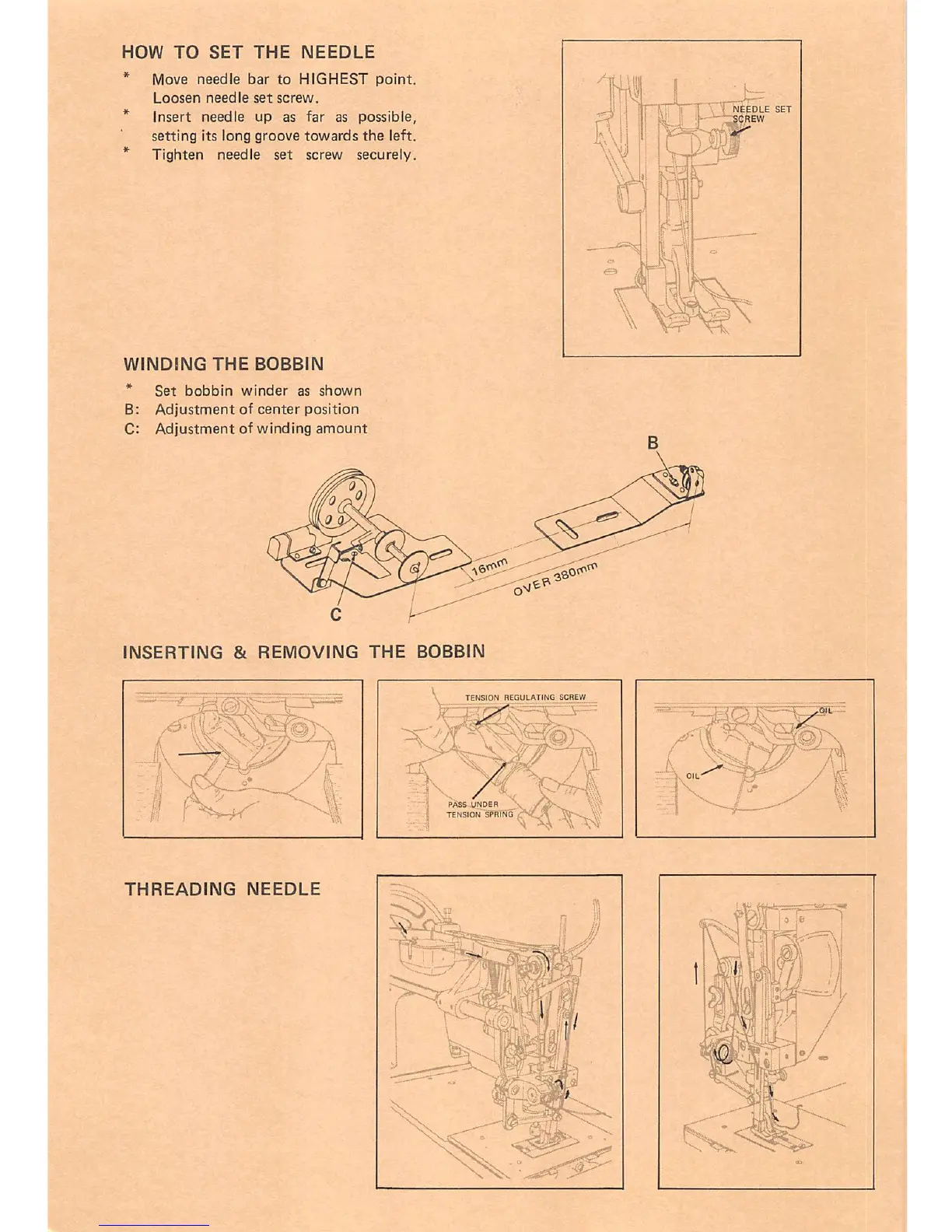

HOW TO SET THE NEEDLE
* Move needle bar to HIGHEST point.
Loosen needle set screw.
* Insert needle up as far as possible,
setting its long groove towards the left.
* Tighten needle set screw securely.
WINDING THE BOBBIN
* Set bobbin winder as shown
B: Adjustment of center position
C: Adjustment of winding amount
INSERTING & REMOVING THE BOBBIN
THREADING NEEDLE
TENSION REGULATING SCREW
PAS .UNDER -V y \
TENSION SPfiltiG' ^
NEEDLE SET
