Note
please take reference to the table of the Azimuth angles specified in the back pages of this manual.
Note

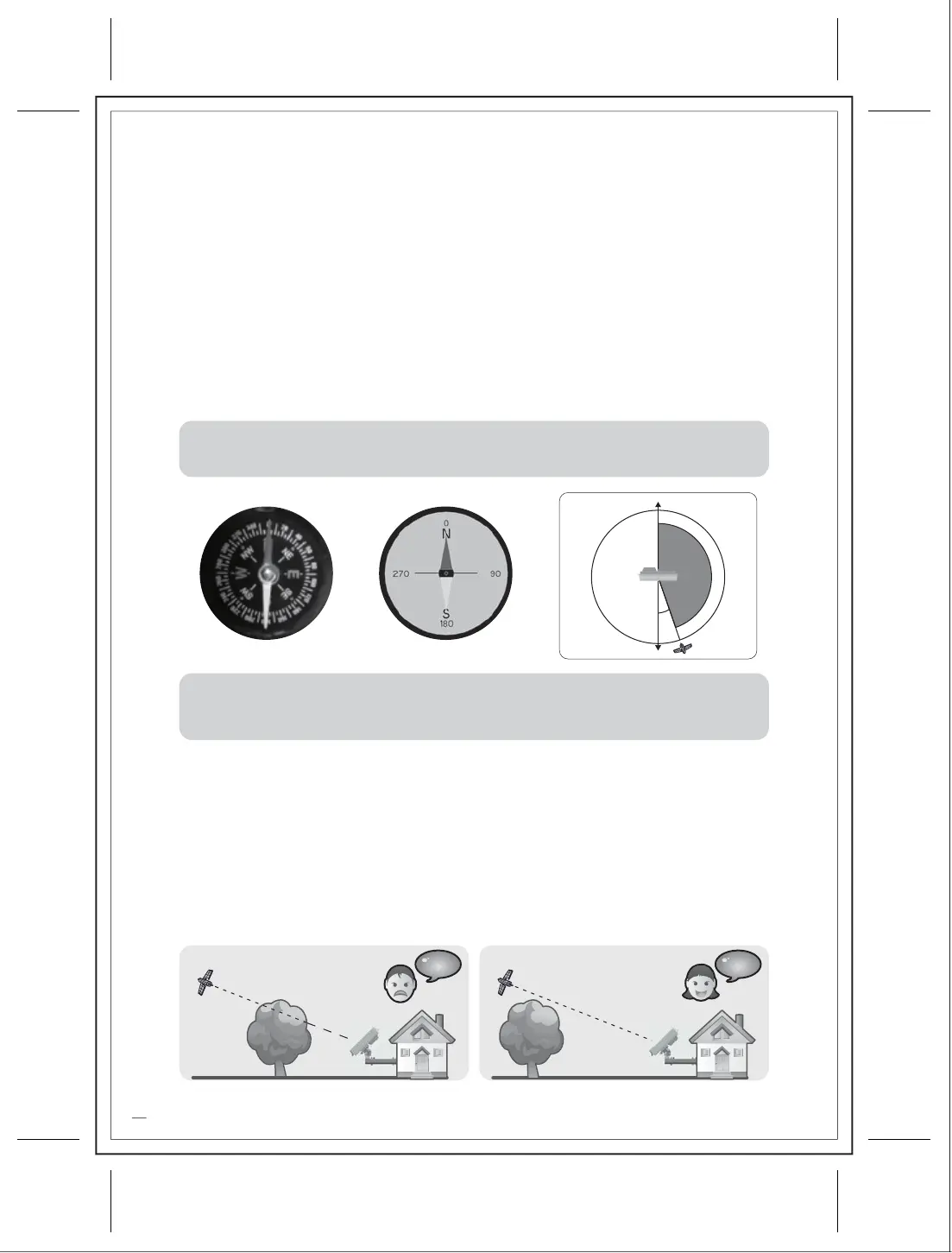

< Compass > < Azimuth Angle >
To ensure an accurate compass reading, stay away from large metal objects, specifically electrical cables and then make multiple
readings.
Bad Quality Singnal Reception
BAD! BAD!
Good Quality Singnal Reception
GOOD! GOOD!
Azimuth
Angle
S 180 oS 180 o
N 0 o N 0 o
Satellite position
How to Install?
By following the instructions step by step, you can proceed easily to install SELFSAT-H30D by
yourself or with the help of a professional antenna installer.
Step 1: Where to Install?
In order to receive a signal from the Satellite, SELFSAT-H30D is to be installed in an open loop space (outside the house or the
apartment), in the direction of the satellite towards the equator, for which, you will need a compass to exactly orient SELFSAT-H30D
toward the satellite.
Make sure that there are no obstacles in front of SELFSAT-H30D which can decrease the signal reception quality, such as buildings or
trees (you may keep in mind that trees will grow and may block the signal).
In order to be able to fix and install your antenna easily, you might choose an easily accessible place without any potential danger for
installation.
Think about the way you might pass your cable in a discreet way from the SELFSAT-H30D to your Set top Box. The antenna should
not be too distant from your satellite receiver; a cable longer than 30 meters may decrease the quality of the signal.
Before installing your antenna, you check that SELFSAT-H30D box contains all the items listed above in the ‘Box Content’. In the event
of any missing parts, please contact your distributor.
