5
Step 2: Check Information
In order to install antenna, you need to find skew, elevation and azimuth angle by referring the table on the back of the manual. If you
can’t find your location, please refer to the information of the nearest place from your location. This manual will show you the installation
example to receive ASTRA1 satellite in Brest region of France. The angle information for Brest region is Skew : -19.7, El : 30, Az : 149.6

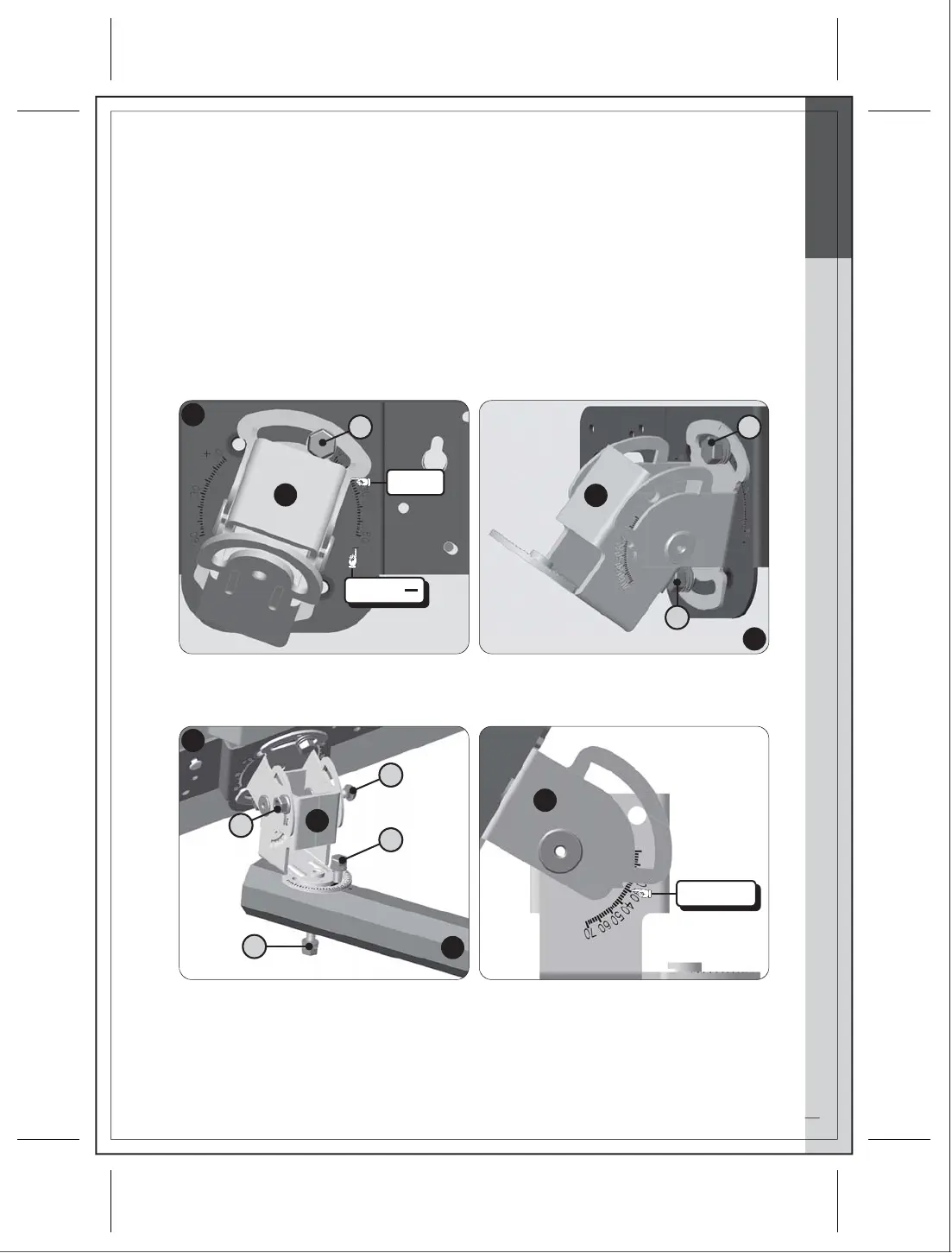

Step 3: Part Assembly
S3 S3
S3
-19.7
Check
A1
A1
B1
B1
S3
S1
S1
N1
Check 30
A1
B1
B2
B1
Fix Skew (Joint Angle Bracket and Antenna Body)
Joint Angle Bracket and Antenna Body by screw adjusting skew angle at -19.7
1)
Fix Elevation (Joint Antenna Body and Main Support)
Joint Antenna Body and Main Support. For delicate adjustment elevation and azimuth angle, please don’t fix bolt and nut tightly.
2)
