Step 4: Connecting the Antenna and the Set top box
Once you have installed the antenna in an open loop space and mounted the way you want it to be the next step is to connect it all
together.
In order to be able to watch your favorite satellite programs, you need to connect your satellite antenna to a receiver by a cable. The cable
between the antenna and the Satellite receiver should not exceed 30m as it will decrease the quality of the signal. The use of a long or bad
quality cable and not isolated jacks can cause a loss of the signal level, it would be preferable to use an RG6 Coaxial cable (HF 17VATC
or 19VATC cable), in order to minimize a signal loss.
S4
N1
N1
N1
S4
S3
S3
B3
B3
B4 B4
Use anchor bolt. It is
not included.
Wall
Wall
B2
B2

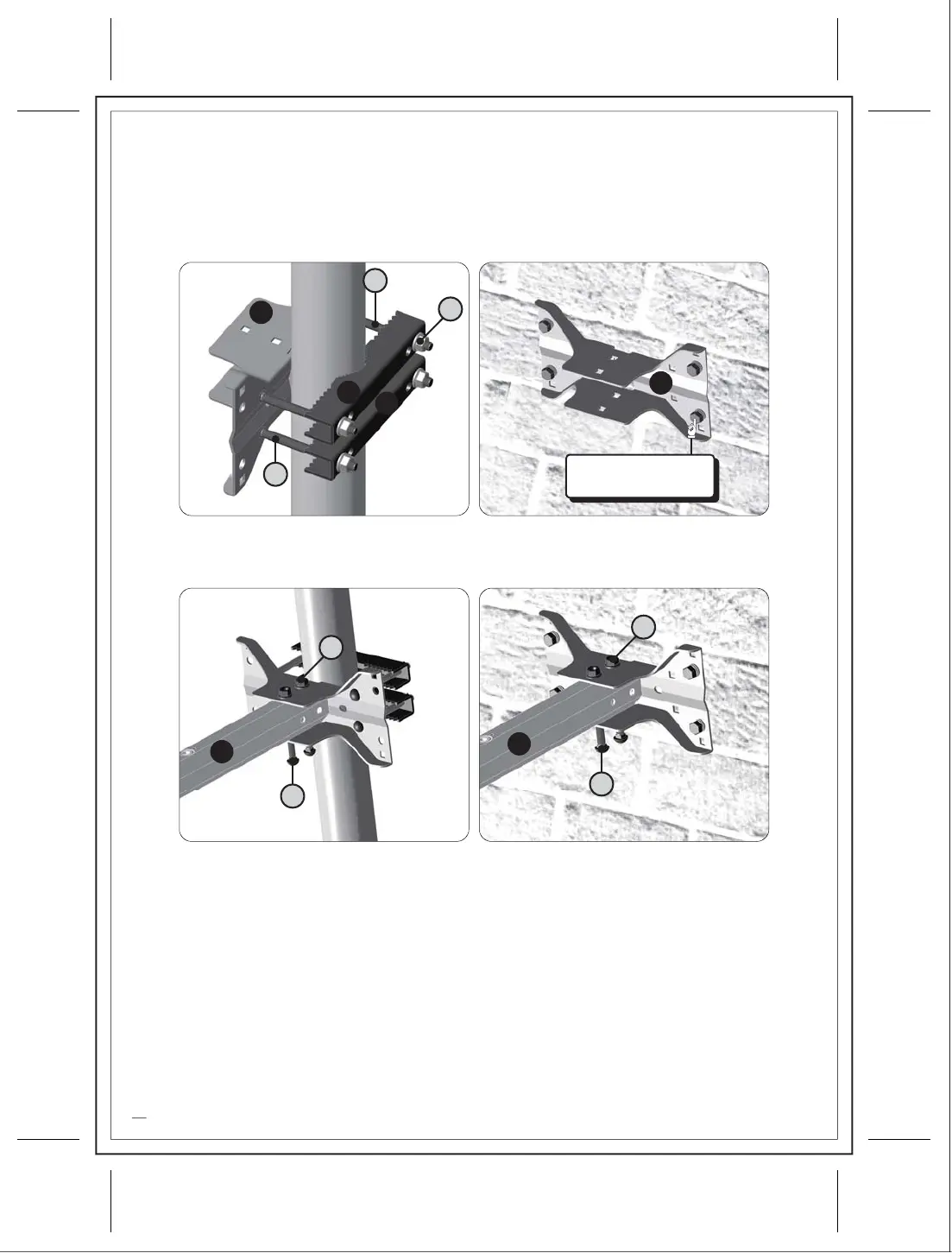

Installation of Fix Bracket A
You need to install Fix Bracket A(B3) considering installation place (Clamp Type, Wall Mounting Type). Make sure that direction
should be toward satellite. In order to support antenna, nut (N1) should be jointed as tightly as it can. Please purchase anchor
bolt separately for wall mounting installation.
3)
Joint Antenna Body and Fix Bracket A(B3)
Joint assembled Antenna Body and Fix Bracket A.
In order to support antenna, nut (N1) should be jointed as tightly as it can.
4)
