14
17
40
29
12
13
41
28
39
11
51
25
48
10
7
24
23
22
9
9.1
8
26
16
6
5
18
19
4
2
3
1
VSE 2, SKB J - R
SEMPELL SERIES VSE/VSR FULL LIFT AND NORMAL SAFETY RELIEF VALVE
OPERATING INSTRUCTIONS

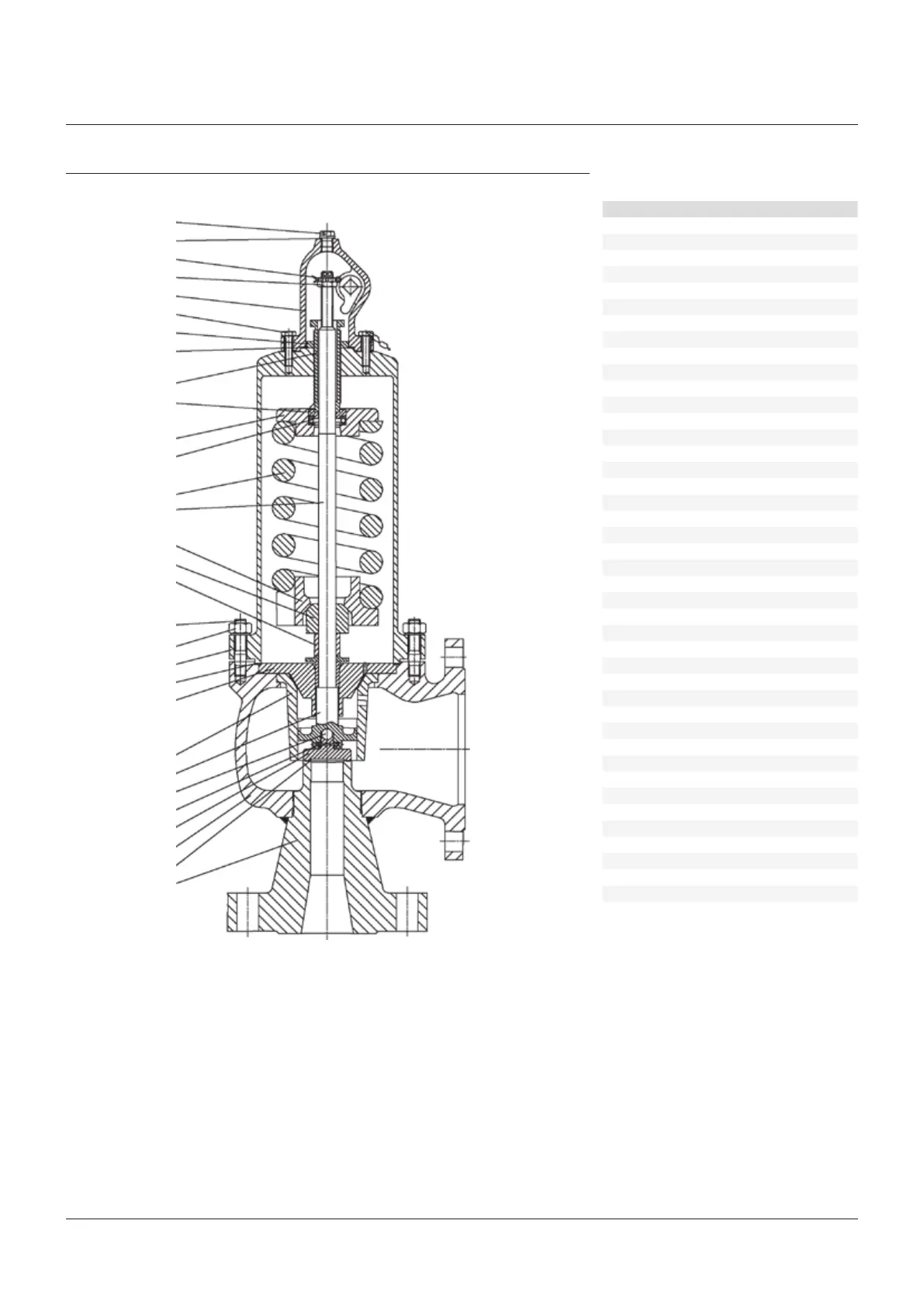

12 PART LIST AND ASSEMBLY DRAWINGS VSE 2 AND VSR 2
PARTS LIST
Part Name
1 Inlet nozzle
2 Body
3 Seat zone
4 • Disc
5 Guide piston
6 Guide bush
7 Spindle
7.1 Screw bolt
8 Bonnet
9 Stud
9.1 Nut
10 Spring
11 Tightening screw
12 Lifting nut
13 Cap
14 Adjusting ring
15 Cooling spacer
16 Cover
17 Gag plug
18 • Ball
19 • Dowel pin
22 Distance bush
23 Pressure bush
24 Spring stop
25 Spring plate
26 • Gasket
28 Lock nut
29 Split ring
30 Bush
31 Fork
32 Square shaft
33 Bottom ring
34 Packing
35 Gland
36 Lever
37 Washer
38 Hexagon nut
39 Gasket
40 Gasket
41 Cap screw
44 Lock screw
45 Gasket
48 Roller bearing
• Recommended spare parts
