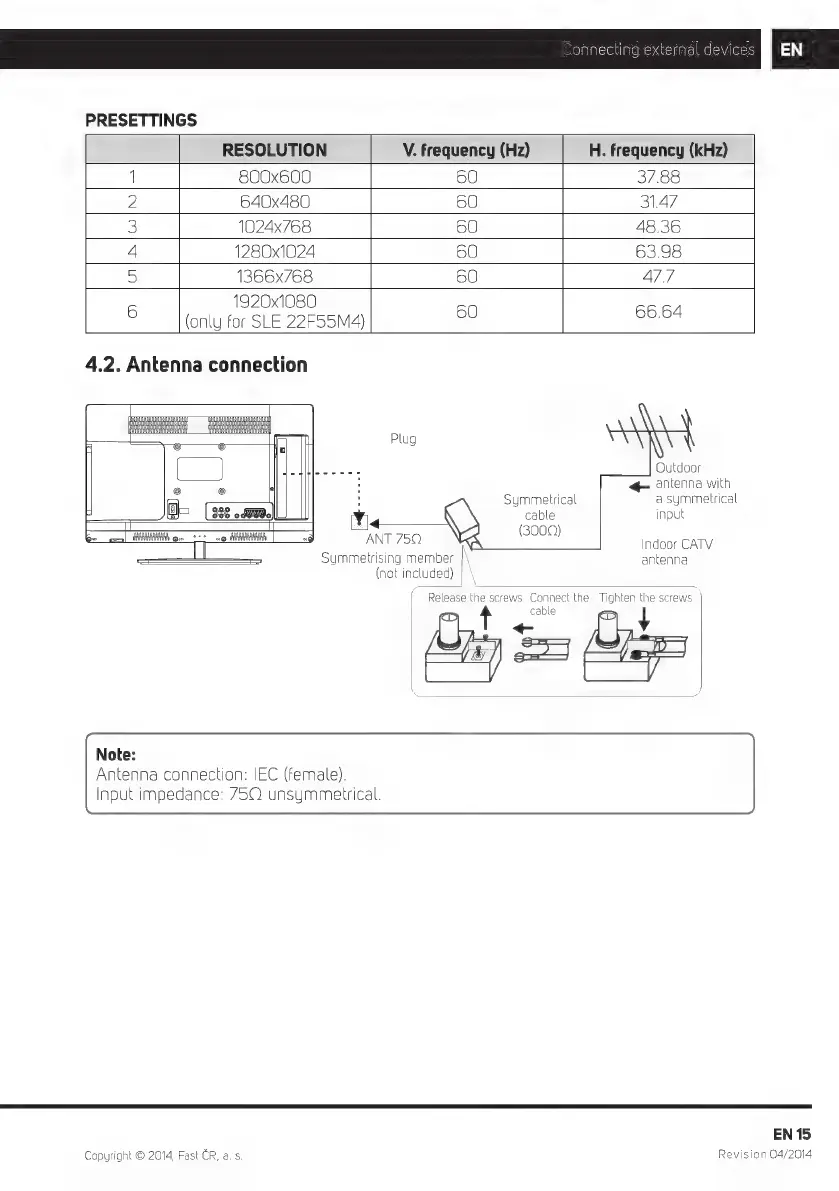

Connecting external devices EN
PRESETTINGS
RESOLUTION V. frequency (Hz) H. frequency (kHz)
1 800x600 60 37.88
2 640x480 60 31.47
3 1024x768 60 48.36
4 1280x1024 60 63.98
5 1366x768 60 47.7
27 mE. s664
4.2. Antenna connection
Plug
Outdoor
@ antenna with
358 Symmetrical a symmetrical
E L input
- e z Y cable P
pm oo >e oo ANNA | a ANT 75Q Indoor CATV
Symmetrising member antenna
(not included)
Release the screws Connect the Tighten the screws
cable
Note:
Antenna connection: IEC (female).
Input impedance: 75Q unsymmetrical.
EN 15
