Sennheiser AD 3700 - Overview and Operation; LED Indication; Typical Amplification Settings; Setup Guidelines

74-4270 SENNHEISER AD 3700 ANTENNA Active, directional, 470-866MHz

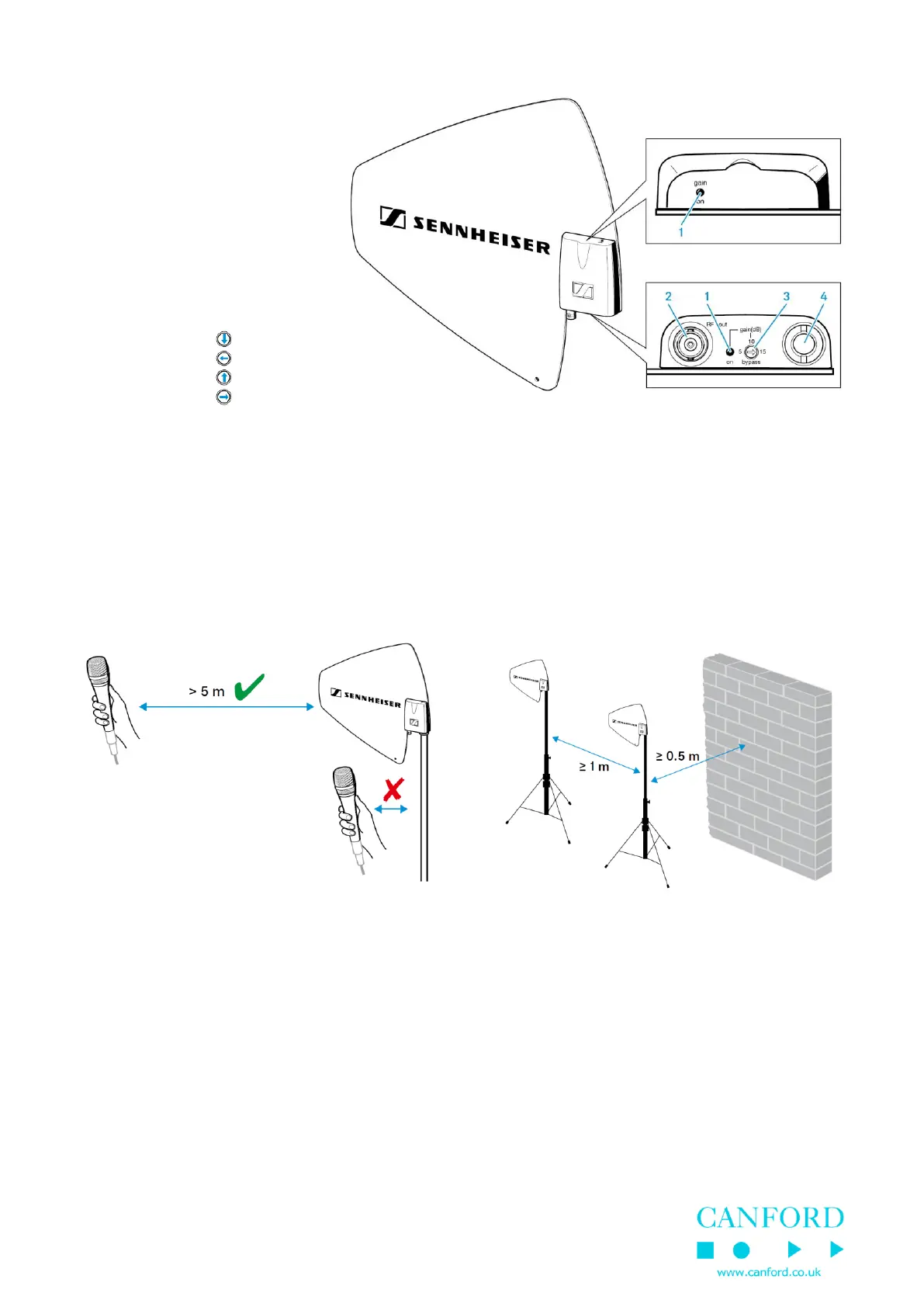

Overview
1. LED operation indicator
2. BNC socket, RF output (RF out)
3. Amplification selector
4. Mounting thread (3/8" or 5/8")
LED Indication
1 LED COLOUR 3 SELECTOR AMPLIFICATION
Red Bypass/ -3dB
Green + 5dB
Blue +10dB
White +15dB
Typical Amplification Settings
Typical 3 Selector settings dependent on cable and approximate cable length.
5dB 10dB 15dB
RG58 0 – 12m 10 – 25m 20 – 35m
RG213 0 – 25m 20 – 45m 40 – 65m
Low Loss ½” 0 – 45m 38 – 80m 70 – 110m
Setup
Minimum distance from transmitter to antenna, 5m. Antenna to antenna min distance, 1m. To wall, 0.5m
Accessories
NSR-XXXXX SENNHEISER GZL 1019-A1 BNC/BNC cable, 1 m
NSR-28151 SENNHEISER GZL 1019-A5 BNC/BNC cable, 5 m
NSR-XXXXX SENNHEISER GZL 1019-A10 BNC/BNC cable, 10 m
54-728 SENNHEISER GZG 1029 Swivel joint
54-729 SENNHEISER GZP 10 Mounting plate for GZG 1029
38-9286 CANFORD CABLE BNC-BNC-RG213/U-5m, Black
38-9287 CANFORD CABLE BNC-BNC-RG213/U-10m, Black
38-9288 CANFORD CABLE BNC-BNC-RG213/U-15m, Black
38-9289 CANFORD CABLE BNC-BNC-RG213/U-20m, Black
38-9290 CANFORD CABLE BNC-BNC-RG213/U-25m, Black
