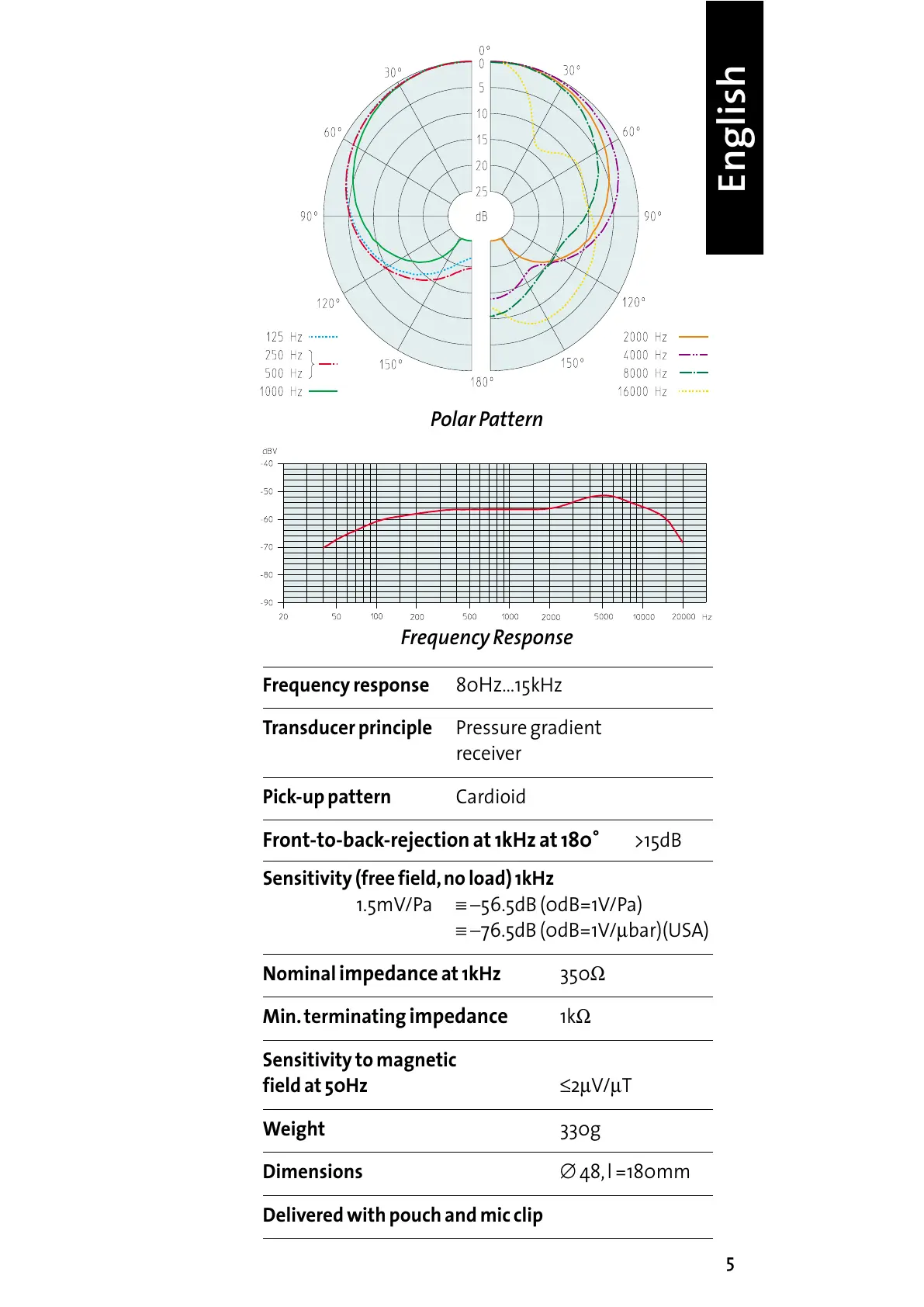

Frequency Response
Polar Pattern
Frequency response 80Hz…15kHz
Transducer principle Pressure gradient
receiver
Pick-up pattern Cardioid
Front-to-back-rejection at 1kHz at 180˚ >15dB
Sensitivity (free field,no load) 1kHz
1.5mV/Pa ≡ −56.5dB (0dB=1V/Pa)
≡ −76.5dB (0dB=1V/µbar)(USA)
Nominal impedance at 1kHz 350Ω
Min.terminating impedance 1kΩ
Sensitivity to magnetic
field at 50Hz ≤2µV/µT
Weight 330g
Dimensions ∅ 48,l =180mm
Delivered with pouch and mic clip
