~220-240V / 50 Hz

360°

2.8 m.

8 m.

10 sec. ± 1 sec. / 5 min. ± 10 sec.

Max 2x25W E27 bulb

IP20

-20 °C ~ +40°C

00999

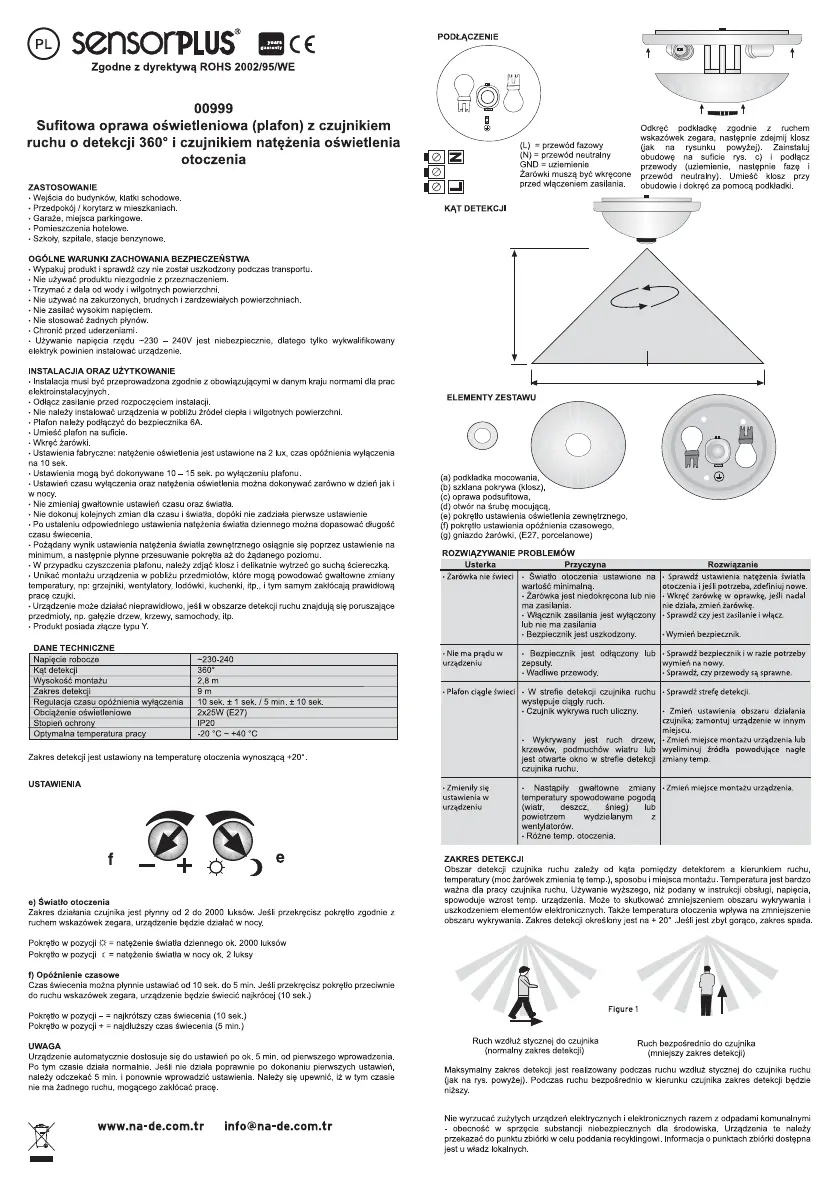

CEILING ARMATURE WITH 360° MOTION SENSOR

SPECIFICATIONS

00999

Operating voltage

Angle of coverage

Height

Width

Time setting

Lighting load

Protection class

Opr. temperature

(e) Daylight setting

The sensor’s response threshold can be infinitely varied from 2-2000 lux.

If you turn the knob clockwise device will operate at dark.

Control dial set = daylight operation approx. 2000 lux.

Control dial set = night-time operation approx. 2 lux.

(f) Time setting

Light ON time can be adjusted continuously from

“10 sec. ± 1 sec. / 5 min. ± 10 sec.” If you turn the knob anticlockwise device

will operate at minimum time. (10 seconds)

Control dial set to - = Shortest time (10 sec. ± 1 sec.)

Control dial set to + = Longest time (5 min. ± 10 sec.)

NOTE: Device will automatically make its own offset by checking environment

for approximately 10 minutes after the first installation. After this period device will

operate normally. If you think the device does not operate normal in first installation,

please wait for 10 minutes and start to test again. Be sure that there is no motion

by this period.

(L) = Line conductor

(N) = Neutral conductor

DETECTING RANGE

SYSTEM COMPONENTS

(a) Clamping washer

(b) Glass Cover

(d) Ceiling mount screw

(e) Daylight setting nobe

(f) Time setting nobe

(g) Lamp holder (E27 porcelain)

“OFFERS ENERGY SAVING FEATURE’’

SETTING

Walking targential to the sensor

(normal detection range)

Walking directly to the sensor

(lower detection range)

Figure 1

TROUBLESHOOTING

MALFUNCTION

CAUSE

SOLUTION

• Lamp is off

• There is no

electricity on the

device

• Continuously

lamp is on

• Change perception

area in device

• Daylight adjustment set to

night-time mode during daytime

operate

• Bulb faulty or there is no

connection

• Power switch off or no electricity

• Fuse faulty

• Fuse switch off or fuse faulty

• Connection faulty.

• Continuously movement in

detection zone

• Cars on the streets are being

detected.

• Wind, rain, snow is moving to the

trees & bushes or open windows in

detection zone.

• Sudden temperature changes due

to weather(wind, rain, snow) or the

air expelled from fans.

• Different ambient temperatures.

• Control daylight setting and

re-adjust

• Fit the bulp into the lamp holder,

if it still does not operate, change

the bulb.

• Check the electricity and power

on.

• Change the fuse.

• Check the fuse if necessary use

a new fuse.

• Check the connection cables.

• Check the detection zone.

• Avert it is being detection.

• Change detection zone, change

site of installation.

• Change site of installation or

keep the reasons away.

• Change site of installation.

2.8 m.

8 m.

4 m.

USAGE AREAS

• At the building entrances, stair vestibules.

• At the long halls within the flats.

• At the places required within the flats.

• At the parking garage.

• At the requisite locations within the hotels.

• At the schools, hospitals and oil filing station.

GENERAL SECURITY CAUTIONS

• Take off the original package and control if there is any damage of transportation

and general view of the product.

• Do not use the product at cross purposes.

• Keep it away from water and moist areas.

• Do not use the product at dusty, dirty and rusty places.

• Do not supply high voltage.

• Do not apply any liquid.

• Protect from any stroke.

• Using ~220-240V voltage is so dangerous that only the specialist

electricians must install and apply.

CAUTIONS FOR INSTALLATION AND USAGE

• Installing must be carried out professionally in accordance with applicable national wiring and

electrical operating conditions.

• Turn of the network before mounting.

• Do not mount the product near the radiator and moist areas.

• Place the product horizontal to the ceiling.

• Fix the bulbs before operating.

• Use 6A fuse the supply input.

• Factory setting; daylight adjustment is at darkness, time adjustment is at the shortest.

• Setting can be made 10 - 15 second after the releasing of the power.

• Time and daylight setting can be made during the day or night.

• Do not change the time and daylight settings abruptly.

• Do not make a second adjustment before you get a result from the first setting of the time and

daylight.

• After you determine the right setting of the daylight, you can arrange the time as you need.

• The best result for the daylight setting can be obtained by adjusting the minimum. And that

you can find the correct setting for sensitivity incrementally.

• When a cleaning needed for the glass, take of carefully and clean with a dry rag.

• Avoid mounting the detector close to objects that can cause rapid temperature changes such

as heaters, fans, refrigerators and ovents etc, and prevent the detector from point-blank sunshine.

• It can cause the device operate inaccurately if there is tree, brushes etc. in the coverage area.

DETECTION AREA :

Detection area of motion sensors depends on the angle between PIR detector and moving

direction, temperature (power of lamps changes this temperature), mounting style and mounting

place. Temperature is very important for operation for motion sensor like all electronic devices.

Using higher value of loads written on manuals and packages will decrease temprature inside

the device when using Ceiling Armatures with Motion Sensor. As a result detection range will

decrease and may cause defect of electronic components. Environment temperature will also

cause decrease of detection range. Detection range give is determined at 20°C. If the weather

is hot, it will decrease.

The maximum detection range can be realized when walking tangential to the sensor (figure1)

When walking directly to the sensor detection range will be low. Because you will not be able

to cut vertical areas. Detection range of Motion Sensors is 8 meters as diameter, 4meters as

radius.

GUARANTY

We will remedy defects caused by material flaws or manufacturing faults. The warranty will be

met by repair or replacement at our own discretion. The warranty shall not cover damage to

wear parts, damage or defects caused by improper treatment or maintenance. Further

consequential damage to other object is excluded.

Claims under the warranty will only be accepted if the unit is sent fully assembled and well

packed complete with a brief description of the fault, a receipt or invoice ( date of purchase and

dealer’s stamp) to the appropriate Service Center.

(a) (b) (c)

(d)

(e)(f)

(g)

Neutral line

Phase line

As shown in figure, firstly open the string by

turning counter clockwise and take off the glass.

Mount the ceiling from places which shown in

figure(c) and figure (d). And connect connector

as shown in electrical connection part. Then lay

the glass its place and fasten up the glass by

constricting the string.

RoHS
