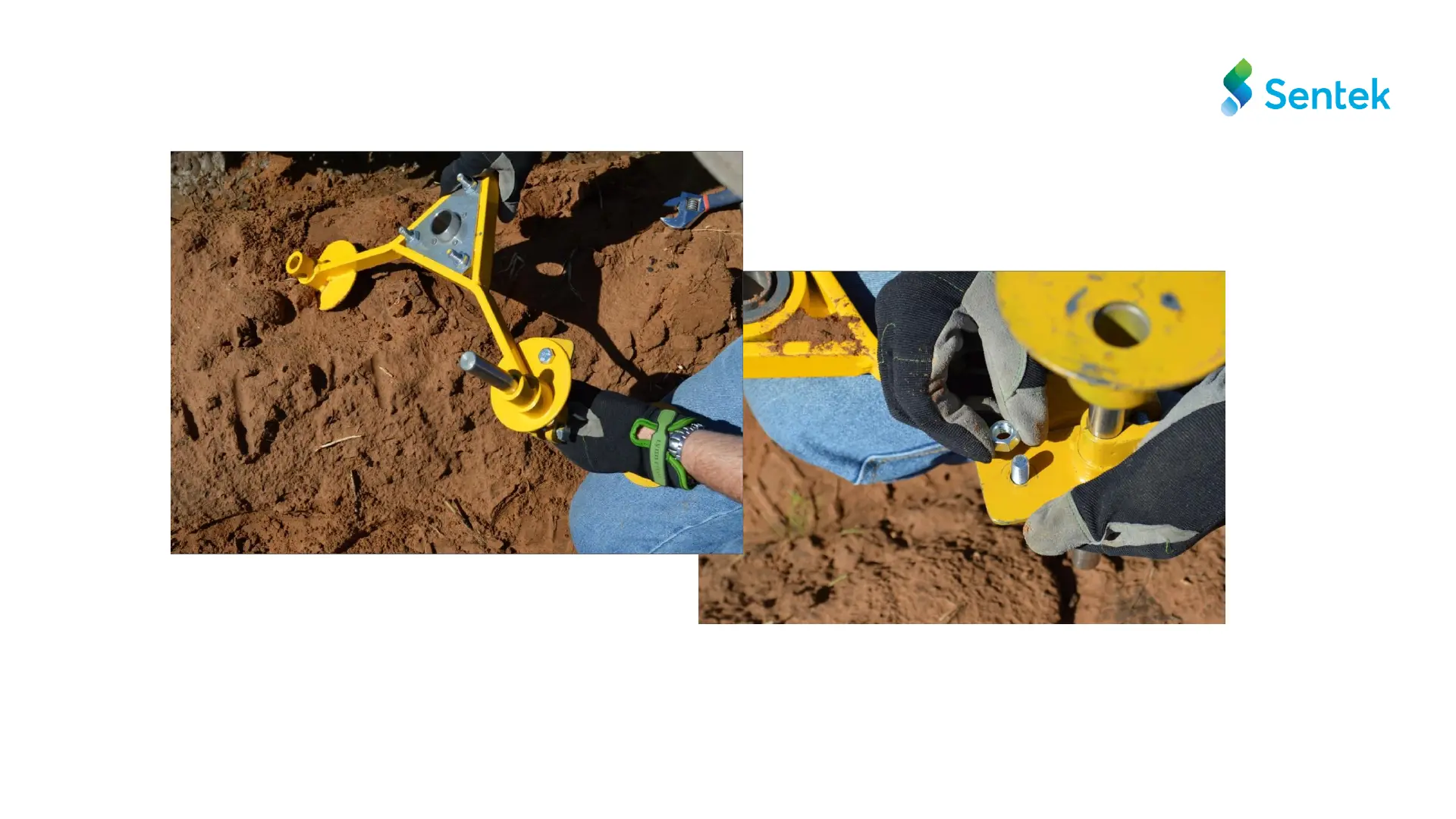

3. Securing the Extension Foot
• Align the holes of the Tripod Foot and the Extension Foot, insert the bolt through the
holes and tighten with the nut.
