Page 3/6
MT/B4-C4 I E

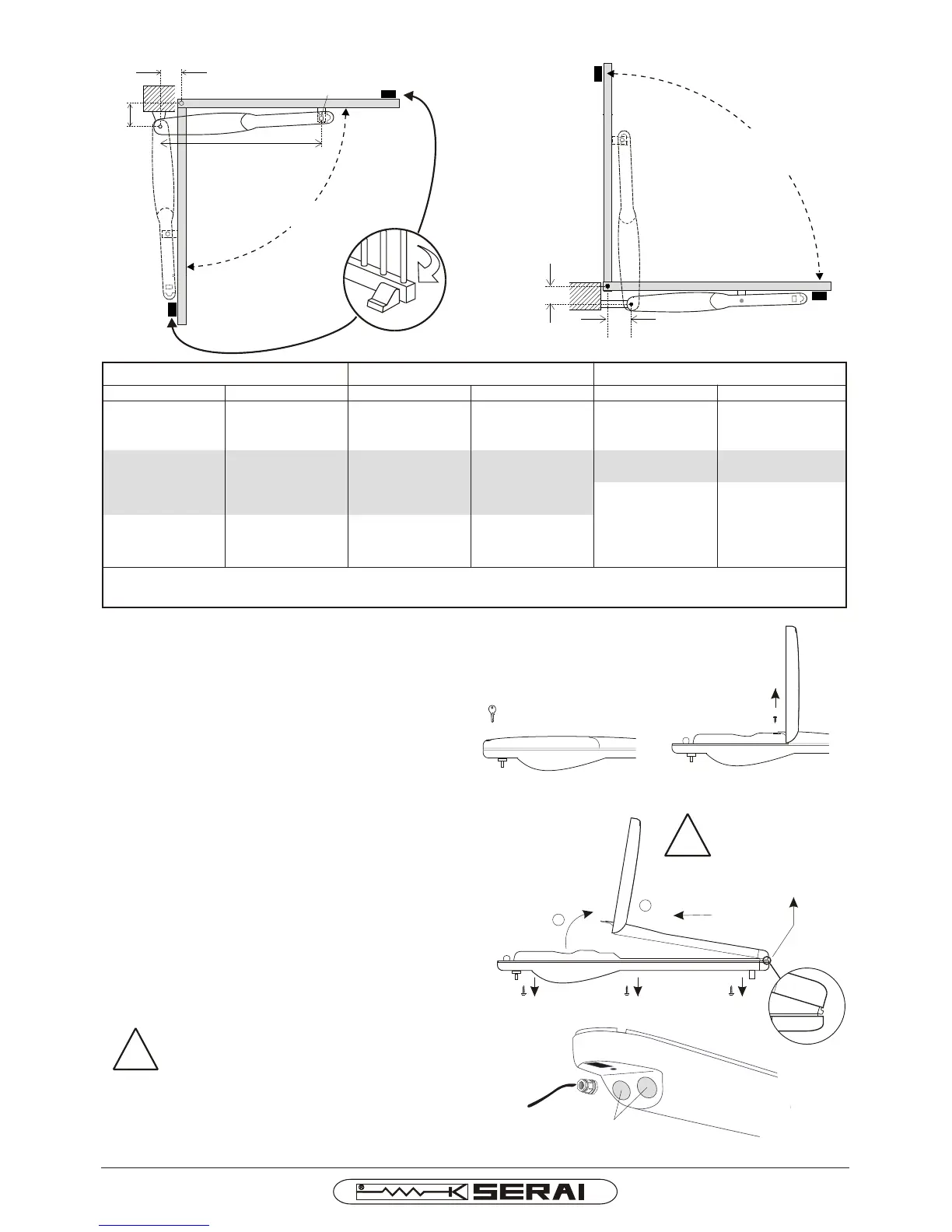

BRACKET POSITIONING FOR INWARD OPENING
BRACKET POSITIONING FOR OUTWARD OPENING
C
PM
INWARD OPENING
OUTWARD OPENING
PM
B
C
735 mm
B
Fig. 5
Fig. 4
ELECTRICAL CONNECTION
SET-UP
6- Before installing the motor, open the rear section af-
ter releasing by means of the safety key supplied –
Fig. 6 -
7- Loosen the internal screw by means of a Phillips
screwdriver
-Fig. 7 -. Raise the top casing by tilting it by a couple of
degrees, then pull out horizontally. - Fig. 8 -
8- Remove the lower casing by loosening the 3 lower
screws.
- Fig. 8 -
9- The rear wall of the lower casing has a blank-out sec-
tion for cable routing. Fix the cable using a cable
clamp PG11 - Fig. 9 -
Use an outdoor cable that remains flexible
at low temperatures.
OPENING ANGLE 90° OPENING ANGLE 100° OPENING ANGLE 110°
B C B C B C
180 105
170 115 160 95
160 118 150 105 130 120
150 130 140 120 120 130
140 140 130 130 110 140
130 150 120 135 110 150
120 160 110 145
110 167 100 155
100 176 90 165
90 185
Warning: to ensure correct gate movement, use values in the shaded band.
The gate opening (or closing) time varies according to the selected values B and C.
Fig. 6
Fig. 7
Fig. 8
!
WARNING:
if inclined
excessively, the
connector tooth
may break.
Fig. 9
1
2
!
PUNCH-OUT WALLS
