6 of 12
7 of 12

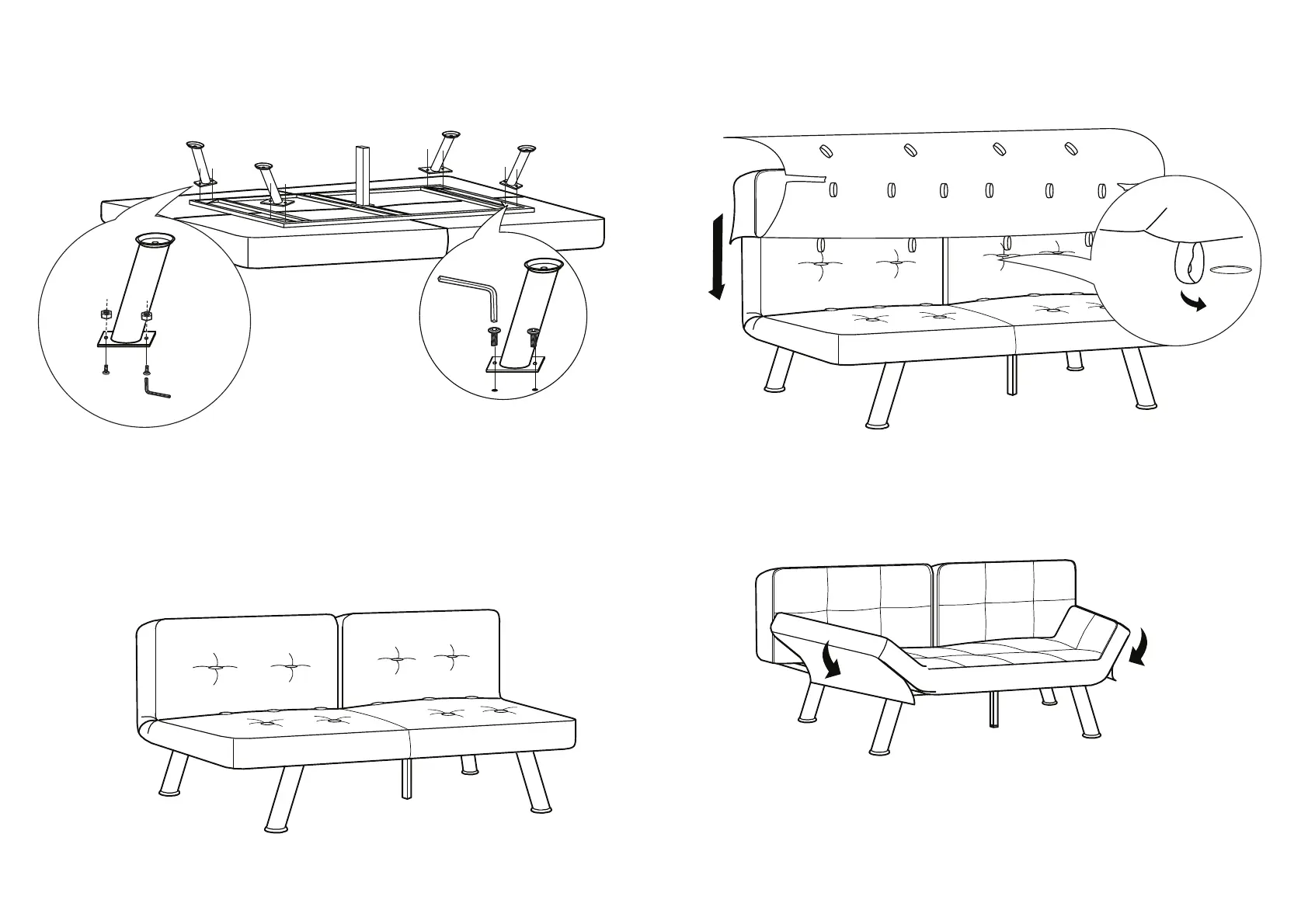

Carefully lift and turn assembled unit onto its legs. Lift backrest to sofa position as
shown below (refer page 9 “Operating Your Unit” ).
6
Begin to place the cover onto the back of the sofa.
Slip the cover onto both sides of the backrest at the same time.
Secure the inside of the cover with the elastic loops and pegs
located on the sofa body. Ensure all pegs on the backrest and
center of the sofa are secured.
7
5
Align the front legs in the correct direction and secure two bolts with the Allen
key. Next, Align the back legs in the correct direct direction and secure two
bolts and two nuts again using the Allen key provided.
Lift the armrest to the desired position as shwon below (refer page 9 “Operating Your
Unit”). Now start to slip on the armrest cover as shown below.
8
