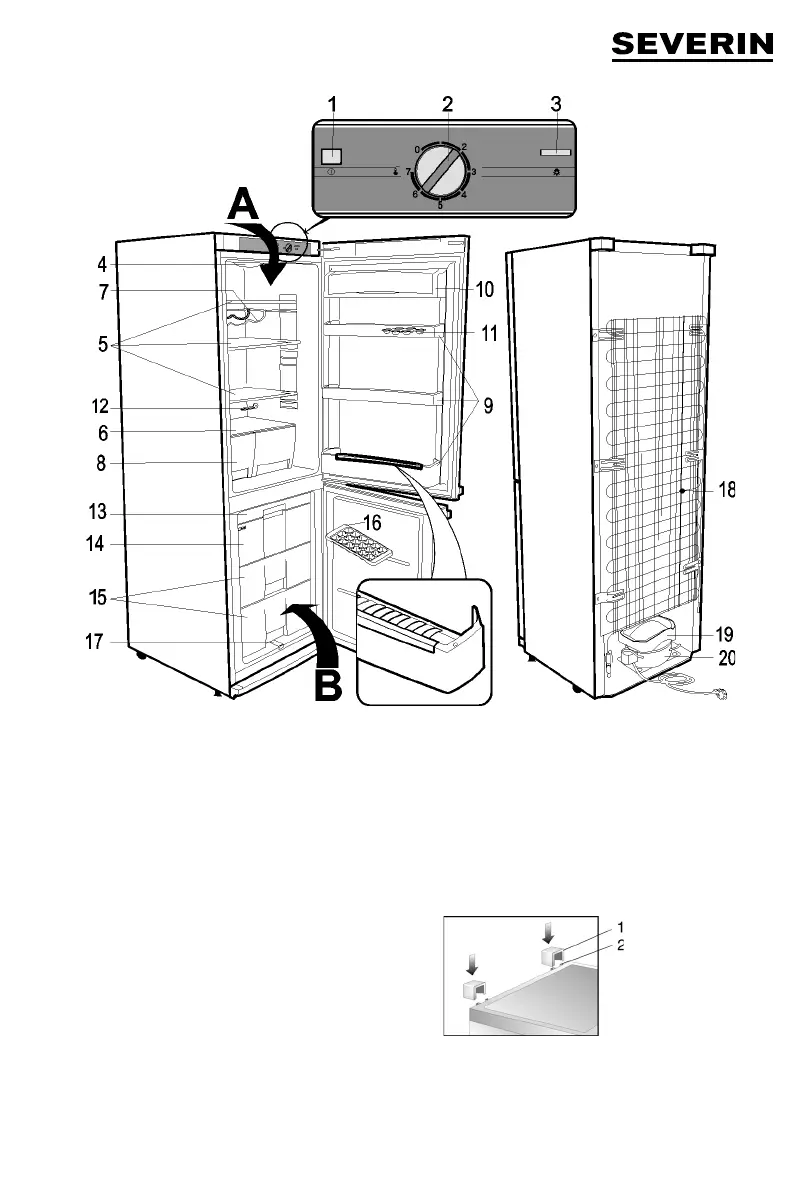

1. Mains indicator light (green)
2. Temperature control
3. On/Off switch for interior light
4. Interior light
5. Storage shelves (height-adjustable)
6. Glass storage shelf
7. Bottle rack
8. Vegetable/fruit fresh storage compartment
9. Door storage
10. Butter/cheese storage compartment
11. Egg storage
12. Drain channel cleaning tool
13. Freezer tray
14. Quick-freeze compartment
15. Freezer compartments
16. Ice-cube tray
17. Freezer unit melt-water drain
18. Condenser
19. Melt-water evaporation tray
20. Compressor
Before using for the fi rst time
∙ Remove any exterior and interior packaging materials
completely, including the red transport securing devices.
∙ The packaging materials must be properly disposed of.
∙ NOTE: When the door to the freezer unit is opened, a
small red component will fall out; this is for transport only
and can be disposed of.
∙ Fit the two spacer elements (1, provided) into the
corresponding guide slots (2) on the rear.
∙ Before it is connected to the mains, the unit must be
thoroughly checked for transport damage, including its
power cord.
∙ Clean the unit as described in the section De-frosting
and cleaning.
