5
Electrical installation
Cable routing and cable shielding
Operating Instructions – MOVIGEAR
®
performance
79
5.7 Cable routing and cable shielding

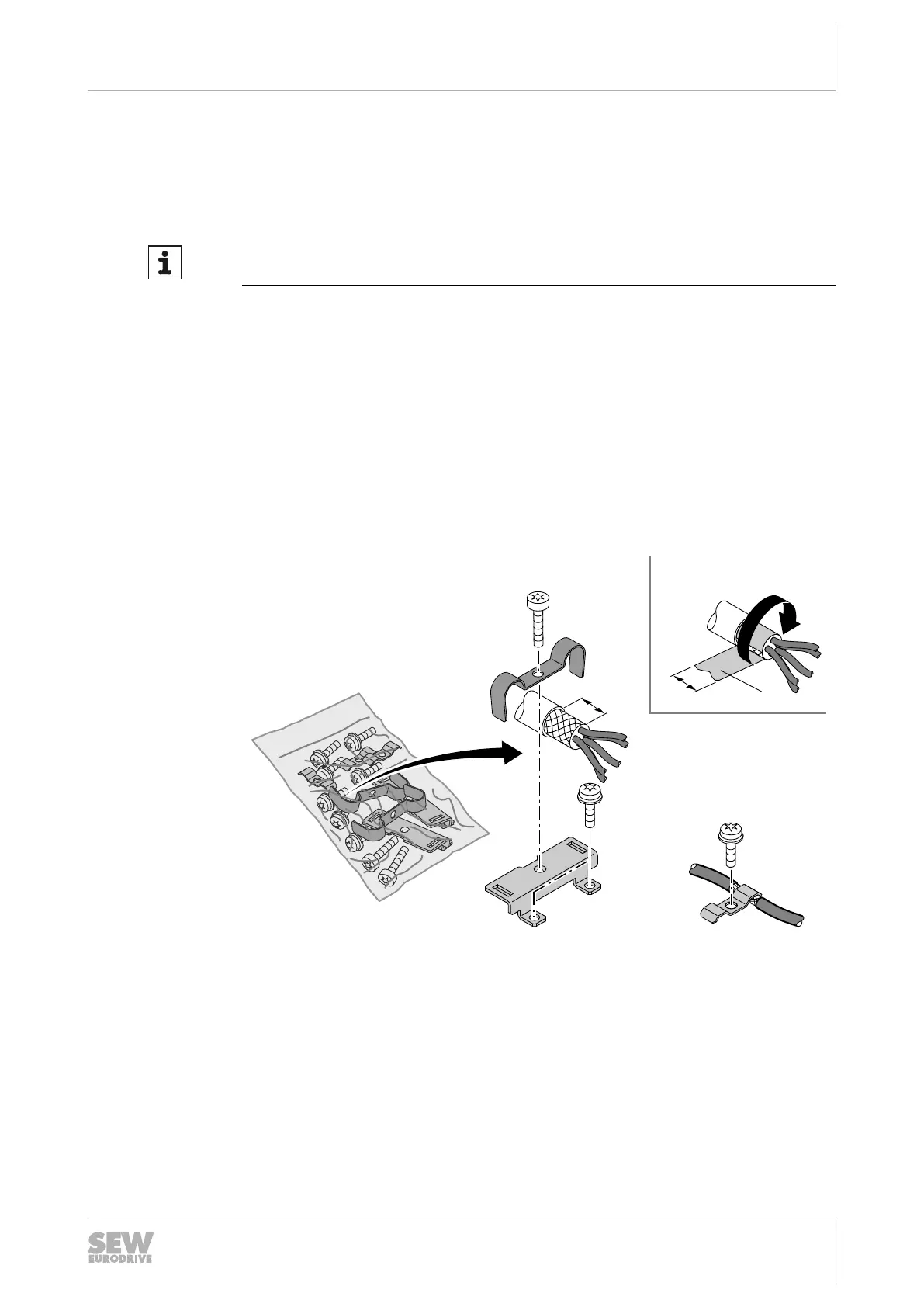

5.7.1 Accessory bag with installation equipment (part number 18241395)
INFORMATION
For some installation variants, you do not need all the parts of the accessory kit.
Each MOVIGEAR
®
drive unit is delivered with an accessory bag that contains installa-
tion equipment for cable shielding (except for when the order didn't include all possible
connections as plug connector design):
• A1: Installation material for line and hybrid cables:
2 x shield clamps with shield plate and screws to connect the shield of line cables
or hybrid cables (outer shield).
• A2: Conductive film:
2 x pieces of conductive film to wind around the braid shield. Use the conductive
film if required.
• B: Installation equipment for signal lines:
3 x shield clamps with screw to connect the shield of line cables (e.g. STO).
A1:
A2:
B:
2x
2x
4x
2x
3x
3x
M4x12
(1.4 - 1.6 Nm)
M4x10
(2.0 Nm)
M4x10
(2.0 Nm)
20mm
20mm
3x
2x
25603711499
25945475/EN – 04/2019
