This setup is an effective way to improve the connections.
Rotate the antenna until the best direction is achieved. Then, secure it
with an additional rope attached to a nearby object such as a window
or door.
Note: Any materials can be used for this setup with the exception of
metal. Test performances expected are similar to the four loop an-
tenna described on page 35.

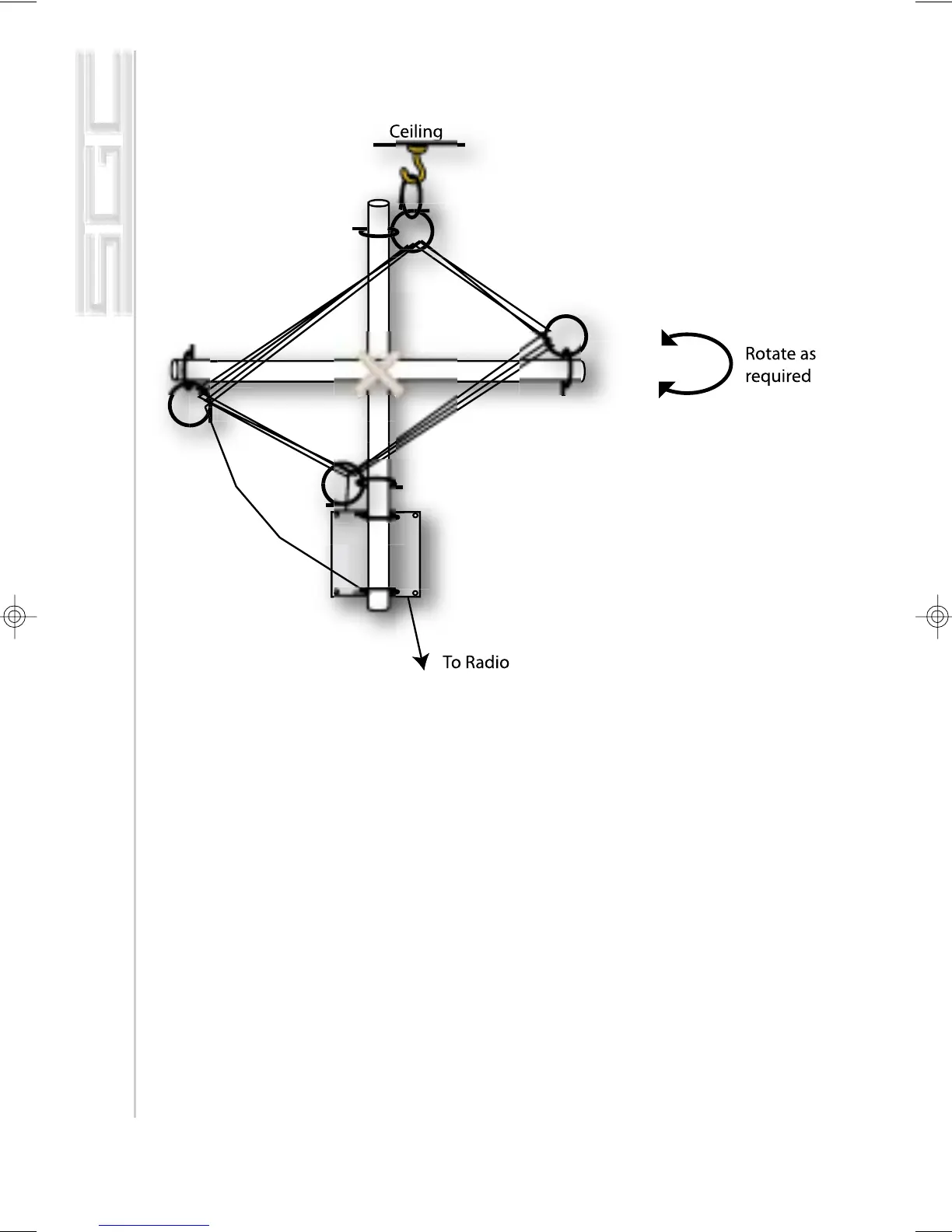

Note: Drawing shows construc-
tion details and is not to scale.
Configuration 601
