Bottom of band
f (MHz)
Middle of band
f (MHz)
Top of band
f (MHz)
Fwd Ref Fwd Ref Fwd Ref
80 3.510 MHz
16w .5w
3.750 MHz
16w .2w
3.990 MHz
16w 1.2w
VSWR 1.1:1 1.1:1 1.1:1
40 7.010 MHz
16w .1w
7.150 MHz
16w .1w
7.290 MHz
16w .1w
VSWR 1.1:1 1.1:1 1.1:1
30 10.110 MHz
16w .1w
10.125 MHz
16w 1.2w
10.140 MHz
16w 0w
VSWR 1.1:1 1.1:1 1:1
20 14.010 MHz
16w .1w
14.175 MHz
16w 0w
14.340 MHz
16w 0w
VSWR 1.1:1 1:1 1:1
15 21.010 MHz
15w .8w
21.225 MHz
15w 1w
21.440 MHz
15w .1w
VSWR 1.1:1 1.1:1 1.1:1
12 24.900 MHz
14w 1.2w
24.940 MHz
14w 1w
24.980 MHz
14w 1w
VSWR 1.1:1 1.1:1 1.1:1
10 28.010 MHz
13.5w 1w
28.850 MHz
14w 1w
29.690 MHz
14w .6w
VSWR 1.1:1 1.1:1 1.1:1

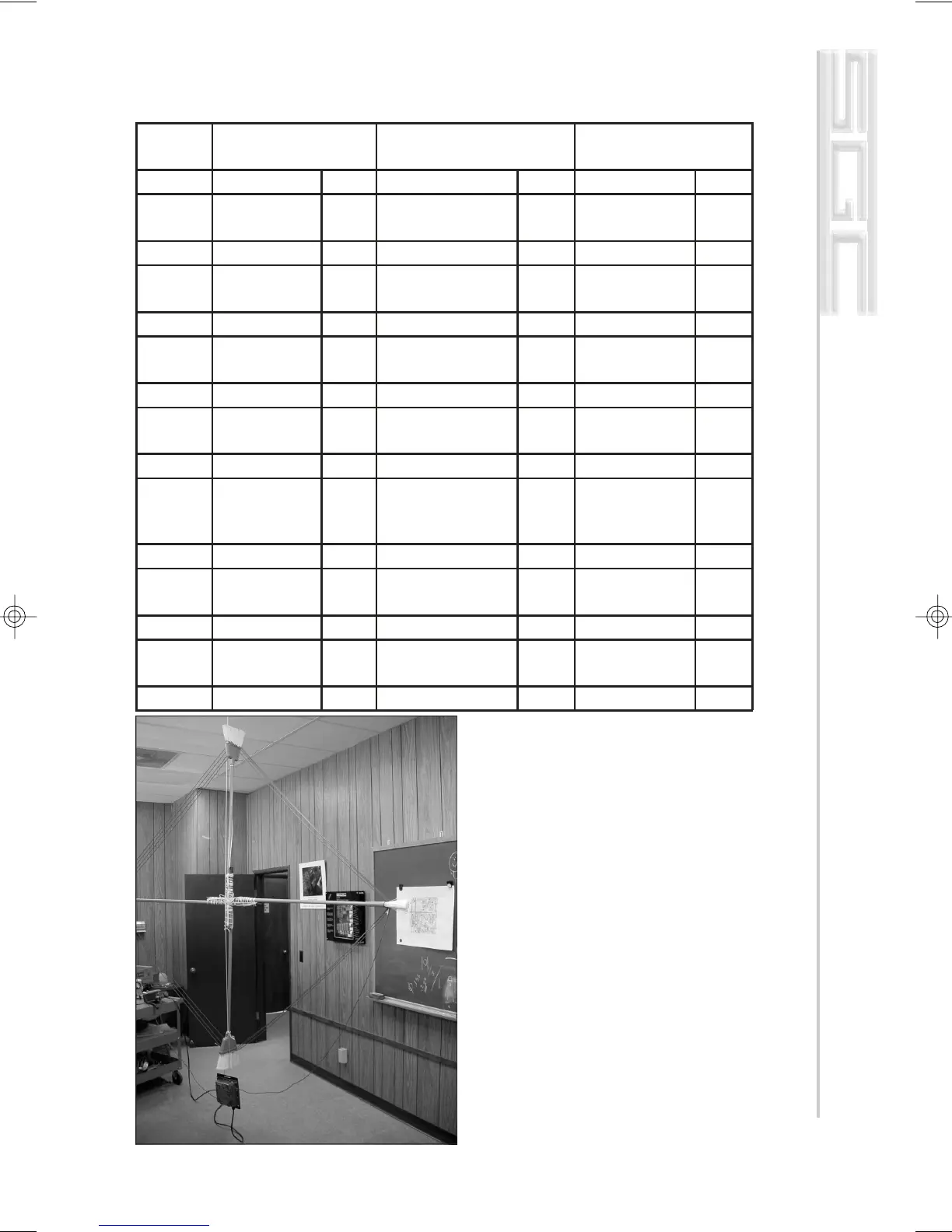

Antenna Installation: Adjustable Directive Loop Antenna,
mounted inside.
Lowest usable frequency =
2.650 MHz
Fwd = 18w
Ref = 3w
SWR = 1.4:1
