Sharp 27L-S180 - Schematic Diagram Main-1 Unit (Models 27 L-S100, CL27 S10)

38 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

18

27L-S100/27L-S180

CL27S10/CL27S18

87109654321

A

B

C

D

E

F

G

H

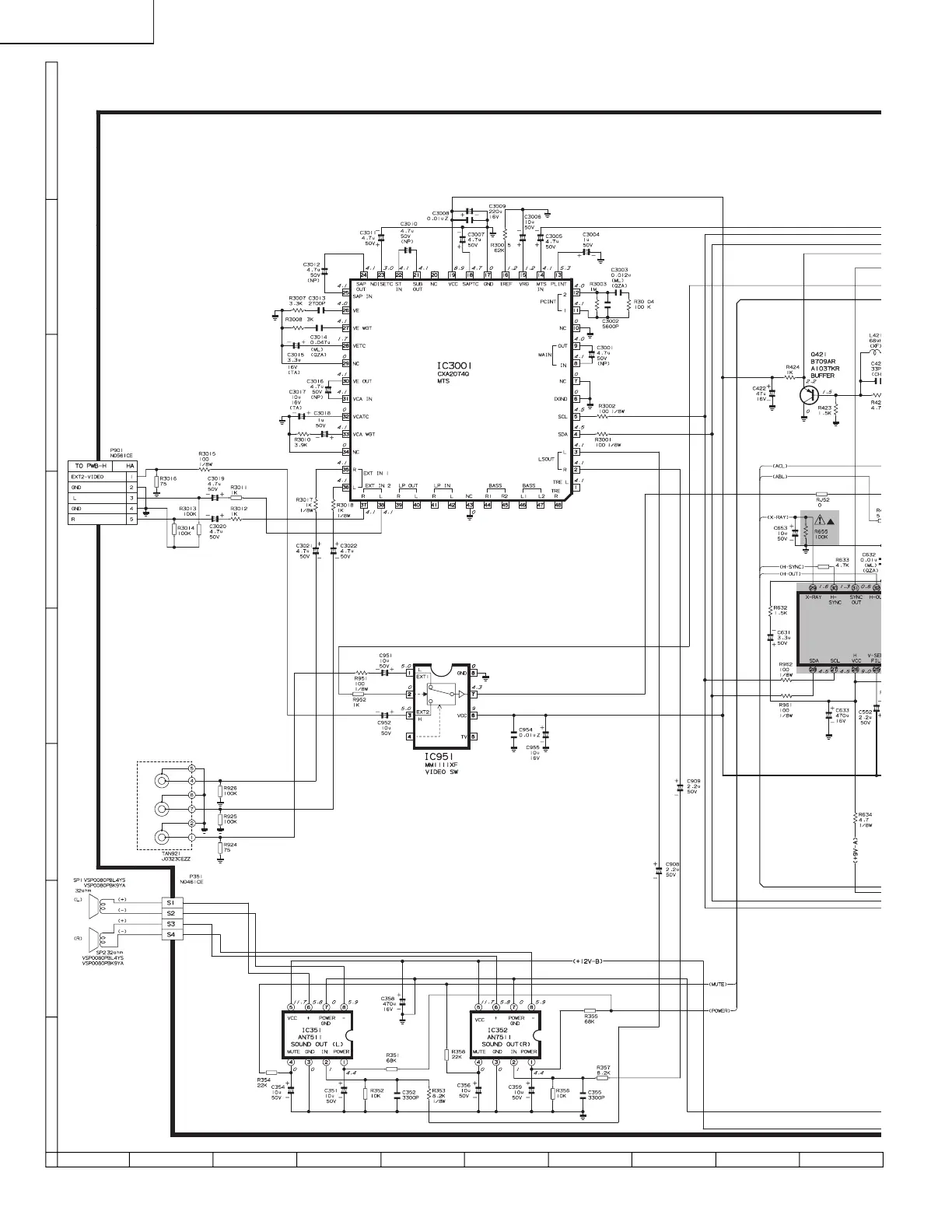

MODEL 27L-S100, CL27S10 SCHEMATIC DIAGRAM: MAIN-1 Unit
