38
AH-A07BE-C/09BE-C
AH-A07BE/09BE/12BE
AY-A07BE-C/09BE-C
AY-A07BE/09BE/12BE

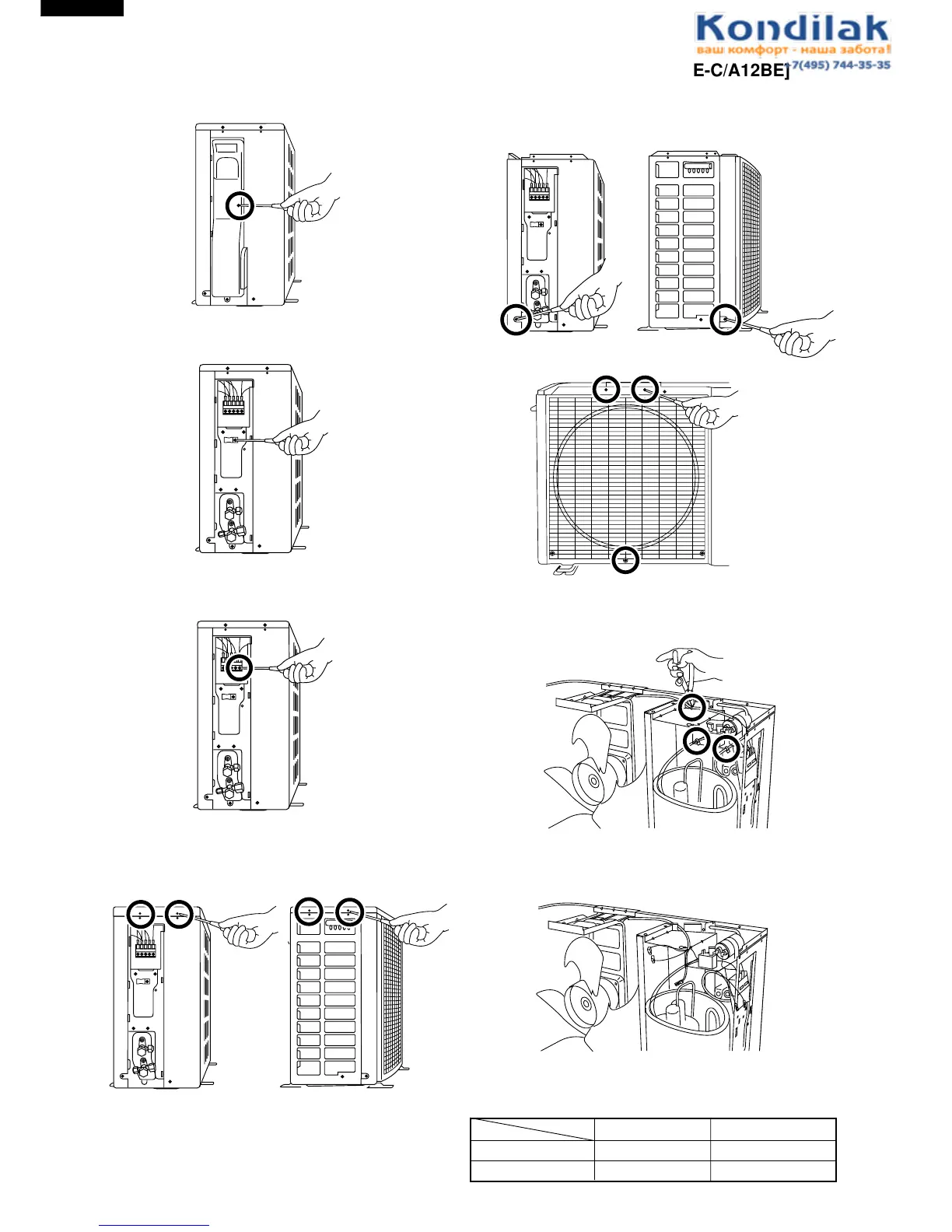

FOR OUTDOOR UNIT [AU-A09BE/A09BE-C/A12BE, AE-A09BE/A09BE-C/A12BE]
CAUTION : DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1. Loose a screw fixing the side cover.
2. Loose a screw fixing the cord clamp.
3. Loose the unit-to-unit cord.
4. Loose 4 screws fixing the top panel.
5. Loose 5 screws fixing the front panel.
6. Cut 3 nylon bands.
Right side view Left side view
Front view
7. Remove 5 terminals. [AE-A09BE/A09BE-C/A12BE]
Remove 3 terminals. [AU-A09BE/A09BE-C/A12BE]
AE-A09BEA09BE-C/A12BE AU-A09BEA09BE-C/A12BE
Fan motor 3 3
Reverse valve 2 0
Right side view Left side view
