AH-A07BE-C/09BE-C
AH-A07BE/09BE/12BE
AY-A07BE-C/09BE-C
AY-A07BE/09BE/12BE
1
Left side cover
Condenser
Right side cover
Cabinet
Fan motor Bulkhead
Propeller fan
Compressor
AE-A07BE/A07BE-C
Fan guard
2
3
1
1
3
AU-A07BE/A07BE-C
FOR OUTDOOR UNIT MODEL AE-A07BE/A07BE-C AND AU-A07BE/A07BE-C
CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE ANY SERVICING
1 Remove the four (4) screws holding the terminal
cover and right side cover. Then take them out.
2 Remove the three (3) screws holding the left side
cover and take it out.
3 Remove the another screws holding the cabinet
and take it out.
NOTE: Number as shown in following
figure is the moval order.

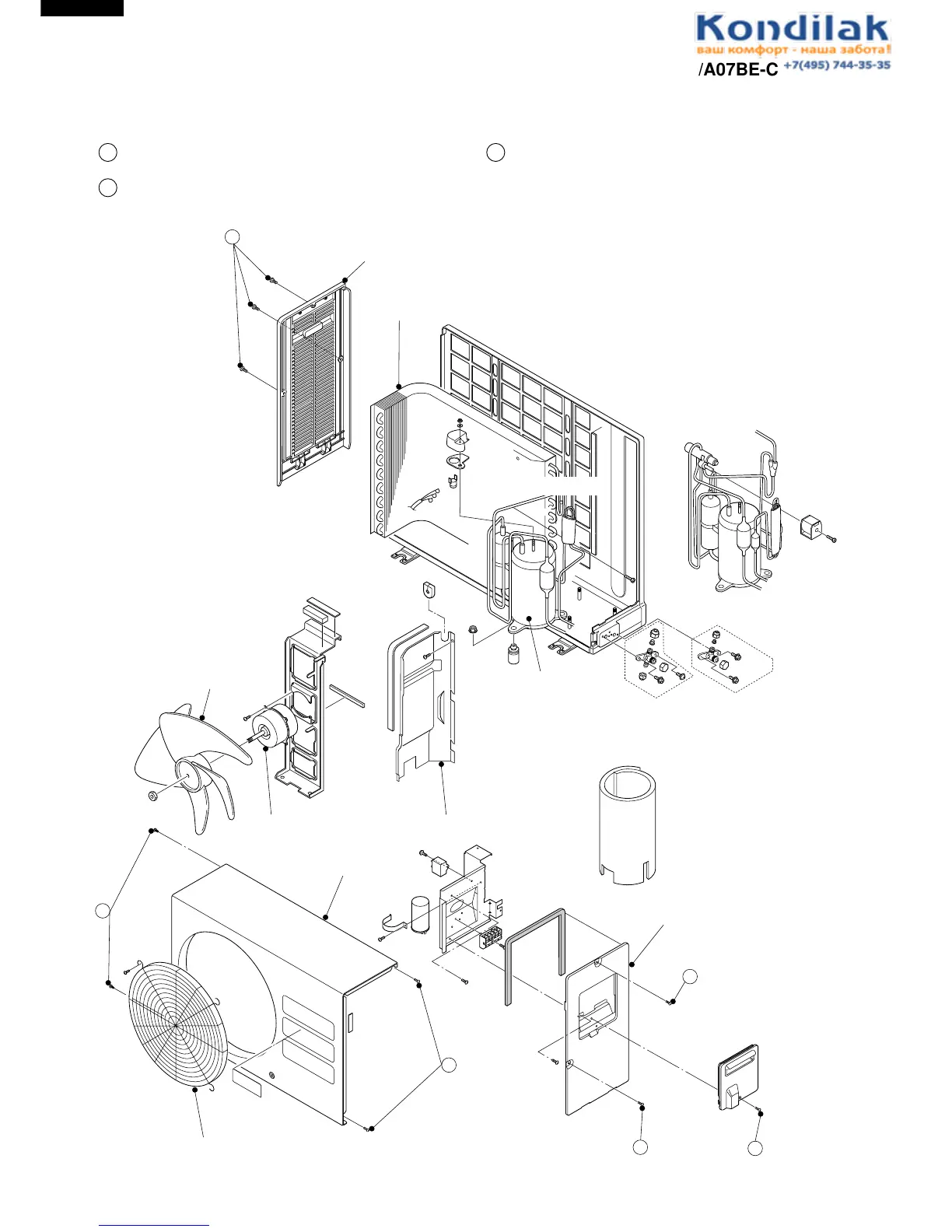

Fig. D-1. OUTDOOR UNIT
