Sharp AF-S120FX

AFS120FX
8

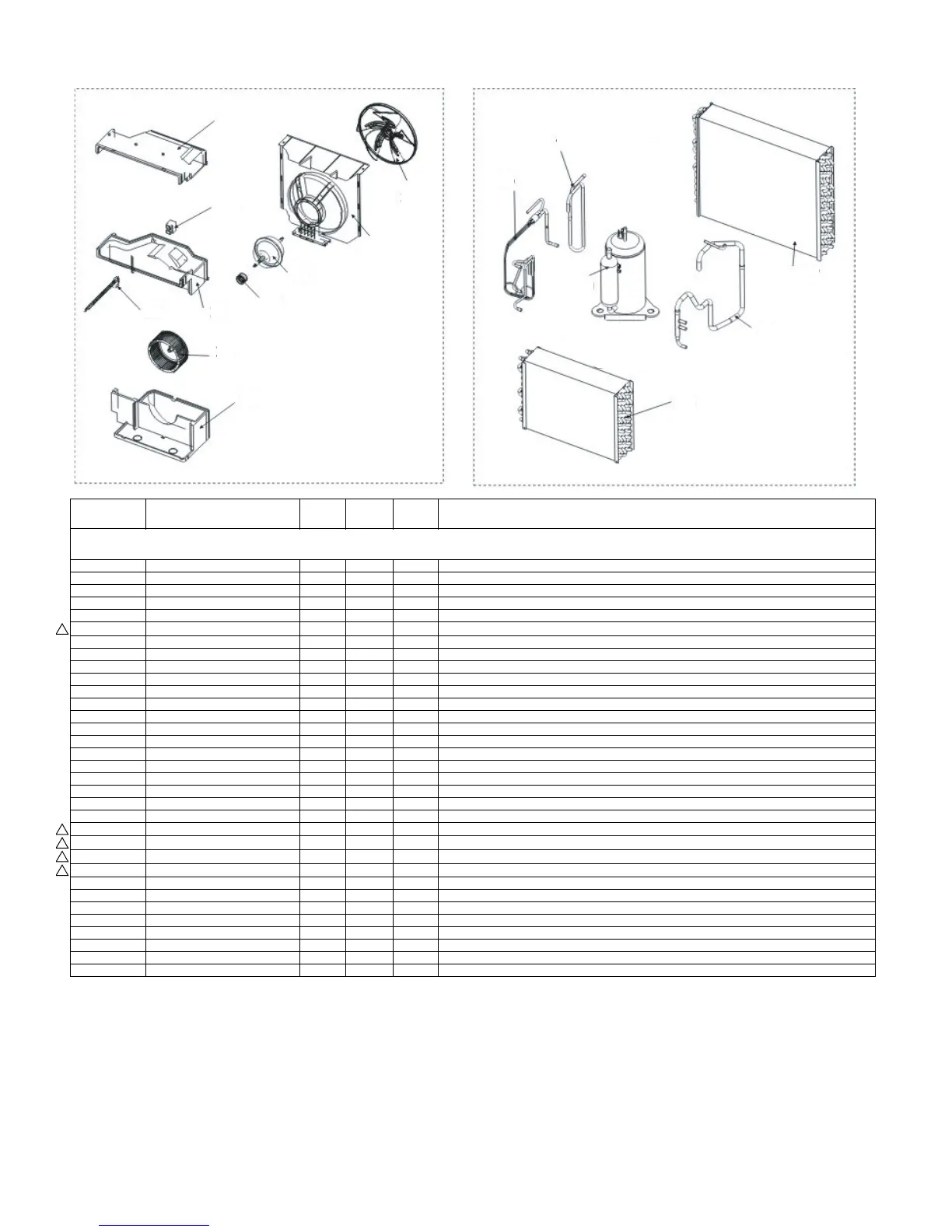

[8]  Airflow system  Refrigerant system (Medium)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[8]  Airflow system  Refrigerant system (Medium)
25 PKESSA101JBFZ AR Lower fan shell
26 NFANSA048JBFA AR Centrifugal fan
27 MLEVPA022JBFA AD Fresh air door
28 PKESSA102JBFZ AP Med fan shell
29 PSEL-C855JBEZ AD Water proof rubberring
!
30 CMOTLB 184JBEZ BW Fan motor
31 PKESPA111JBFZ AX Rear separating board
32 NFANPA126JBFA AP Propeller fan
33 PGIDMA051JBFA AF Guide for fresh air door
34 PKESSA103JBFZ AN Up fan shell
35 PEVA-A560JBEZ BS Evaporator[S100FX]
35 PEVA-A571JBEZ BS Evaporator[R100FX]
35 PEVA-A572JBEZ BV Evaporator[R120FX]
35 PEVA-A573JBEZ BU Evaporator[S120FX][S125FX]
36 PPIPCH323JB1Z AK Suction pipe[S100FX][R120FX]
36 PPIPCH397JB1Z AP Suction pipe[R100FX]
36 PPIPCH400JB1Z AQ Suction pipe[S120FX][S125FX]
37 PCON-A550JBE Z BX Condenser[S100FX]
37 PCON-A556JBE Z BU Condenser[R100FX]
37 PCON-A557JBE Z BX Condenser[R120FX]
37 PCON-A558JBE Z BX Condenser[S120FX][S125FX]
!
39 PCMPRA477JBEZ CA Compressor[S100FX]
!
39 PCMPRA490JBEZ CC Compressor[R100FX]
!
39 PCMPRA491JBEZ CD Compressor[R120FX]
!
39 PCMPRA492JBEZ CC Compressor[S120FX][S125FX]
42 PPIPCH322JB1Z AN Discharge pipe[S100FX]
42 PPIPCH396JB1Z AN Discharge pipe[R100FX]
42 PPIPCH398JB1Z AN Discharge pipe[R120FX]
42 PPIPCH399JB1Z AM Discharge pipe[S120FX][S125FX]
43 DCPY-A345JBK Z AY Capillary assembly[S100FX]
43 DCPY-A351JBK Z AX Capillary assembly[R100FX]
43 DCPY-A352JBK Z AY Capillary assembly[R120FX]
43 DCPY-A353JBK Z AY Capillary assembly[S120FX][S125FX]
34
33
30
31
32
43
42
39
35
36
37
27
28
26
25
29
Air flow system
Refrigerant system
