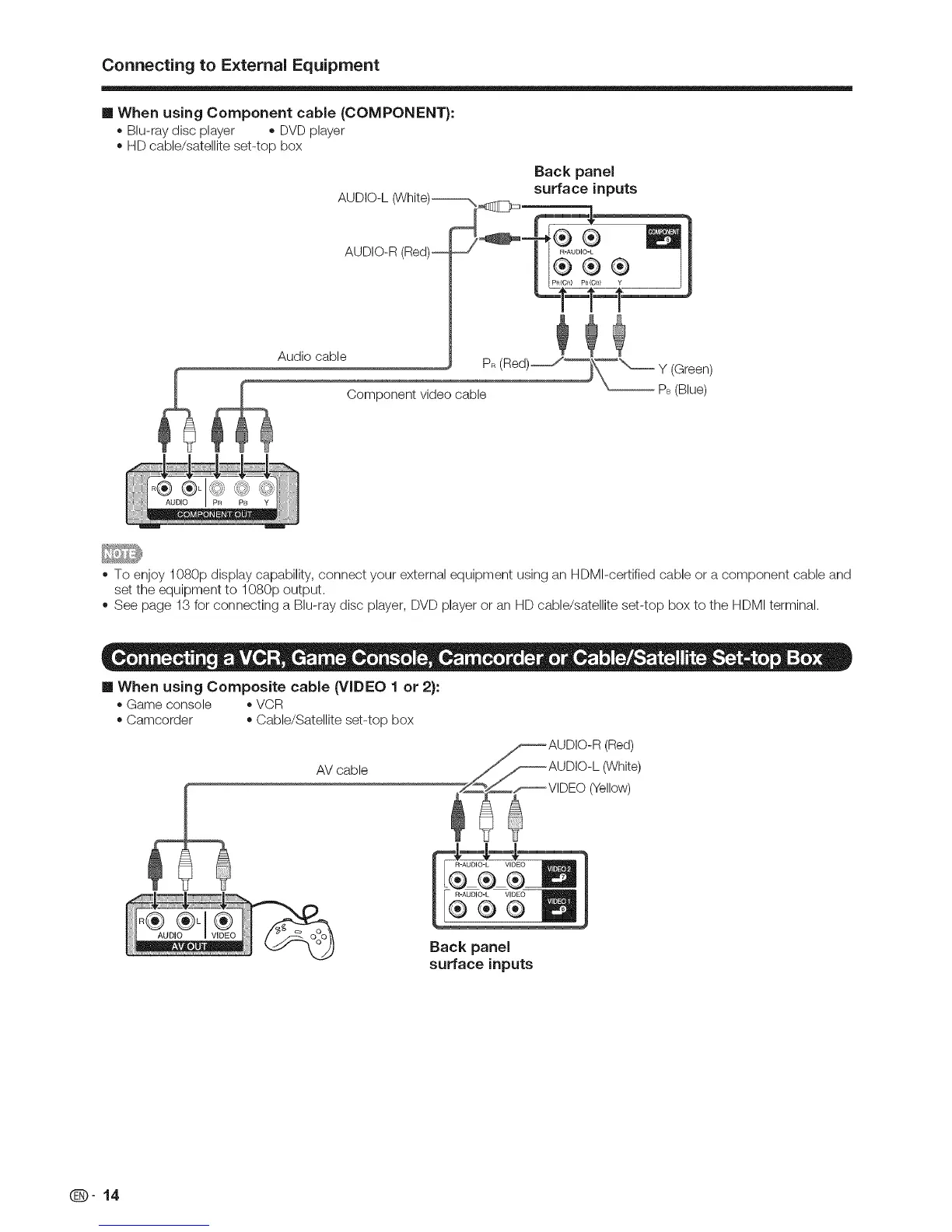

Connecting to External Equipment
[] When using Component cable (COMPONENT):
• Blu-ray disc player • DVD player
• HD cable/satellite set-top box
Back panel
surface inputs
AUDIO-L (White)._ __
Audio cable PR(Red)__._ y (Green)
Component video cable PB(Blue)
To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and
set the equipment to 1080p output.
See page 13 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
[] When using Composite cable (VIDEO 1 or 2):
Game console • VCR
Camcorder • Cable/Satellite set-top box
AV cable
(Red)
(White)
(Yellow)
Back panel
surface inputs
