Sharp Carousel R-1214 User Manual

8

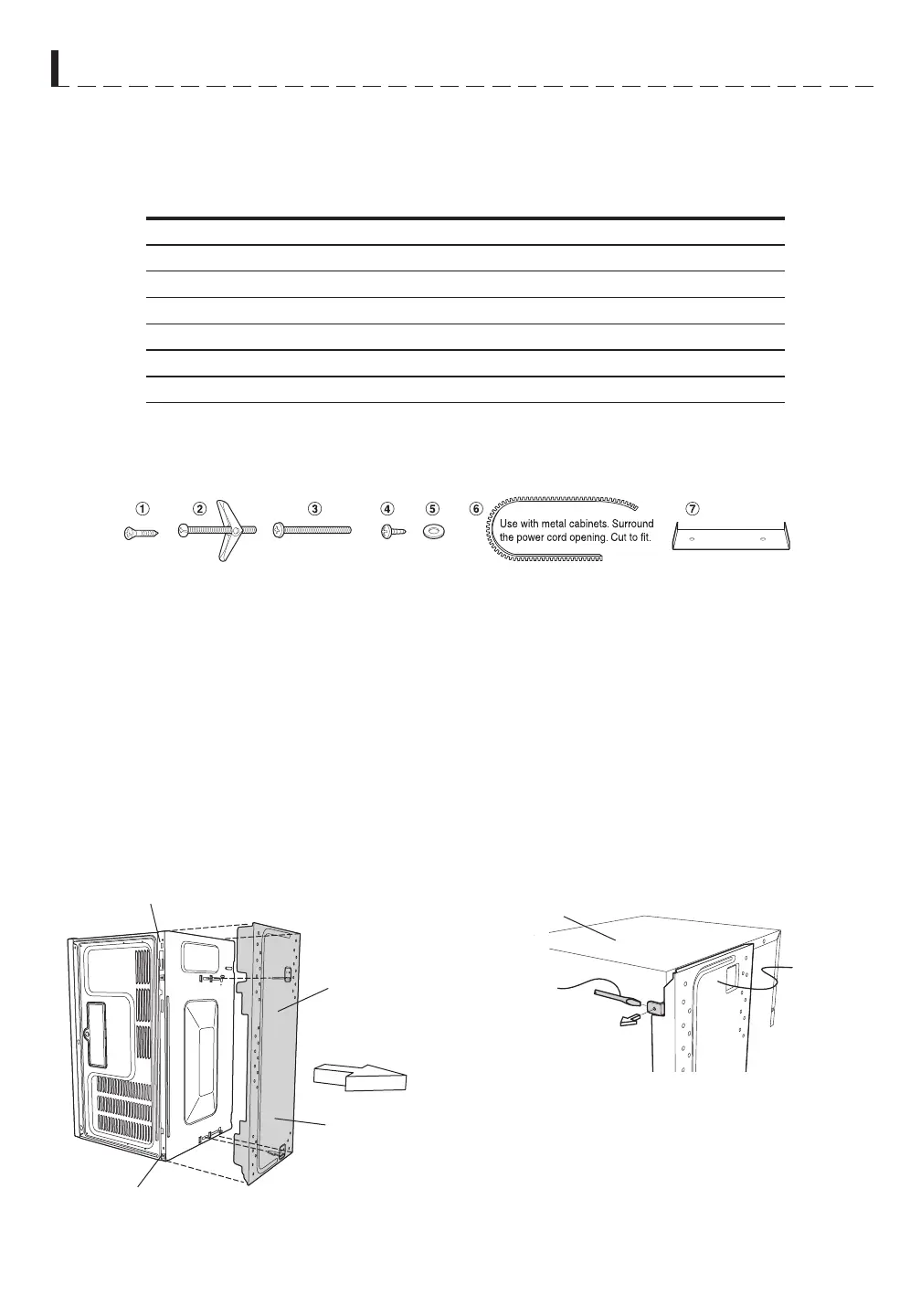

UNPACKING AND INSTALLATION INSTRUCTIONS
6 PREPARATION OF THE OVEN
1. Turn oven on the side. See Figure 4.
2. Follow steps (A)-(D) to remove mounting plate from the back of the oven as shown in Figure 4.
(A) Release mounting plate by pulling out the lever that is on the bottom of the oven. See Figure 5.
(B) When lever is out, pull that side of the mounting plate away from the oven. See Figure 4.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side
.
Figure 4
Figure 3
Parts shown not to common scale.
ITEM NAME QUANTITY PART CODE
1 Wood Screw 5 X 30 mm 6 XTSSD50P35000
2 Toggle Bolt with nuts #10 - 24 X 50 mm 4 LX-BZ0195WRE0
3 Top Cabinet Screw 5 X 60 mm 2 XBRSD50P60000
4 Tapping Screw 4 x 12 mm 3 XOTSD40P12000
5 Flat Washer 30 mm diameter 2 XWHSD50-16300
6 Grommet 1 LBSHC0040MRE0
7 Scale Plate 2 LANG-B003MRP0
5 INSTALLATION HARDWARE
The INSTALLATION HARDWARE items 1 - 7 are in a small bag. Item 8 is packed separately. All items are in a
small carton packed below the oven.
(C)
(D)
(B)
(A)
Figure 5
Use screwdriver to
assist in releasing
mounting plate.
Mounting Plate
Bottom of
Microwave
(A)

Sharp Carousel R-1214 Specifications

General

Style	over-the-range
Color	stainless steel
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1100 watts
Current	13 amperes

Weight and Dimensions

Depth	15.56 inches
Height	14.06 inches
Width	23.88 inches
Net Weight	55 pounds
