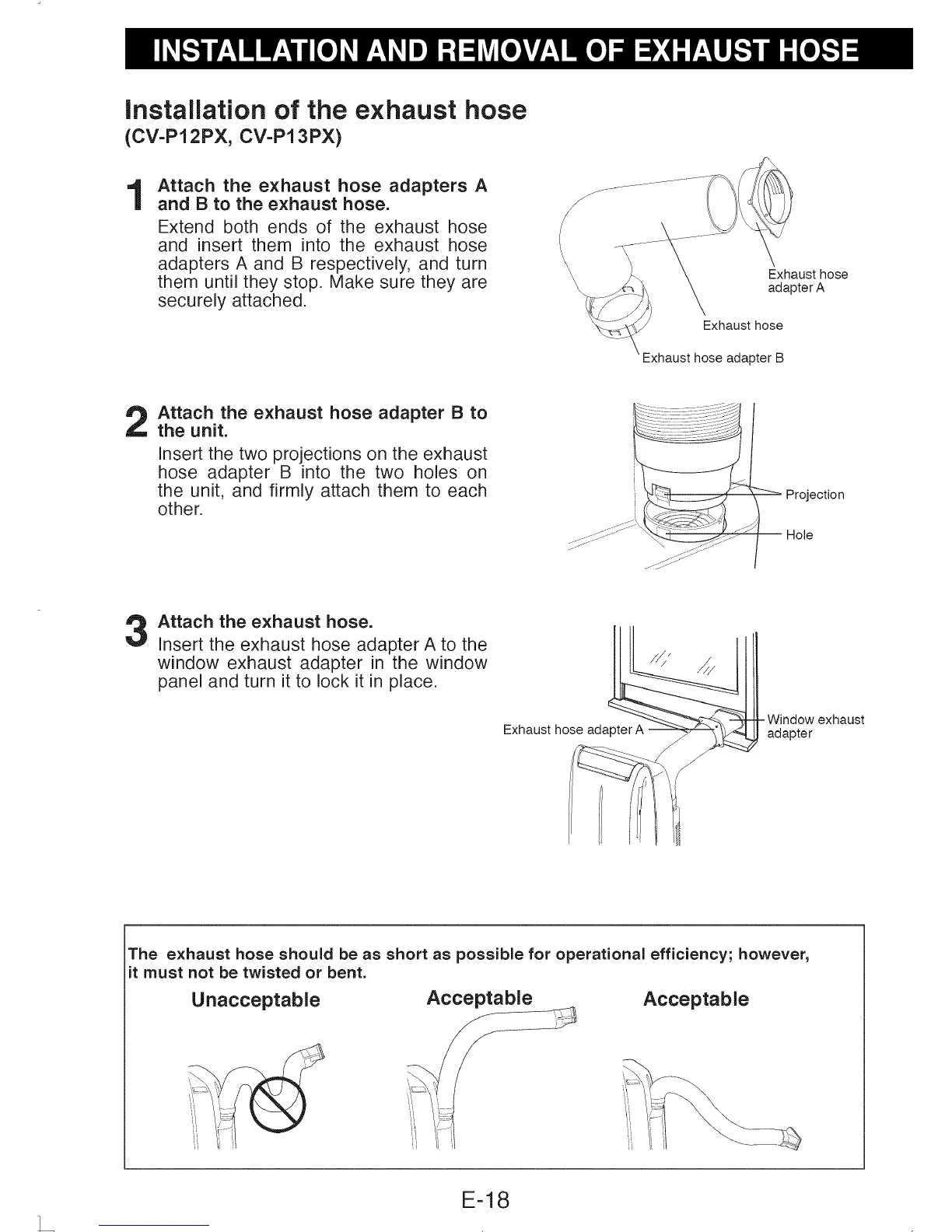

Sharp CV-P12PX

Installation of the exhaust hose
(CV=P12P×, CV=P13P×)
Attach the exhaust hose adapters A
and B to the exhaust hose.
Extend both ends of the exhaust hose
and insert them into the exhaust hose
adapters A and B respectively, and turn
them until they stop. Make sure they are
securely attached.
\
\
\
\
Exhaust hose
adapter A
Exhaust hose
Exhaust hose adapter B
Attach the exhaust hose adapter B to
the unit.
Insert the two projections on the exhaust
hose adapter B into the two holes on
the unit, and firmly attach them to each
other.
Projection
Hole
Attach the exhaust hose.
Insert the exhaust hose adapter A to the
window exhaust adapter in the window
panel and turn it to lock it in place.
Exhaust hose adapter A
- Window exhaust
adapter
The exhaust hose should be as short as possible for operational efficiency; however,
it must not be twisted or bent.
Unacceptable Acceptable Acceptable
