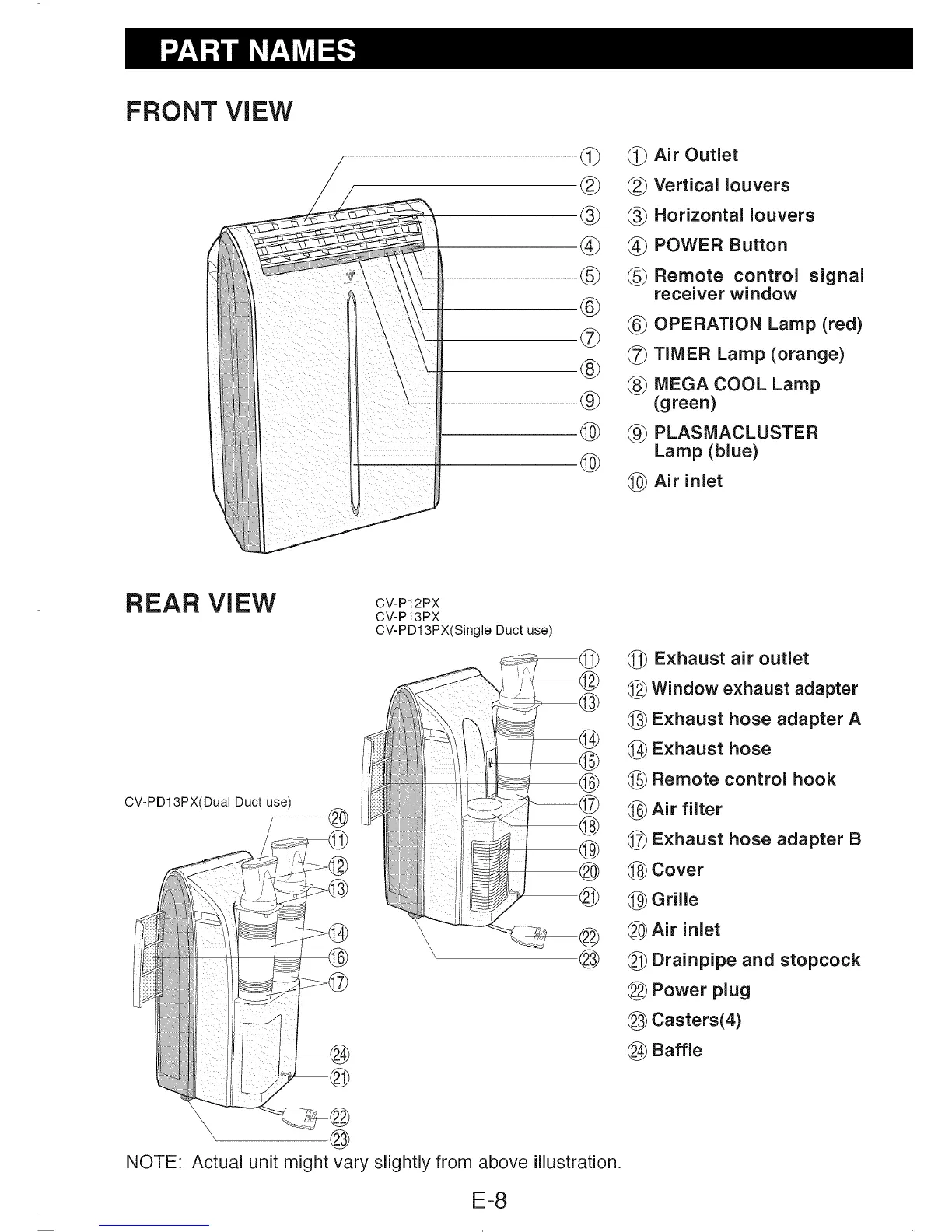

FRONT VIEW
(_ (_) Air Outlet
(_ (_ Vertical louvers
(_ (_ Horizontal louvers
(_ (_ POWER Button
_ Remote control signal
receiver window
@
(_ @ OPERATION Lamp (red)
(_ TIMER Lamp (orange)
@
@ MEGA COOL Lamp
(_ (green)
(_ (_ PLASMACLUSTER
(_ Lamp (blue)
(_ Air inlet
REAR VIEW
CV-PD13PX(Dual Duct use)
@
CV-P12PX
CV-P13PX
CV-PD13PX(Single Duct use)
@
@
@
@
@
@
@
@
@
(_ Exhaust air outlet
(_ Window exhaust adapter
(_ Exhaust hose adapter A
(_ Exhaust hose
(_ Remote control hook
(_ Air filter
(_ Exhaust hose adapter B
(_ Cover
(_ Grille
(_ Air inlet
(_ Drainpipe and stopcock
(_) Power plug
(_ Casters(4)
Baffle
NOTE:
\
Actual unit might vary slightly from above illustration.
E-8
