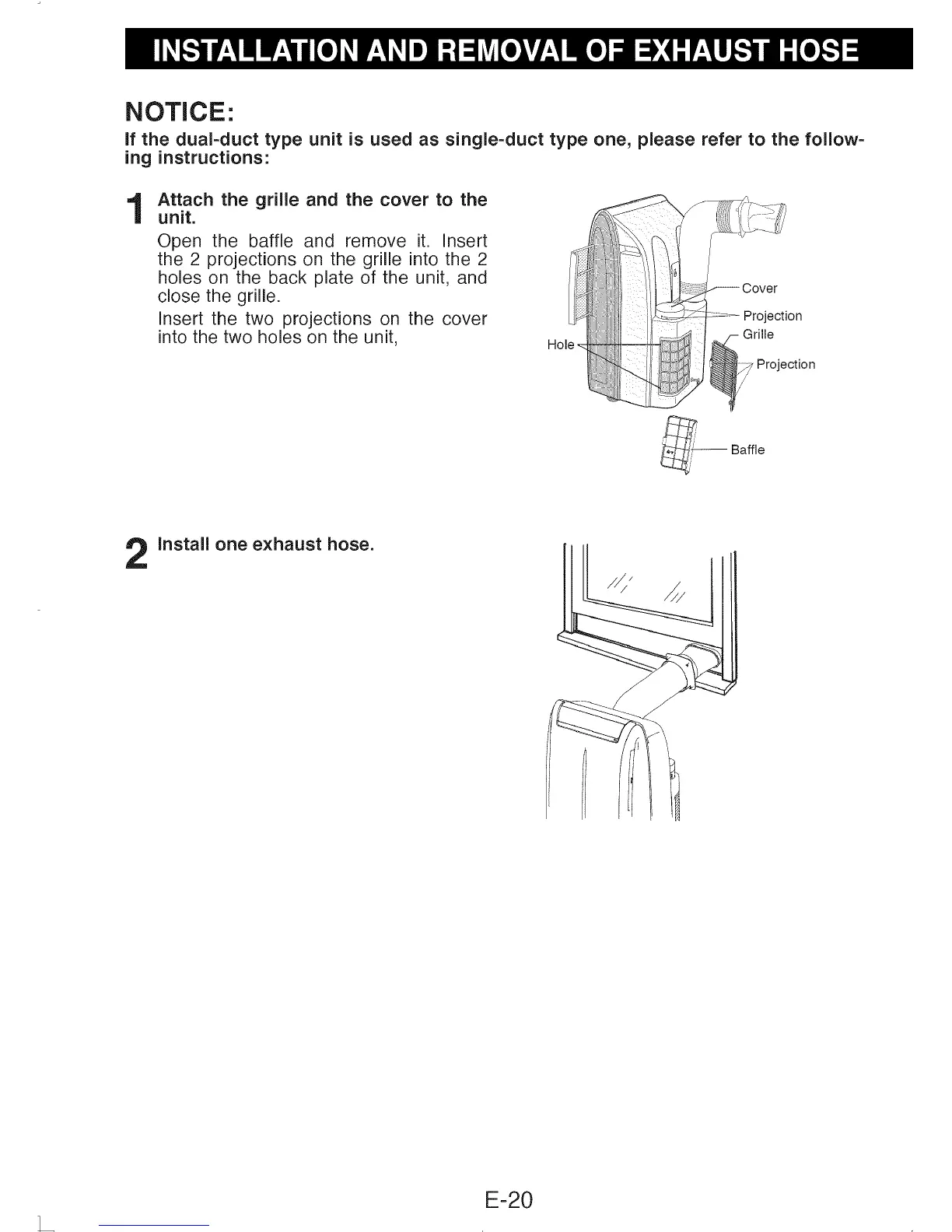

NOTICE"
If the dual-duct type unit is used as single=duct type one, please refer to the follow=
ing instructions:
Attach the grille and the cover to the
unit.
Open the baffle and remove it. Insert
the 2 projections on the grille into the 2
holes on the back plate of the unit, and
close the grille.
Insert the two projections on the cover
into the two holes on the unit,
Hole
Projection
Grille
7Projection
-- Baffle
Install one exhaust hose.
E-20
