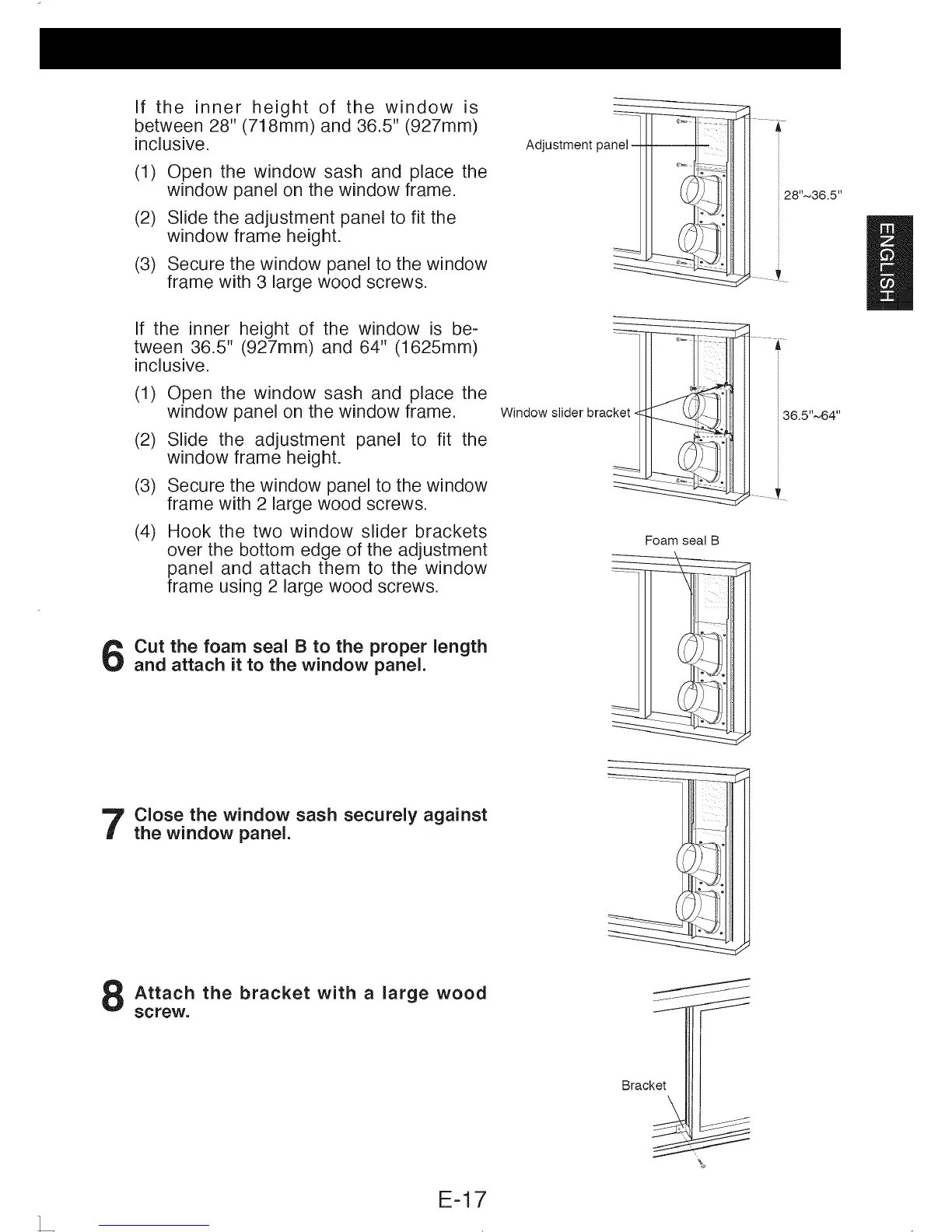

If the inner height of the window is
between 28" (718mm) and 36.5" (927mm)
inclusive.
(1) Open the window sash and place the
window panel on the window frame.
(2) Slide the adjustment panel to fit the
window frame height.
(3) Secure the window panel to the window
frame with 3 large wood screws.
If the inner height of the window is be-
tween 36.5" (927mm) and 64" (1625mm)
inclusive.
(1)
(2)
(3)
(4)
Open the window sash and place the
window panel on the window frame.
Slide the adjustment panel to fit the
window frame height.
Secure the window panel to the window
frame with 2 large wood screws.
Hook the two window slider brackets
over the bottom edge of the adjustment
panel and attach them to the window
frame using 2 large wood screws.
Adjustment panel
Window slider bracket
Foam seal B
28"N36.5"
• T
36.5"N64"
• •V
Cut the foam seal B to the proper length
and attach it to the window panel.
Close the window sash securely against
the window panel.
Attach the bracket with a large wood
screw.
E-17
Brack_
\
