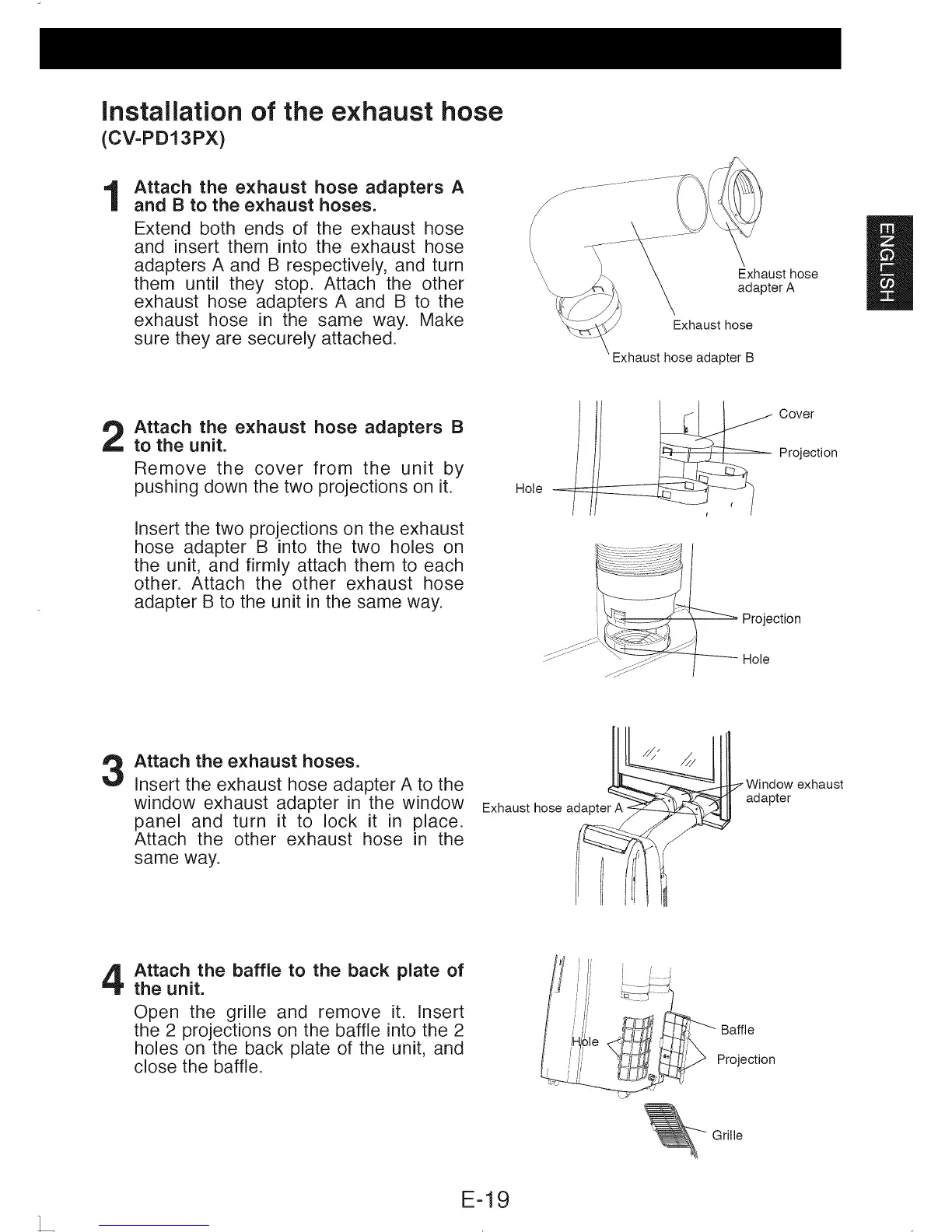

Sharp CV-PD13PX User Manual

Installation of the exhaust hose
(CV=PD13PX)
Attach the exhaust hose adapters A
and B to the exhaust hoses.
Extend both ends of the exhaust hose
and insert them into the exhaust hose
adapters A and B respectively, and turn
them until they stop. Attach the other
exhaust hose adapters A and B to the
exhaust hose in the same way. Make
sure they are securely attached.
\
\
\
\
\
Exhaust hose
adapter A
Exhaust hose
Exhaust hose adapter B
Attach the exhaust hose adapters B
to the unit.
Remove the cover from the unit by
pushing down the two projections on it.
Insert the two projections on the exhaust
hose adapter B into the two holes on
the unit, and firmly attach them to each
other. Attach the other exhaust hose
adapter B to the unit in the same way.
_ Cover
Projection
Hole
Attach the exhaust hoses.
Insert the exhaust hose adapter A to the
window exhaust adapter in the window
panel and turn it to lock it in place.
Attach the other exhaust hose in the
same way.
Exhaust hose adapter A -
Window exhaust
adapter
Attach the baffle to the back plate of
the unit.
Open the grille and remove it. Insert
the 2 projections on the baffle into the 2
holes on the back plate of the unit, and
close the baffle.
Grille
E-19
