FDD412A/B

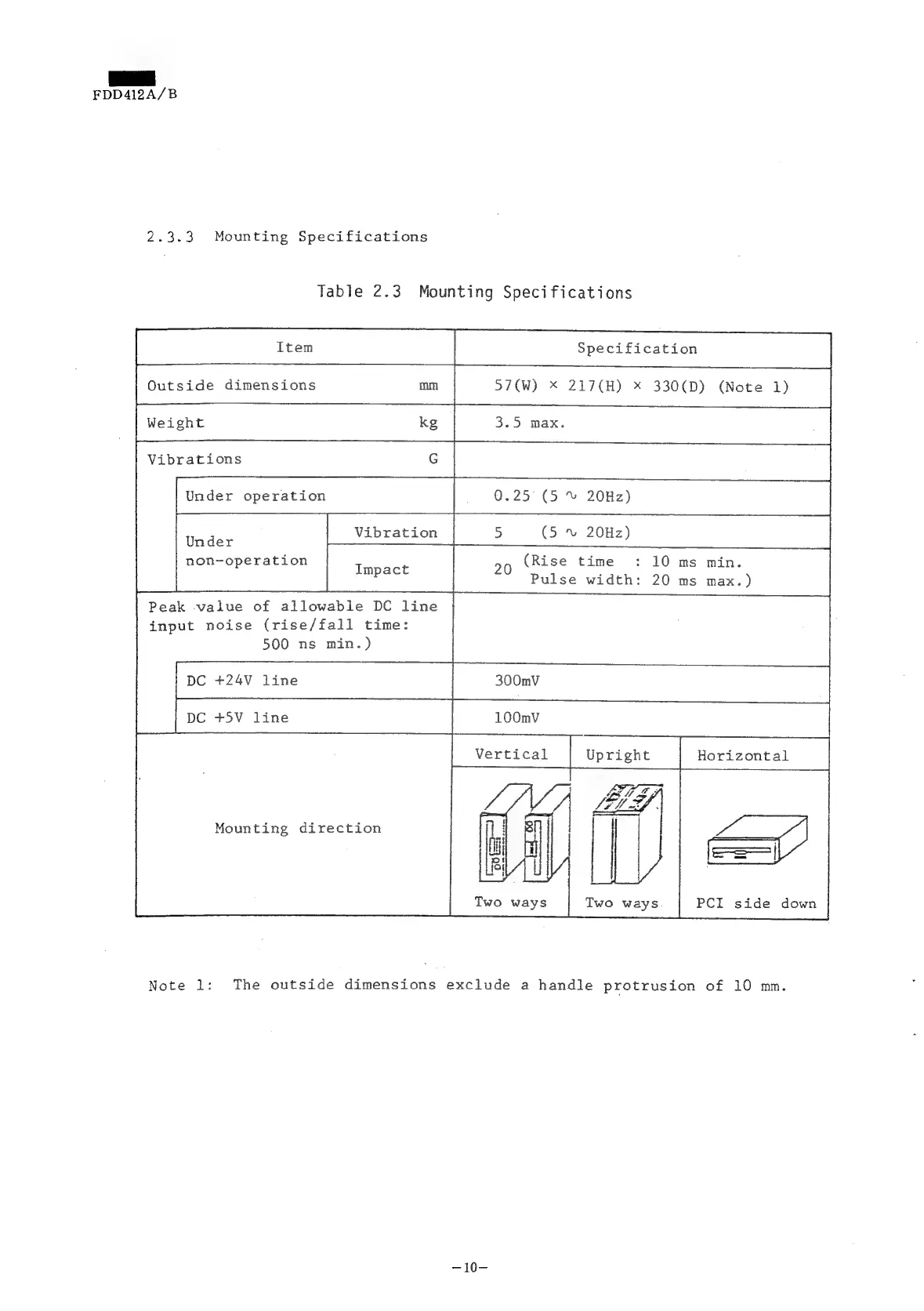

2.3.3 Mounting Specifications
Table 2.3 Mounting Specifications
Specification
Outside dimensions
57(W) X 217(H) * 330(D) (Note 1)
Vibrations
3.5 max.
Under operation
0.25 (5 % 20Hz)
Under Vibration
non-operation
Peak value of allowable DC line
input noise (rise/fall time:
500 ns min.)
Mounting direction
5 (5 ~ 20Hz)
20 (Rise time : 10 ms min.
Pulse width: 20 ms max.)
Note 1: The outside dimensions exclude a handle protrusion of 10 mm.
