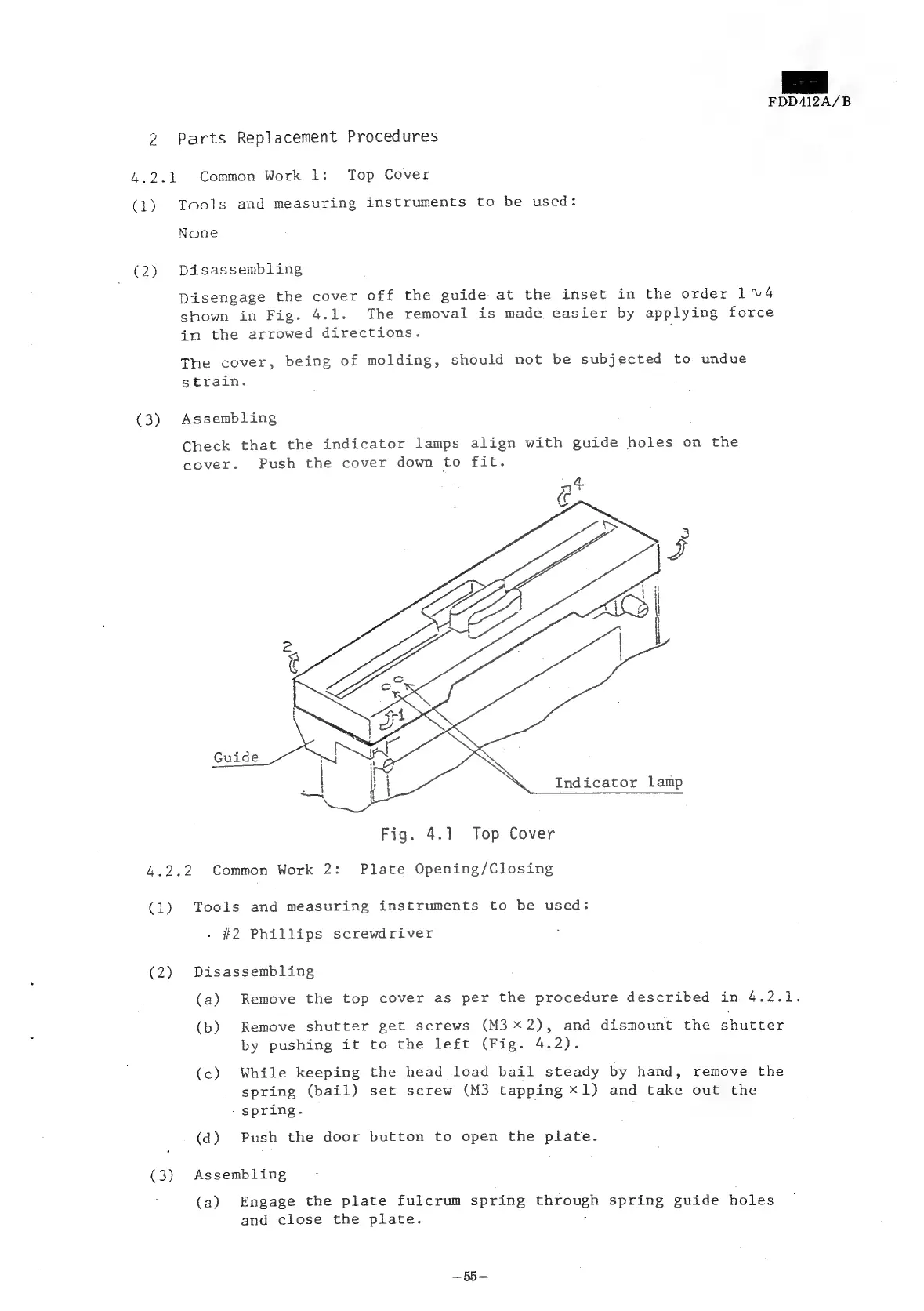

FDD412A/B

2

Parts

Replacement

Procedures

&.2.1

Common

Work

1:

Top

Cover

(1)

Tools

and

measuring

instruments

to

be

used:

None

(2)

Disassembling

Disengage

the

cover

off

the

guide

at

the

inset

in

the

order

1%4

shown

in

Fig.

4.1.

The

removal

is

made

easier

by

applying

force

in

the

arrowed

directions.

ss

The

cover,

being

of

molding,

should

not

be

subjected

to

undue

strain.

(3)

Assembling

Check

that

the

indicator

lamps

align

with

guide

holes

on

the

cover.

Push

the

cover

down

to

fit.

Indicator

lamp

Fig.

4.1

Top

Cover

4.2.2

Common

Work

2:

Plate

Opening/Closing

(1)

Tools

and

measuring

instruments

to

be

used:

-

#2

Phillips

screwdriver

(2)

Disassembling

(a)

Remove

the

top

cover

as

per

the

procedure

described

in

4.2.1.

(b)

Remove

shutter

get

screws

(M32),

and

dismount

the

shutter

by

pushing

it

to

the

left

(Fig.

4.2).

(c)

While

keeping

the

head

load

bail

steady

by

hand,

remove

the

spring

(bail)

set

screw

(M3

tapping

x1)

and

take

out

the

-

spring.

(d)

Push

the

door

button

to

open

the

plate.

(3)

Assembling

(a)

Engage

the

plate

fulcrum

spring

through

spring

guide

holes

and

close

the

plate.

-
