(b)
Install
wiring
according
to
4.2.3
(wire
routing
shown
in
Fig.
4.5).
(c)
Close
the
plate
and
mount
the
top
cover.

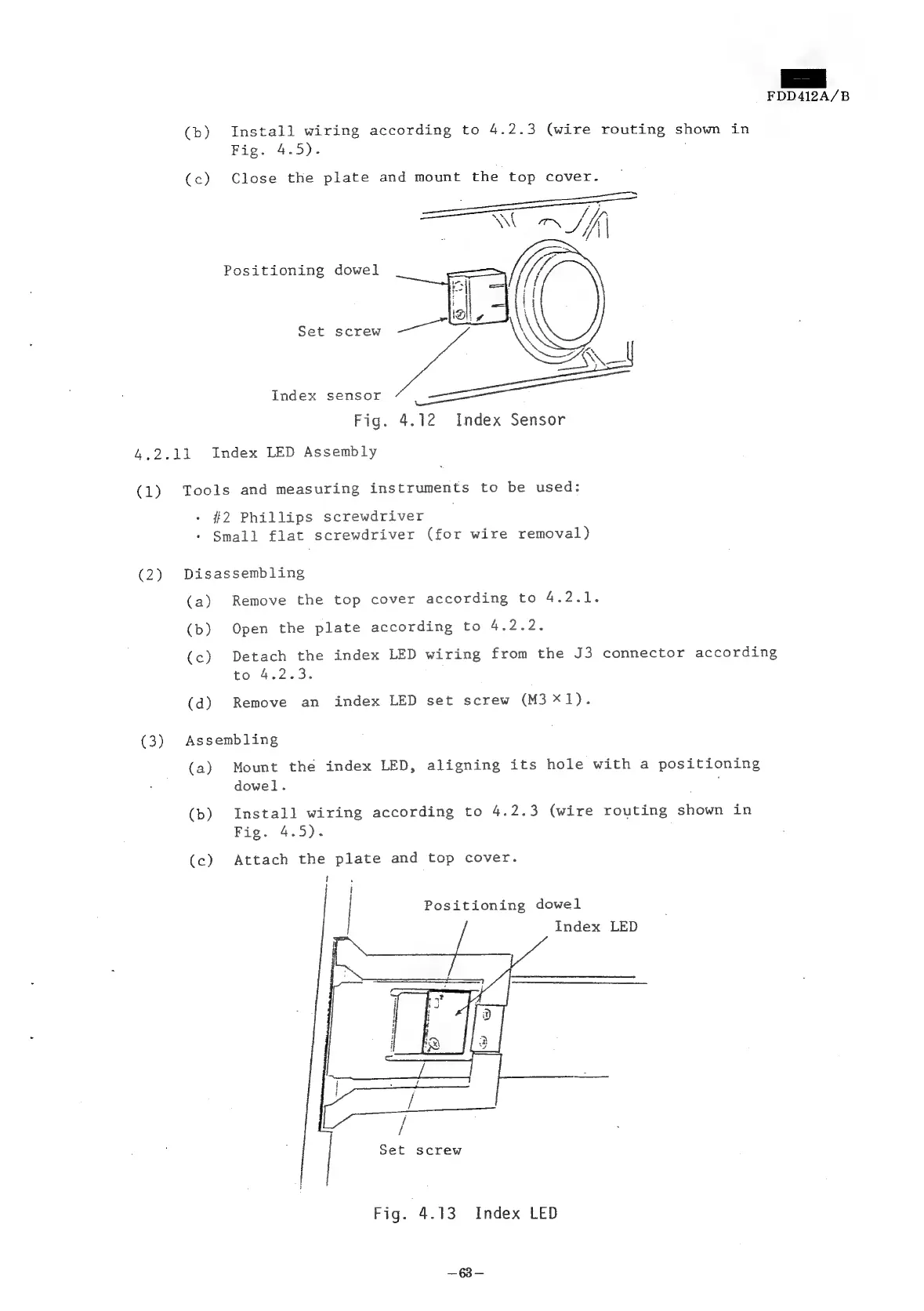

Index sensor
Fig. 4.12 Index Sensor
4,2.11
Index
LED
Assembly
(1)
Tools
and
measuring
instruments
to
be
used:
#2
Phillips
screwdriver
.
Small
flat
screwdriver
(for
wire
removal)
(2)
Disassembling
(a)
Remove
the
top
cover
according
to
4.2.1.
(b)
Open
the
plate
according
to
4.2.2.
(c)
Detach
the
index
LED
wiring
from
the
J3
connector
according
to
4.2.3.
(d)
Remove
an
index
LED
set
screw
(M3
x1).
(3)
Assembling
(a)
Mount
the
index
LED,
aligning
its
hole
with
a
positioning
dowel.
:
(b)
Install
wiring
according
to
4.2.3
(wire
routing
shown
in
Fig.
4.5).
(c)
Attach
the
plate
and
top
cover.
f
Positioning dowel
Index LED
vi
| Set screw
Fig. 4.13 Index LED
