FDD412A/B
Bail stopper
Set screw
Spring
Resin bush
Rotating shaft

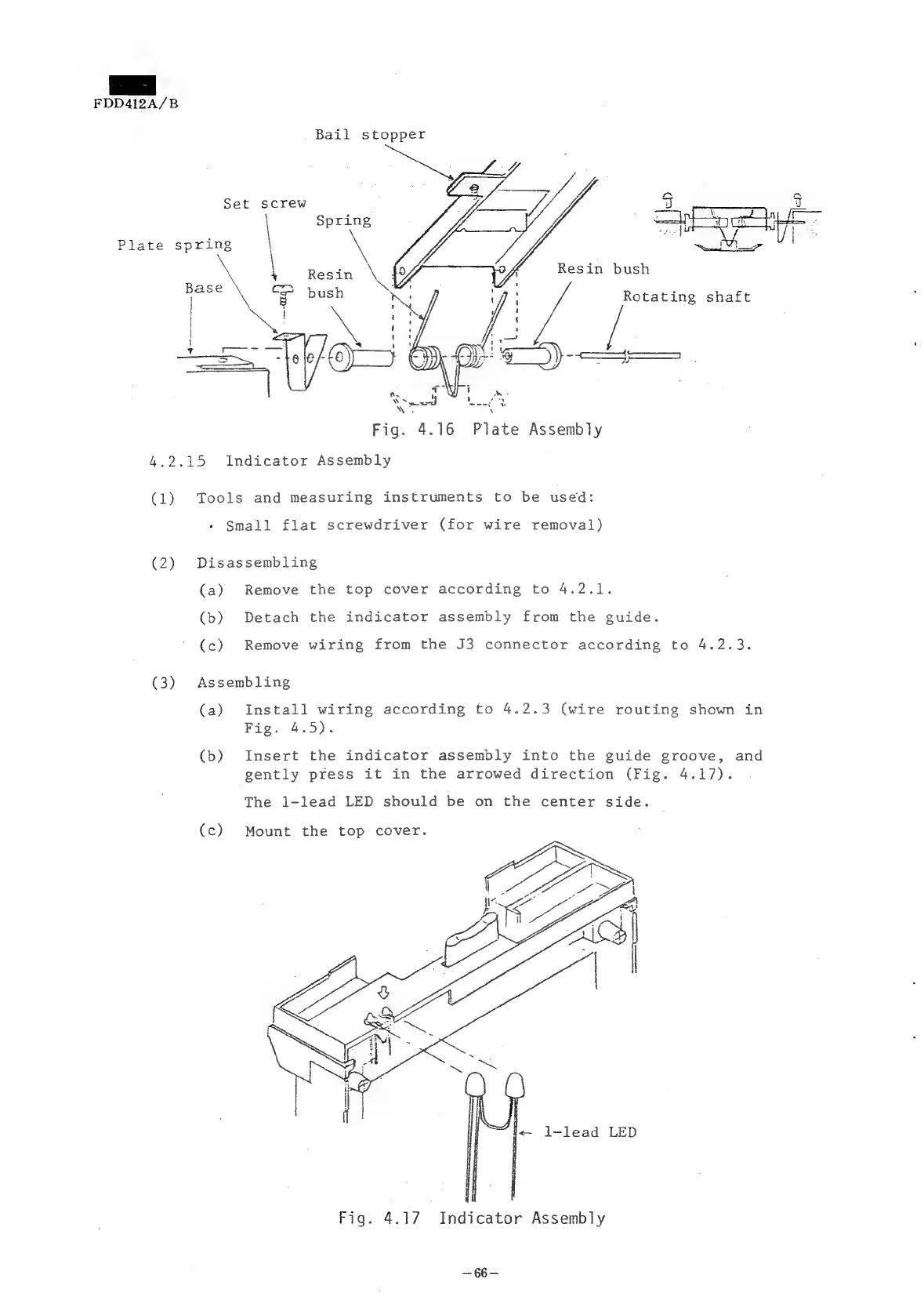

Fig. 4.16 Plate Assembly
4.2.15 Indicator Assembly
(1) Tools and measuring instruments to be used:
Small flat screwdriver (for wire removal)
(2) Disassembling
(a) Remove the top cover according to 4.2.1.
(b) Detach the indicator assembly from the guide.
(c) Remove wiring from the J3 connector according to 4.2.3.
(3) Assembling
(a) Install wiring according to 4.2.3 (wire routing shown in
Fig. 4.5).
(b) Insert the indicator assembly into the guide groove, and
gently press it in the arrowed direction (Fig. 4.17).
The l-lead LED should be on the center side.
(c) Mount the top cover.
< l-lead LED
Fig. 4.17 Indicator Assembly
= 665
