Sharp LC-20VSG - Headstock Tilting Adjustments (20 VS Series)

`OPERATOR’S MANUAL
P 9 / 57
5、 Tilting of headstock 20VS 20VSG 20VHS

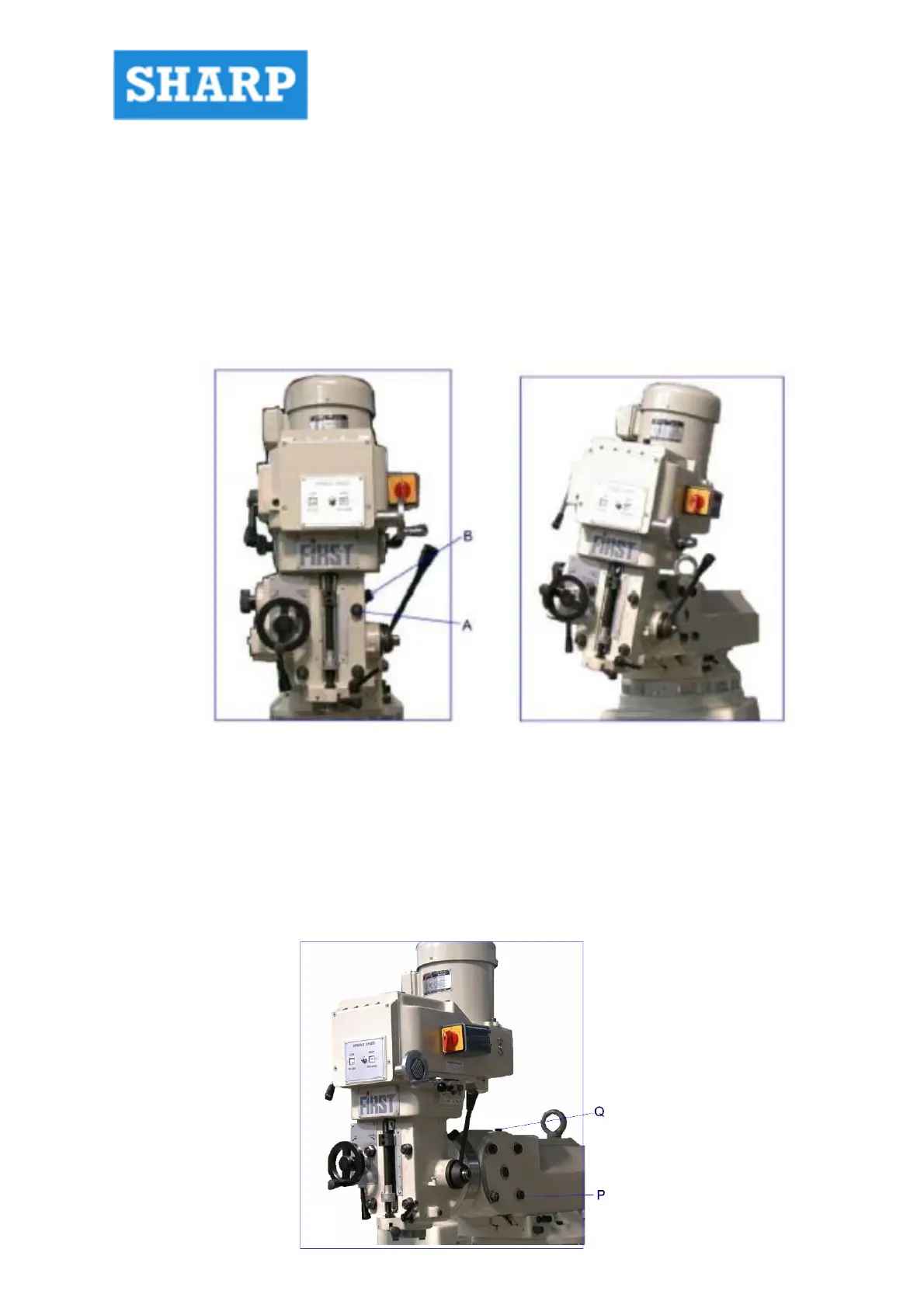

Cross tilting (Fig 6)
a. Draw out 2 zero position securing taper pins.
b. Loosen 4 lock nuts ( A ).
c. Turn the worm shaft ( B ) so as to tilt the head stock to the desired position.
d.
Lock up 4 lock nuts ( A ) evenly.
FIG.6 FIG.7
6、 Headstock Tilting : 20VS 20VSG 20VHS
In-and-Out Tilting (Fig 8) :
Turn loose evenly the eight adapter locking bolt ( P Both sides ) and turn the vertical
adjusting worm shaft ( Q ) until the angle desired is obtained. Lock up bolts ( P Both
side )tightly.
Note : Do not loosen all the headstock bolts totally.
FIG.8
