3. Adjustment of work table gib:
Work table gib ( C ) is attached between saddle and work table dovetail.
a. Loosen the setting lever ( A ).
b. Clean the slideway and add the lubricant.
c. Use a screwdriver to adjust the big bolts ( B ) on left and right sides of the saddle.
d. Method of Adjustment: If the Long feed handwheel is felt too loose by turning, loosen the
adjusting bolt on the right side of the saddle a little bit. Then, lock up the adjusting bolt on
the left side before turning the handwheel again. If the handwheel is too tight, just reverse
the steps repeatedly until the work table sliding is satisfactority smooth.
e. Replace the eccessive worn-out gibs whenever it is necessary.

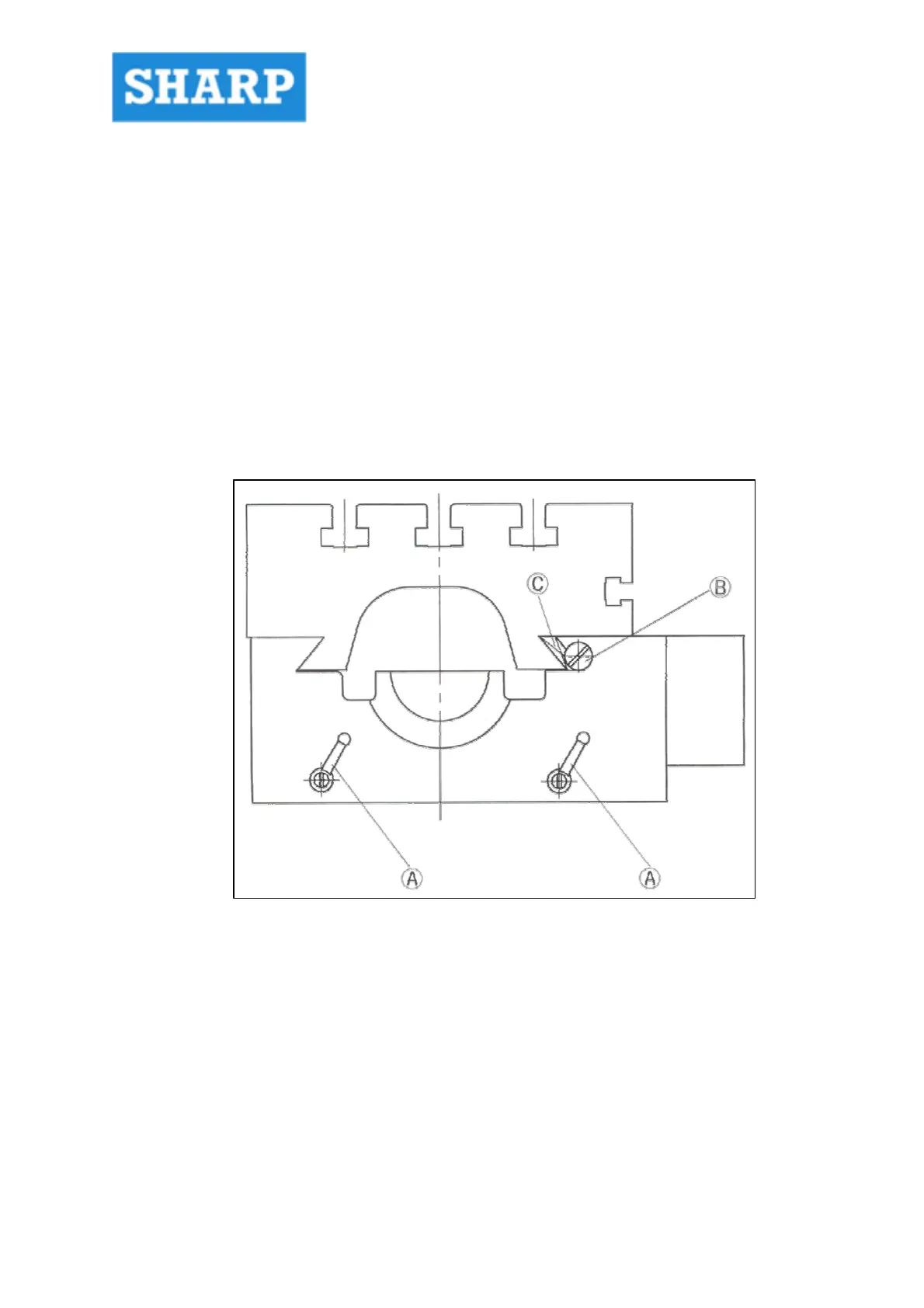

Fig.46
