OPERATOR’S MANUAL
P 47 / 57

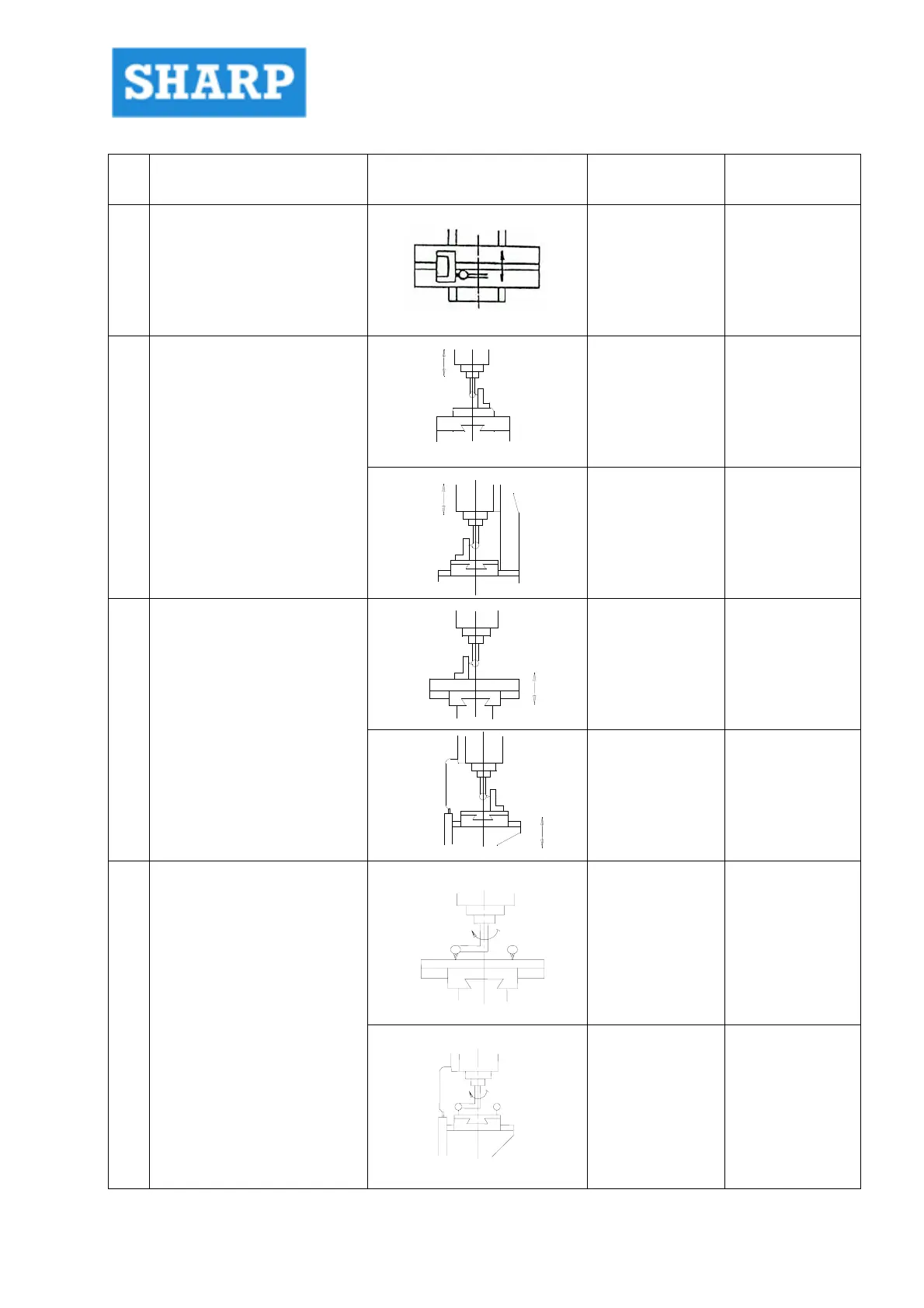

NO. INSPECTION ITEMS ILLUSTRATUION
TOLERANCE
mm
Measured
mm
8
SQUARENESS OF CROSS
MOVE MENT OF TABLE
WITH MIDDLE T-SLOT
0.02/300
9
SQUARENESS OF
VERTICAL MOVEMENT OF
SPINDLE HEAD WITH
TABLE SURFACE
LONGITUDINAL DIRECTION
CROSS DIRECTION
(HIGH AT FRONT OF
TABLE)
0.025/300
0.025/300
10
SQUARENESS OF TABLE
SURFACE WITH VERTICAL
MOVEMENT OF KNEE
LONGITUDINAL DIRECTION
CROSS DIRECTION
(HIGH AT FRONT OF
TABLE)
0.02/300
0.02/300
11
SQUARENESS OF TABLE
TOP WITH VERTICAL
SPINDLE
LONGITUDINAL DIRECTION
CROSS DIRECTION
(HIGH AT FRONT OF
TABLE)
0.02/300
0.02/300
