55
LC-32LD145
LC-39LD145
47

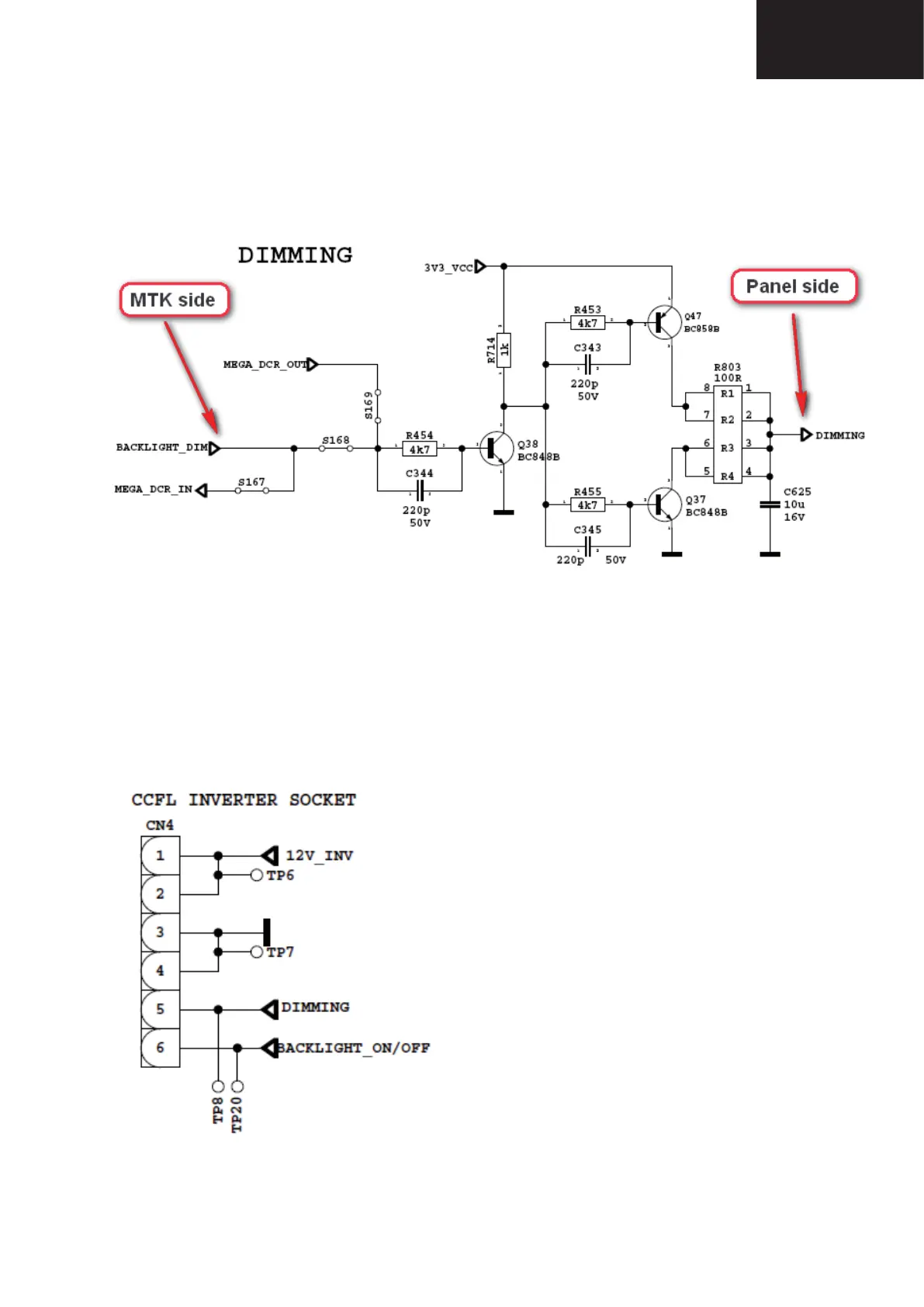

Dimming pin should be high or square wave in open position. If it is low, please check S16
for Mstar side and panel or power cables, connectors.
Backlight power supply should be in panel specs. Please check CN4 for MB82, related
connectors for power supply cards.
